Detailed Specifications

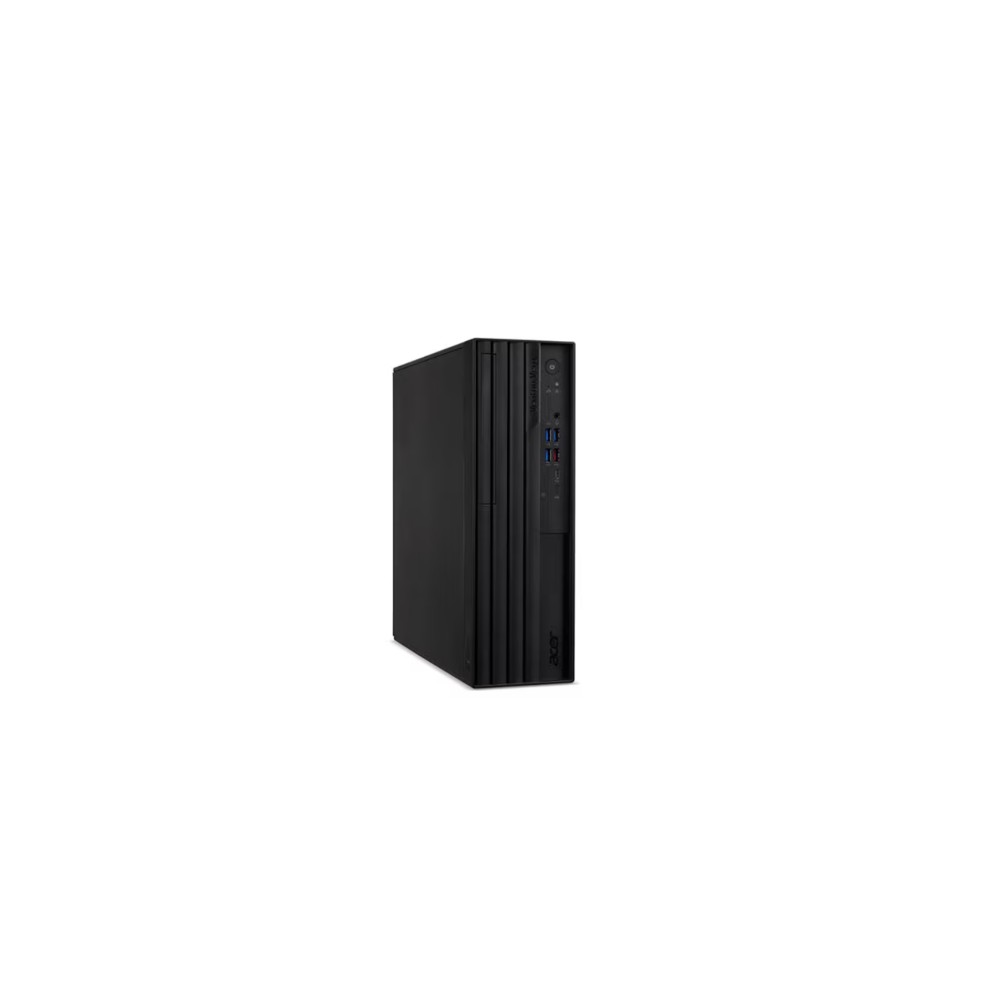

ACER DT.R2NAA.001 Veriton Vero Desktop Computer X4 VVX4720GT-I516G5
Overview :
The Acer DT.R2NAA.001 (Model VVX4720GT-I516G5) is a commercial-grade, small form factor (SFF) compact tower desktop computer engineered for corporate offices, business workstations, and decentralized enterprise fleets. It resolves space-allocation friction in compact workspaces while offering true local multitasking power by combining an efficient 14th Generation Intel Core i5 processor with expandable DDR5 system memory and versatile multi-display connectivity.
This desktop computer is driven by an Intel Core i5-14400 deca-core processor (6 Performance cores and 4 Efficient cores) featuring 20 MB of Intel Smart Cache and a maximum turbo frequency up to 4.70 GHz. Built on the Intel B760 chipset, the processing architecture is paired with 16 GB of high-speed DDR5 system memory (expandable up to 128 GB across 4 DIMM slots) and a 512 GB PCIe NVMe 4.0 M.2 solid-state drive for responsive local indexing. The hardware includes integrated Intel UHD Graphics 730, a physical 9.0mm slim tray-load 8X DVD±RW optical drive, a front-facing media card reader, and an advanced wireless matrix backed by Intel Wi-Fi 6E and a Gigabit Ethernet port.
Deployment targets include corporate administrative cubicles, client interaction desks, medical reception hubs, and secure operational branches. The compact Vero tower features sustainable construction elements utilizing post-consumer recycled (PCR) plastics, meets TCO Certified 9.0 compliance standards, and integrates a discrete Trusted Platform Module (TPM 2.0) chip for hardware-level data encryption. The system ships complete with a standard wired enterprise USB keyboard and mouse combo.
The unit natively supports deep multitasking across Windows 11 Pro business platforms, real-time cloud inventory tools, large financial spreadsheets, and remote terminal connections using modern VDI client bridges. It is not engineered for technical deployment paths requiring high-draw multi-GPU setups or specialized large-scale internal mechanical server drive arrays.
Key Features :
14th Gen Intel Core i5-14400 10-core CPU handles daily corporate apps reliably.
16 GB DDR5 system memory supports smooth application switching and multi-tab workflows.
512 GB PCIe 4.0 NVMe M.2 SSD ensures fast boot sequences and quick file access.
Built-in 8X DVD SuperMulti optical drive reads and archives legacy physical data media.
Multi-video output layout (HDMI, twin DisplayPorts, and VGA) drives extensive monitor arrays.
Specifications :
| Attribute | Specification |
| Brand | ACER |
| Part Number | DT.R2NAA.001 |
| Product Type | Desktop Computer |
| Product Line | Acer Veriton |
| Product Series | Veriton Vero X4 / 4000 Series |
| Product Model | VVX4720GT-I516G5 |
| Processor | Intel Core i5-14400 (14th Gen, 10 Cores, 16 Threads, 2.50 GHz Base, up to 4.70 GHz, 20 MB Cache) |
| Motherboard Chipset | Intel B760 Chipset Architecture |
| System Memory | 16 GB DDR5 SDRAM (Configured as 2 x 8 GB, Max 128 GB Supported, 4 x DIMM Slots) |
| Storage Capacity | 512 GB PCIe NVMe 4.0 M.2 Solid State Drive |
| Optical Media Drive | 8X DVD SuperMulti Drive (Slim 9.0mm Tray-Load, M-DISC Ready) |
| Operating System | Windows 11 Pro (64-bit Commercial Deployment Edition) |
| Graphics Controller | Intel UHD Graphics 730 ( Shared System Memory Allocation) |
| Front I/O Interfaces | 3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x Headphone/Microphone Combo, 1 x SD Card Reader |
| Rear I/O Interfaces | 4 x USB 2.0 Type-A, 1 x USB 3.2 Gen 2 Type-A, 1 x Gigabit Ethernet (RJ-45), Audio In, Audio Out |
| Video Connectivity | 2 x DisplayPort Outputs, 1 x HDMI Output, 1 x VGA Port |
| Expansion Slots | 2 x PCIe x16 Slots (One wired at x4), 1 x PCIe x1 Slot, 1 x Legacy PCI Slot, 3 x M.2 Interfaces |
| Wireless Technology | Intel Wi-Fi 6E AX211 (802.11ax) Wireless LAN + Bluetooth 5.3 or above |
| Embedded Security | Trusted Platform Module (TPM) v2.0 Encryption Chip, Kensington Lock Slot |
| Audio Components | Integrated High-Definition Audio with 5.1-Channel Surround Sound Support |
| Hardware Accessories | Wired USB Business Keyboard and Wired Optical USB Mouse Included |
| Sustainability Metric | TCO Certified 9.0 Compliant, Eco-Conscious Vero Materials Build |
| Power Description | 300 W High-Efficiency Power Supply Unit (80 PLUS Platinum Certified) |
