Detailed Specifications

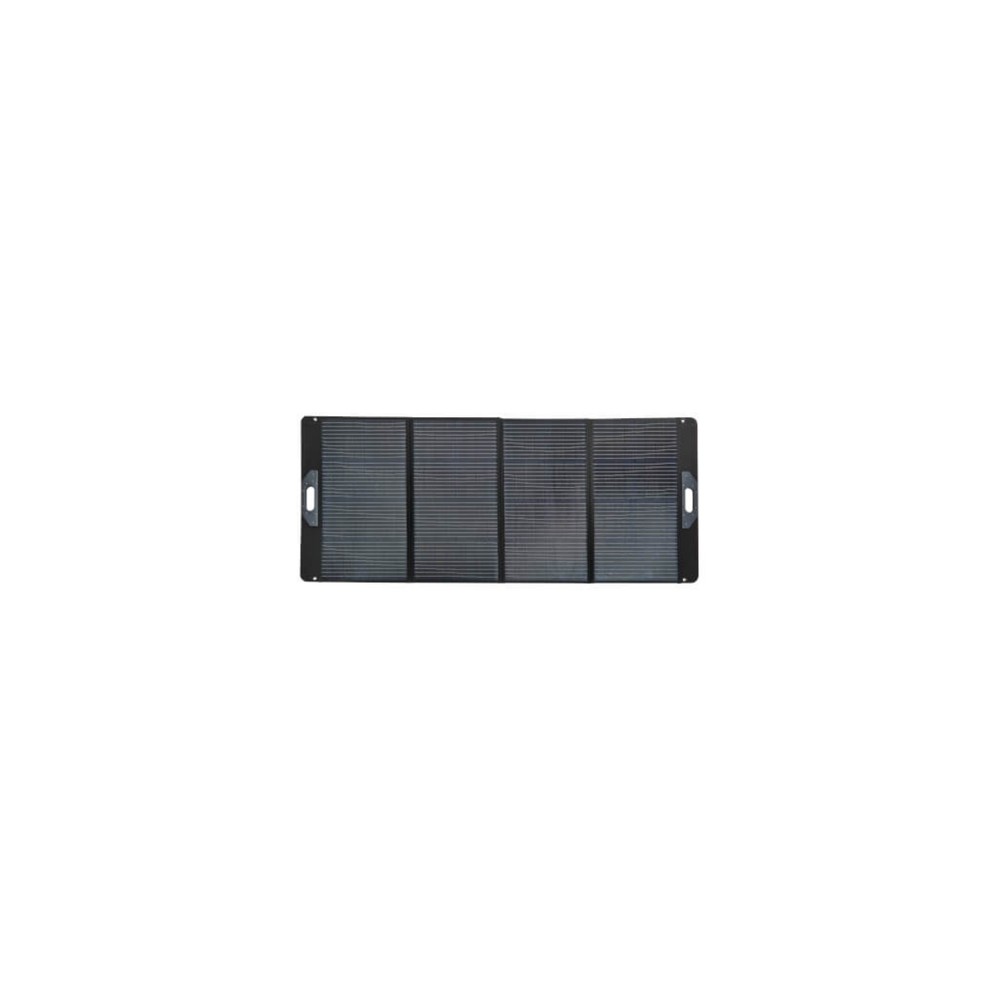

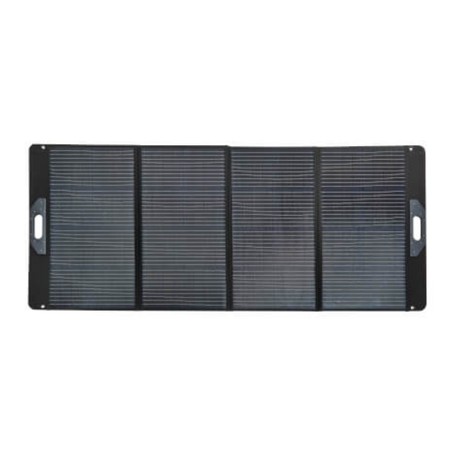

Eaton SC-G0220M Foldable Portable Solar Panel
Overview
The Eaton SC-G0220M is a portable 220W foldable solar panel designed for Eaton portable lithium-ion power stations, including the GC1800L and GC3000L platforms. It provides off-grid DC charging for temporary power deployments where utility access is unavailable or unreliable.
The panel uses ETFE-laminated solar cells with up to 23.4% efficiency and supports rapid charging through a 20V maximum power output with 11A current delivery. Its IP66-rated enclosure and foldable four-panel design support outdoor use across construction sites, edge deployments, field operations, broadcast locations, mobile service fleets, and temporary IT installations.
Built-in kickstands allow angle adjustment for optimized solar capture, while integrated handles simplify transport between staging areas and deployment locations. The included output cable connects directly to compatible Eaton portable power stations without additional adapters.
This model is suited for mobile charging and temporary backup applications where portability and weather resistance are priorities. It is not intended for permanent rooftop installation, fixed-array solar infrastructure, or high-voltage commercial solar systems.
Key Features
- 220W output for portable power station charging
- IP66-rated enclosure for outdoor field operation
- Foldable 4-panel design for transport efficiency
- ETFE solar cells with up to 23.4% efficiency
- Adjustable kickstands optimize solar collection
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SC-G0220M |
| Product Type | Foldable Portable Solar Panel |
| Peak Power Output | 200-220W |
| Voltage at Max Power (Vmp) | 20V |
| Current at Max Power (Imp) | 11A |
| Open Circuit Voltage (Voc) | 23.4V |
| Short Circuit Current (Isc) | 14.64A |
| Solar Cell Lamination | ETFE |
| Cell Efficiency | Up to 23.4% |
| Ingress Protection | IP66 |
| Operating Temperature | 14°F to 149°F (-10°C to 65°C) |
| Folding Configuration | 4-panel foldable |
| Compatible Systems | Eaton GC1800L, GC3000L |
| Warranty | 2-Year Limited Warranty |
