Overview

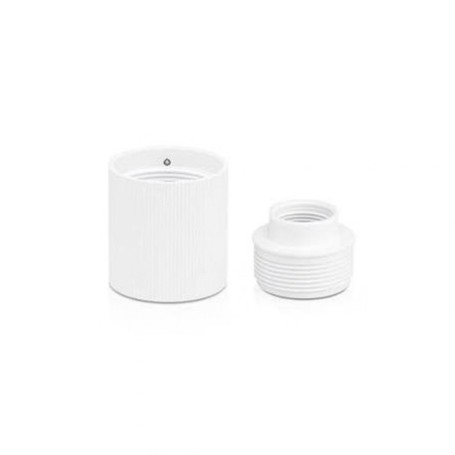

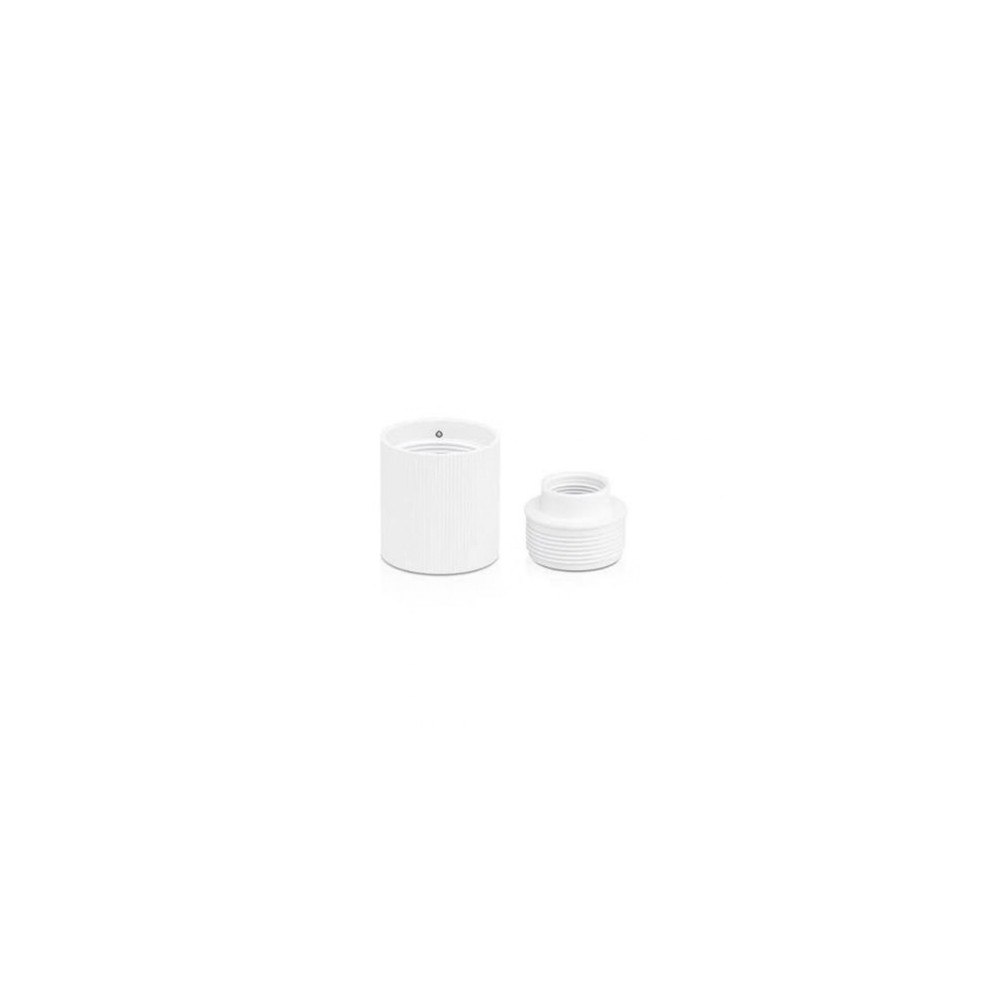

The Ubiquiti UVC-G3-F-PENDANT is a UniFi Flex Pendant Mount designed for compatible G3 Flex and G5 Flex cameras. It provides an upside-down pendant mounting configuration and supports both 3/4-inch NPS and 1.5–11.5 NPS mounting connections.
The UVC-G3-F-PENDANT provides an alternative installation method for compatible UniFi Flex cameras when pendant-style or overhead mounting is required. The accessory is designed specifically around the Flex camera form factor and allows the camera to be installed upside down.
Compatibility
Ubiquiti identifies the UVC-G3-F-PENDANT as a pendant mount accessory for G3 Flex and G5 Flex cameras. The mount supports 3/4-inch NPS and 1.5–11.5 NPS mounting connections. The camera itself is not part of this accessory.
Mounting
The pendant mount supports upside-down camera installation. Its mounting interface accommodates 3/4-inch NPS as well as 1.5–11.5 NPS connections, providing flexibility for pendant-style installations using compatible threaded hardware.
Construction and Environment
The mount is constructed from polycarbonate. Ubiquiti specifies dimensions of 2.7 × 2.4 × 2.1 inches and a weight of approximately 0.115 lb. The specified ambient operating temperature is -4 to 104 °F, with 20–90% noncondensing operating humidity.
Key Features
- Pendant mounting accessory for G3 Flex and G5 Flex cameras
- Supports upside-down camera installation
- Supports 3/4-inch NPS mounting connections
- Supports 1.5–11.5 NPS mounting connections
- Polycarbonate construction
Applications
The UVC-G3-F-PENDANT is intended for overhead and pendant installations of compatible UniFi Flex cameras. It can be used where a camera needs to hang from a compatible threaded mounting point rather than being installed directly on a wall or flat surface.
DC Supplies Product Note
This MPN is the single-unit Flex Pendant Mount. Ubiquiti also offers a separate three-pack variant, UVC-G3-F-PENDANT-3; the two part numbers should not be treated as the same package quantity.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G3-F-PENDANT |
| Product Type | Flex Pendant Mount |
| Series | UniFi |
| Compatible Cameras | G3 Flex, G5 Flex |
| Mounting Type | Pendant |
| Installation Orientation | Upside-down mounting |
| Thread Support | 3/4 in NPS; 1.5–11.5 NPS |
| Enclosure Material | Polycarbonate |
| Dimensions | 2.7 × 2.4 × 2.1 in |
| Weight | 0.115 lb |
| Operating Temperature | -4 to 104 °F |
| Operating Humidity | 20–90% noncondensing |
| Package Configuration | Single unit |
FAQs
What cameras are compatible with the UVC-G3-F-PENDANT?
Ubiquiti identifies the mount for G3 Flex and G5 Flex cameras.
Can the camera be mounted upside down?
Yes. The mount is specifically designed to support upside-down installation.
What thread sizes does the pendant mount support?
It supports 3/4-inch NPS and 1.5–11.5 NPS mounting connections.
Is the camera included?
No. The UVC-G3-F-PENDANT is a mounting accessory and the compatible camera is sold separately.
