Overview

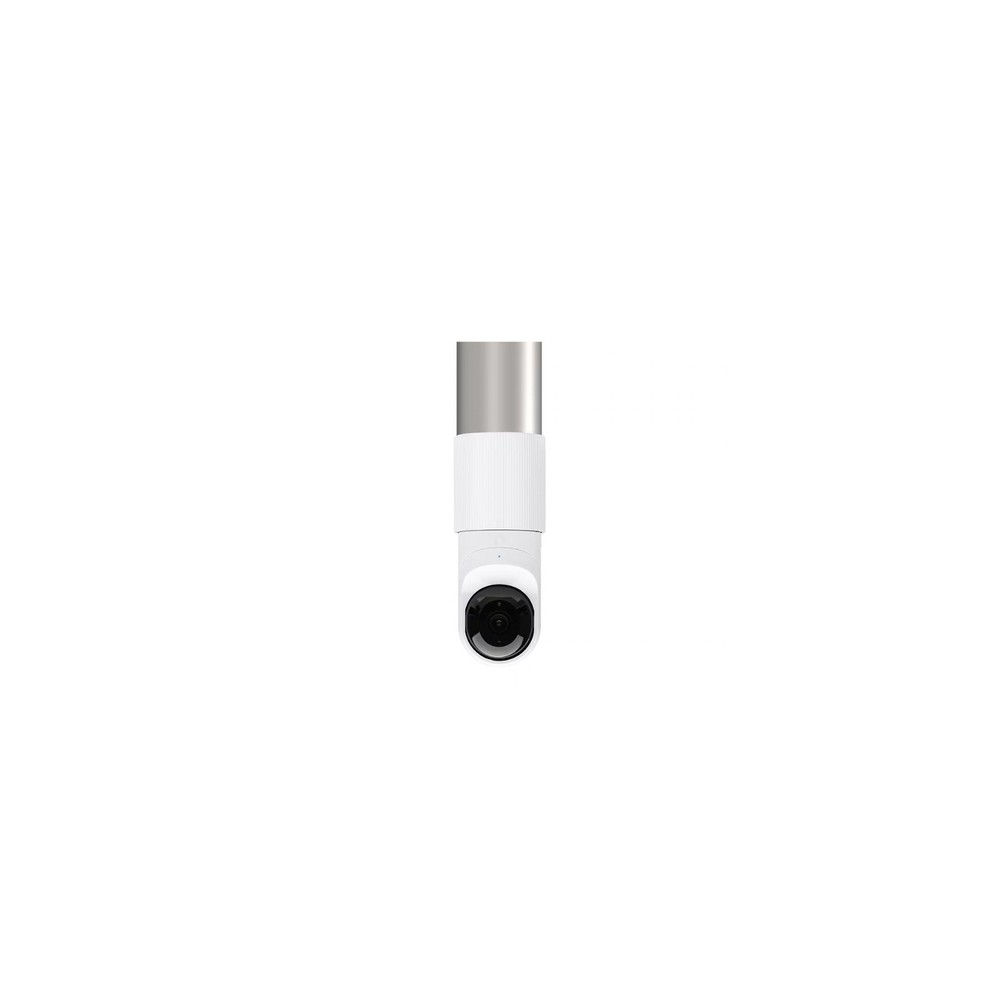

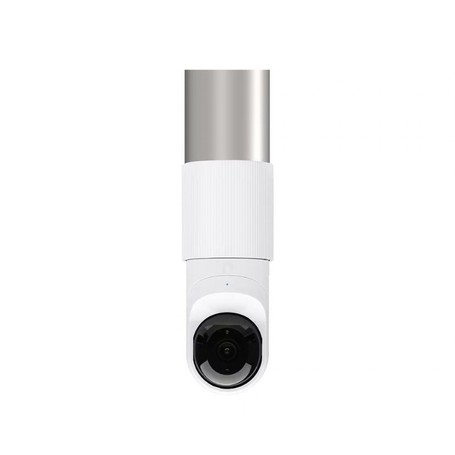

The Ubiquiti UVC-G3-F-PENDANT-3 is a three-pack of Flex Pendant Mount accessories for compatible UniFi cameras. Each mount allows a G3 Flex or G5 Flex camera to be suspended from a ceiling or other suitable pendant-mount point, including upside-down camera installation.
The mount supports standard 1.5-inch to 11.5 NPS and 3/4-inch NPS threaded conduit configurations, providing a pathway for the camera's Ethernet cable through the mounting arrangement.
Compatibility
The UVC-G3-F-PENDANT-3 is compatible with Ubiquiti G3 Flex and G5 Flex cameras. It is a mounting accessory rather than a camera, so the compatible camera is installed separately.
Mounting and Installation
The pendant mount is designed for suspended installation and supports upside-down camera positioning. Compatible 1.5-inch to 11.5 NPS or 3/4-inch NPS threaded conduit can be used with the mount. The mounting arrangement allows the Ethernet cable to be routed through the conduit for a cleaner installation.
Key Features
- Three pendant mounts included in the UVC-G3-F-PENDANT-3 pack.
- Compatible with Ubiquiti G3 Flex and G5 Flex cameras.
- Supports upside-down camera mounting.
- Supports 1.5-inch to 11.5 NPS and 3/4-inch NPS threaded conduit.
- Polycarbonate construction with a compact 67.7 × 60 × 53.6 mm form factor per mount.
Applications
The Flex Pendant Mount is intended for ceiling-suspended installations of compatible Flex cameras. It can be used when the camera needs to hang below a ceiling or conduit run rather than being installed directly against a wall or ceiling surface.
DC Supplies Product Note
UVC-G3-F-PENDANT-3 identifies the three-pack version of the Flex Pendant Mount. The underlying UVC-G3-F-PENDANT mount is also offered individually, so verify the exact suffix when ordering to ensure the required pack quantity.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G3-F-PENDANT-3 |
| Product Type | Flex Pendant Mount Accessory |
| Pack Quantity | 3 |
| Compatible Cameras | G3 Flex, G5 Flex |
| Mounting Type | Pendant mount |
| Installation Orientation | Upside-down mounting supported |
| Conduit Support | 1.5-inch to 11.5 NPS and 3/4-inch NPS |
| Enclosure Material | Polycarbonate |
| Dimensions per Mount | 67.7 × 60 × 53.6 mm (2.7 × 2.4 × 2.1 in) |
| Weight per Mount | 52 g (1.8 oz) |
| Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Operating Humidity | 20% to 90% non-condensing |
FAQs
What does the UVC-G3-F-PENDANT-3 include?
The UVC-G3-F-PENDANT-3 is the three-pack version of the Flex Pendant Mount accessory, providing three pendant mounting accessories.
Which cameras can use the Flex Pendant Mount?
The mount is designed for Ubiquiti G3 Flex and G5 Flex cameras.
Can the camera be installed upside down?
Yes. The Flex Pendant Mount supports upside-down mounting of compatible cameras.
What conduit sizes are supported?
The mount supports 1.5-inch to 11.5 NPS and 3/4-inch NPS threaded conduit configurations.
Is a camera included with this product?
No. UVC-G3-F-PENDANT-3 is a mounting accessory pack. The compatible G3 Flex or G5 Flex camera is purchased separately.
