Detailed Specifications

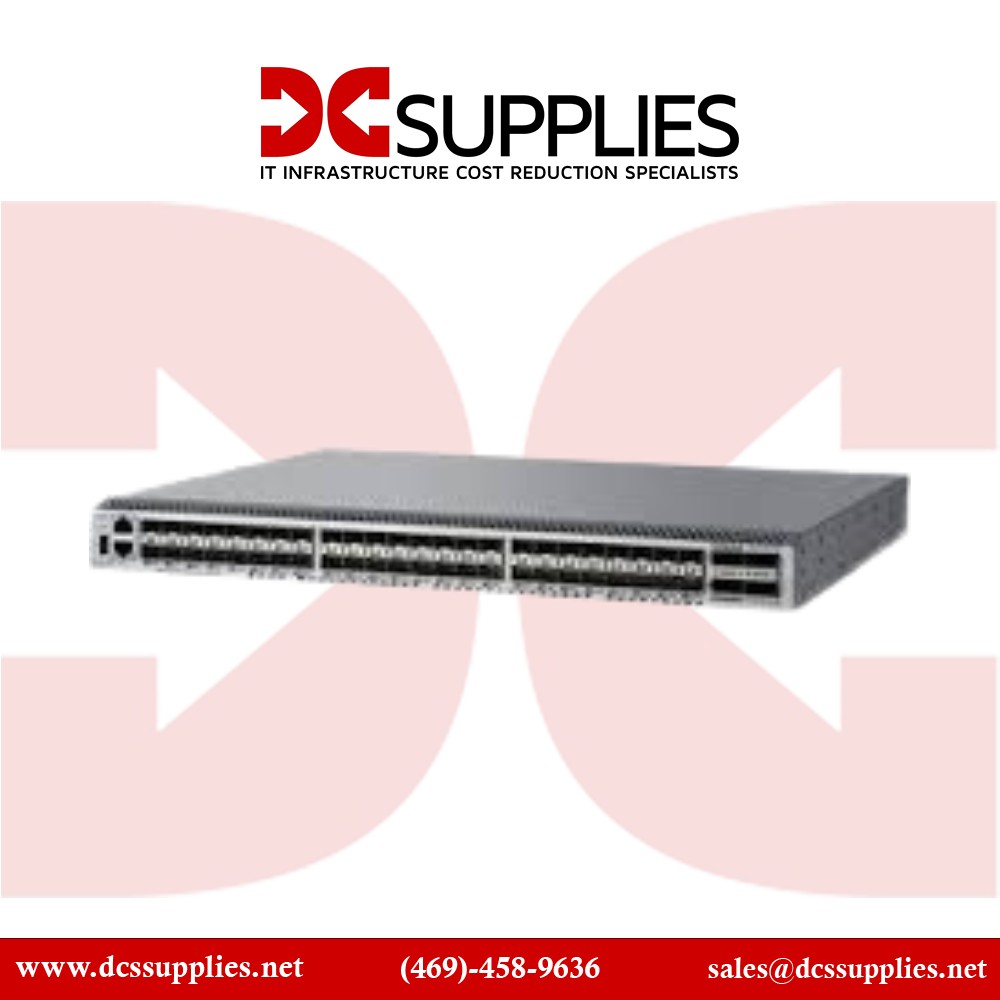

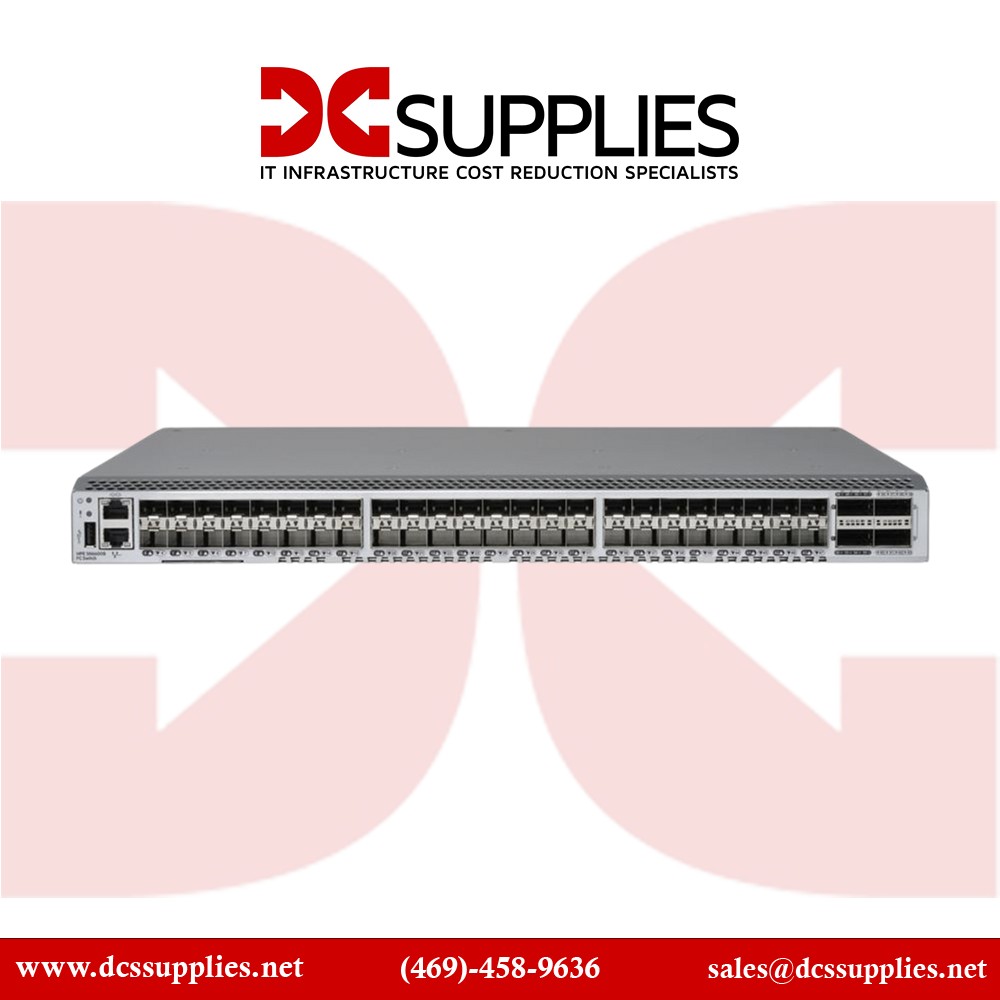

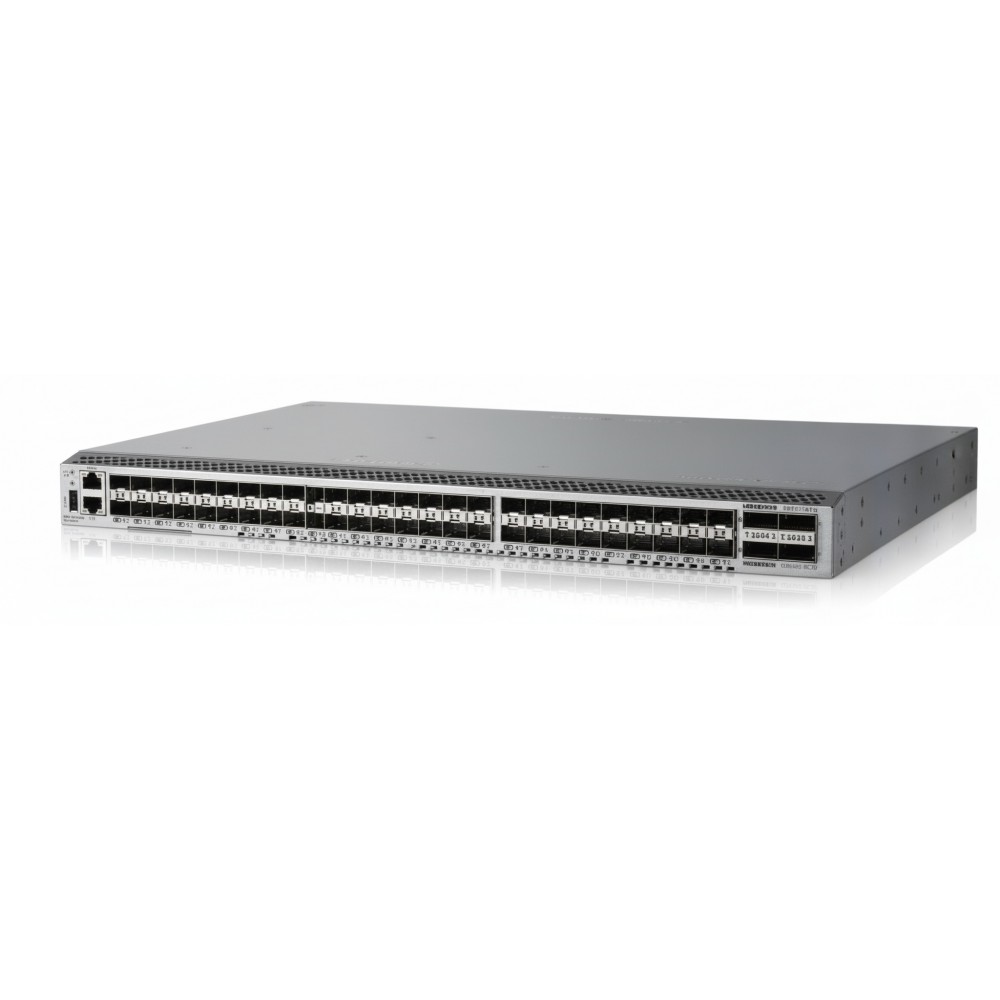

HPE Q0U55B StoreFabric SN6600B 32 Gb Fibre Channel Switch
Overview
The HPE Q0U55B is a 1 RU enterprise class Fibre Channel switch optimized for storage area networks and engineered for high-density flash and virtualised storage environments. This model supports 32 Gbps port speeds and comes as a "48/24" configuration, meaning 24 ports enabled initially with expansion capability up to 48 active ports via licence. The "Power Pack+" edition includes advanced software features such as ISL trunking, Extended Fabric and Fabric Vision for monitoring and diagnostics. With an aggregate bandwidth of up to 2 Tbps and port-to-port latency around 700 ns, the switch supports low-latency, high-throughput block-storage traffic. Its 1 RU rack-mount form factor with redundant hot-swappable power supplies is suitable for data-centre core environments, SAN fabrics, and high-availability storage clusters. It integrates with the broader HPE StoreFabric ecosystem, allowing unified management of FC fabrics, diagnostics and zoning workflows.
Key Features
32 Gbps Fibre Channel support in a high-density chassis
24 active ports, scalable to 48 via licence expansion
Includes Power Pack+ software: ISL trunking, Extended Fabric, Fabric Vision
2 Tbps aggregate full-duplex bandwidth, ~700 ns latency

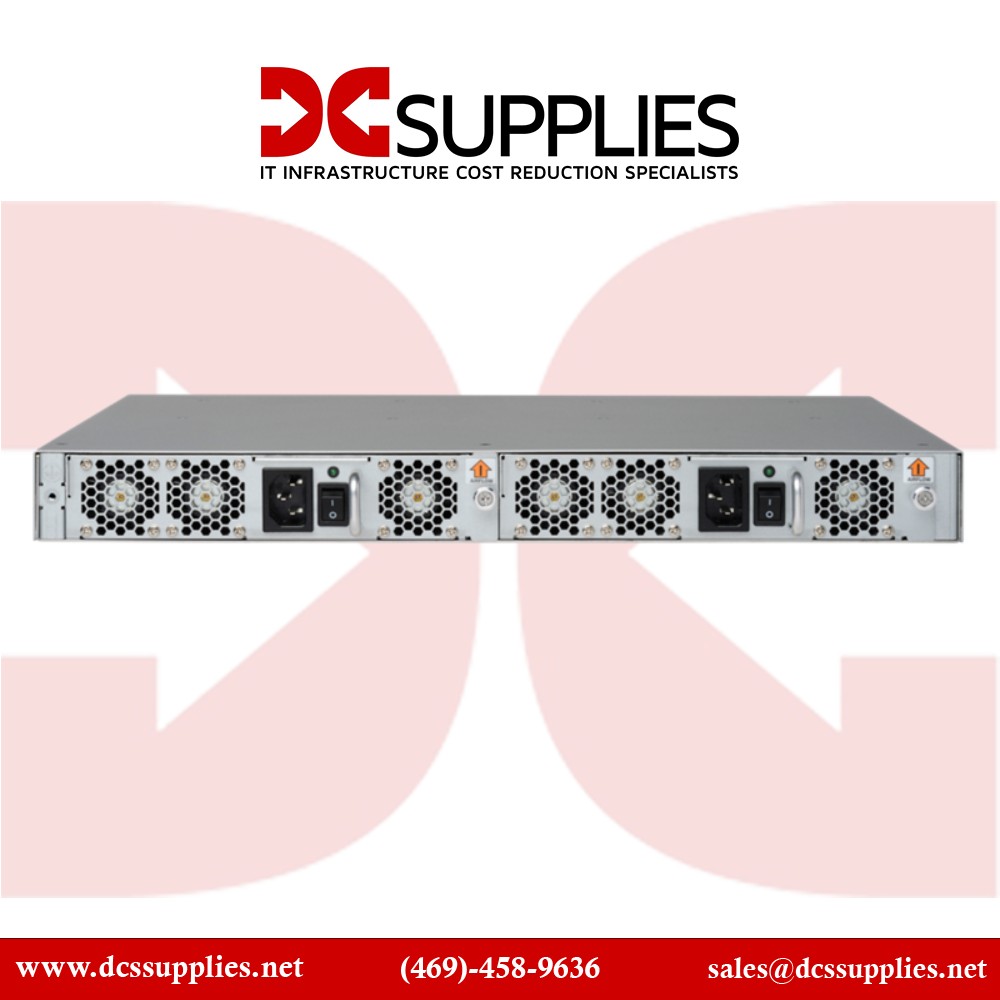

1 RU rack-mount chassis with redundant hot-swappable power supplies
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | Q0U55B |
| Product Type | StoreFabric SN6600B 32 Gb Fibre Channel Switch |
| Fibre Channel Port Speed | 32 Gbps (device ports) |
| Device Ports | 24 active (expandable to 48) |
| Aggregate Bandwidth | Up to 2 Tbps full-duplex |
| Latency | Approx. 700 ns |
| Maximum Frame Size | Up to 2,112 bytes |
| Form Factor (H × W × D) | Approx. 1.72 in × 17.2 in × 24.0 in |
| Rack Units | 1 RU |
| Weight | (Not publicly verified in full spec) |
| Power Supplies | Redundant, hot-swappable dual AC units |
| Software Features | ISL Trunking, Extended Fabric, Fabric Vision included in "Power Pack+" |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Management Interfaces | RJ-45 Console, RJ-45 Ethernet management (via Fabric OS) |
| Compliance Standards | RoHS, WEEE (industry-standard) |
