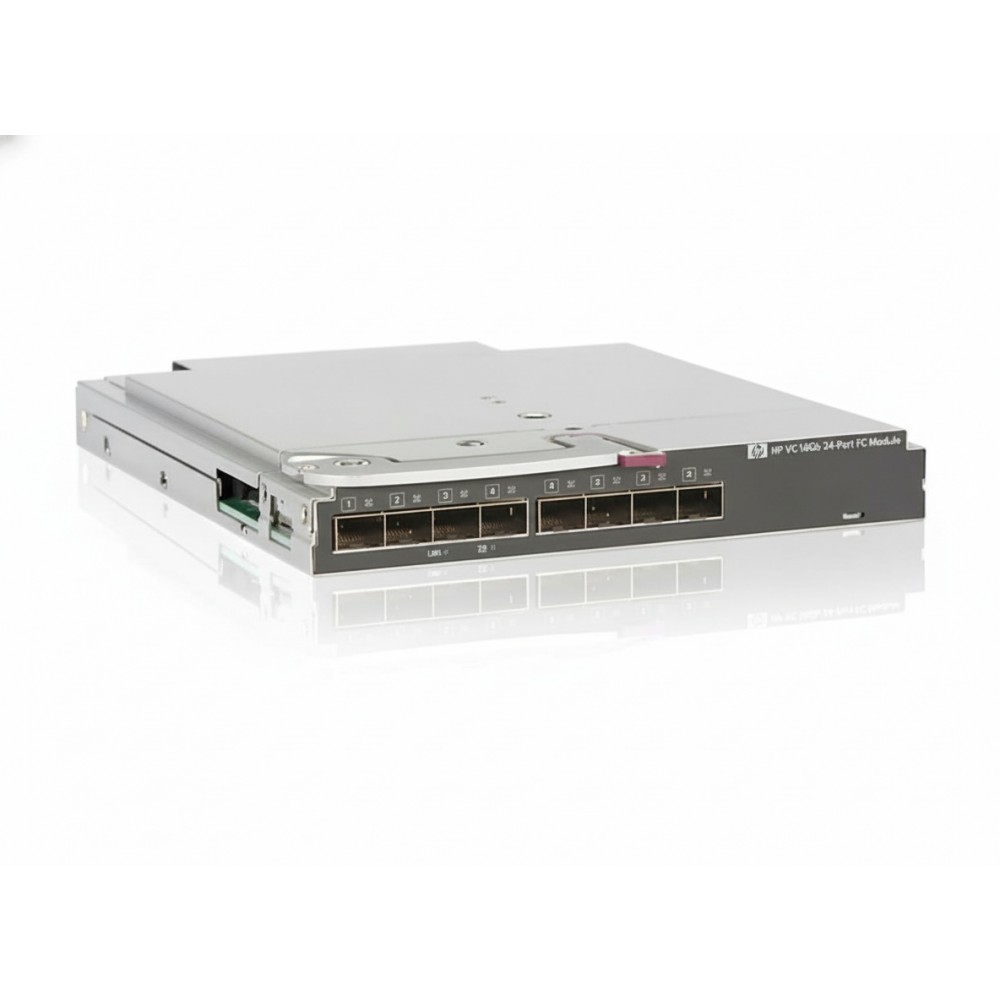

HPE 759863-001 Virtual Connect 16Gb 24-Port Fibre SAN Channel Module View larger

HPE 759863-001 Virtual Connect 16Gb 24-port Fibre Channel Module

New

16 Gb Fibre Channel 24‑port Virtual Connect module

×




  • New
  • Refurbished

Detailed Specifications

HPE 759863‑001 Virtual Connect 16 Gb 24‑Port Fibre Channel Module

Overview

The HPE 759863‑001 is a 24‑port 16 Gb Fibre Channel switch module designed for HPE BladeSystem c‑Class enclosures. It provides high‑speed SAN connectivity with both uplink and downlink ports optimized for storage traffic consolidation in blade environments. It reduces cabling complexity by virtualising SAN connections for server‑to‑storage communication without needing a separate external FC switch. This module integrates with HPE’s Virtual Connect Manager for simplified provisioning and fabric management.

Key Features

  • 24 × 16 Gb Fibre Channel ports (8 uplink + 16 downlink)

  • Plug‑in Virtual Connect module for HPE c-Class BladeSystem

  • Fabric latency of ~700 ns for low-latency SAN traffic

  • Supports large-frame Fibre Channel (max frame size 2148 bytes)

  • High aggregate bandwidth for SAN consolidation

Technical Specifications

SpecificationDetails
BrandHPE
Part Number759863‑001
Product TypeVirtual Connect Fibre Channel Module
Fibre Channel Speed16 Gb/s per port
Number of Ports24
Uplink Ports8 × 16 Gb/s SFP+
Downlink Ports16 × 16 Gb/s internal FC
Aggregate Bandwidth768 Gb/s
Throughput128 Gb/s
Fabric Latency~700 ns
Maximum Fibre Channel Frame2148 bytes
Supported FC ProtocolsFC-AL, FC-FG, FC-PH, FC-GS, FC-VI, etc.
Form FactorPlug-in module for blade enclosure
Compatible EnvironmentsHPE BladeSystem c-Class
Weight~3.3 lbs
Power(Not publicly disclosed)
Operating TemperatureStandard blade module environment
