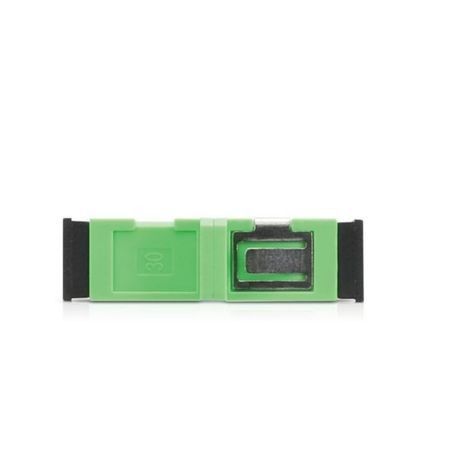

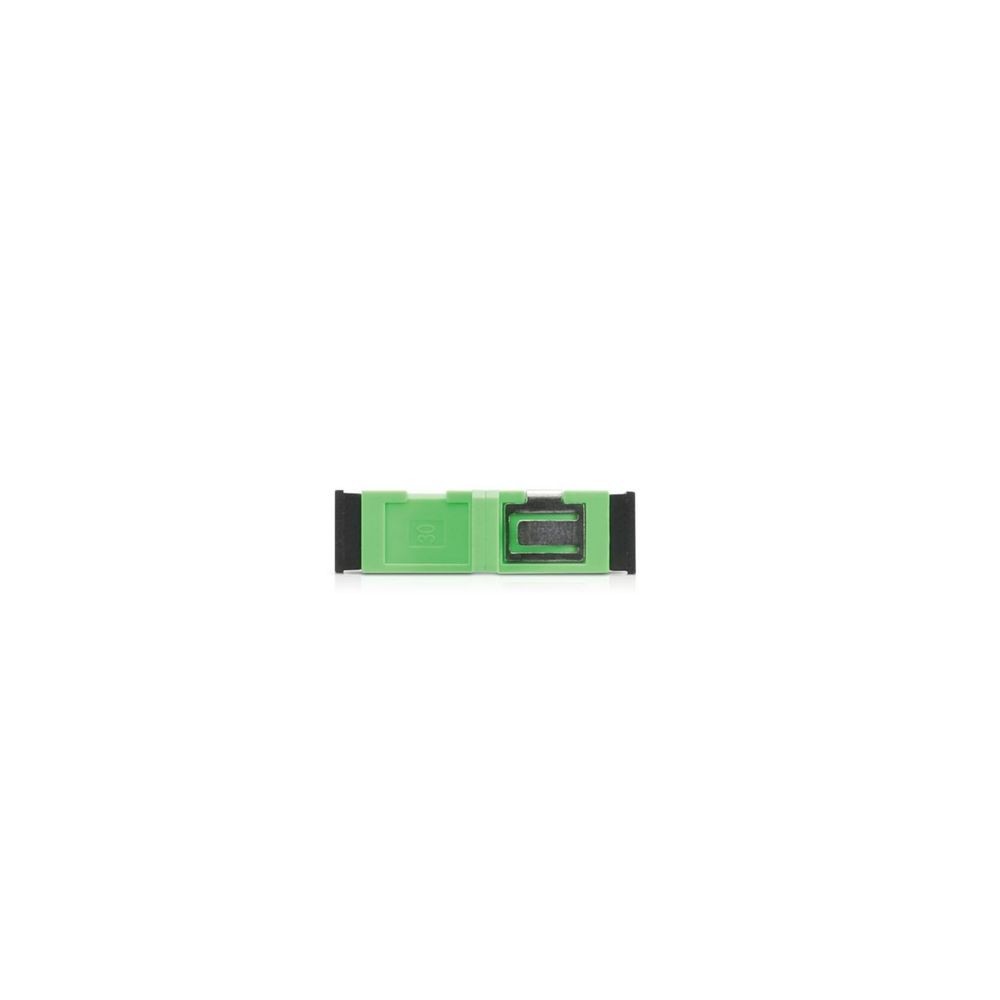

Ubiquiti UACC-OADP-SC-APC-50 Fiber APC Adapter SC/APC 50-Pack
Overview
The Ubiquiti UACC-OADP-SC-APC-50 is a fiber optic adapter designed to connect two cables with SC/APC-type connectors. The product is supplied as a 50-pack and is specified for single-mode fiber connections. Ubiquiti specifies insertion loss of ≤0.2 dB and a compact adapter size of 27.5 × 12.9 × 9.2 mm.
Connectivity
The adapter provides an SC/APC connection interface for joining compatible SC/APC fiber cables. Its single-mode application and APC connector geometry make it suitable for fiber infrastructure requiring SC/APC-to-SC/APC coupling.
Performance and Durability
Ubiquiti specifies insertion loss of ≤0.2 dB. Durability is specified as less than 0.2 dB typical change after 1,000 mating cycles, providing a defined performance characteristic for repeated connector mating.
Key Features
- SC/APC fiber optic adapter
- Designed to connect two SC/APC-type cables
- Single-mode fiber application
- ≤0.2 dB specified insertion loss
- 50 adapters per package
Applications
The UACC-OADP-SC-APC-50 is intended for fiber installations requiring SC/APC coupling between compatible single-mode cables. The 50-pack format is suited to network infrastructure deployments requiring multiple fiber adapter connections.
DC Supplies Product Note
Confirm that both fiber cables use compatible SC/APC connectors before deployment. This adapter is specified for SC/APC connections; it should not be treated as a universal adapter for SC/UPC or other connector types.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OADP-SC-APC-50 |
| Product Type | Fiber Optic Adapter |
| Adapter Type | Fiber optic |
| Connector Type | SC/APC |
| Connection | SC/APC to SC/APC |
| Fiber Type | Single-mode |
| Insertion Loss | ≤0.2 dB |
| Durability | <0.2 dB typical change after 1,000 matings |
| Pack Type | 50-pack |
| Dimensions | 27.5 × 12.9 × 9.2 mm (1.08 × 0.5 × 0.36") |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Compliance | Telcordia, ANSI, TIA/EIA, NTT, JIS |
| NDAA Compliant | Yes |
Frequently Asked Questions
What does the UACC-OADP-SC-APC-50 connect?
It connects two cables equipped with SC/APC-type fiber connectors.
Is this adapter for single-mode fiber?
Yes. Ubiquiti specifies the adapter for single-mode fiber applications.
What is the specified insertion loss?
The specified insertion loss is ≤0.2 dB.
How many adapters are included?
The UACC-OADP-SC-APC-50 is supplied as a 50-pack.
How durable is the adapter?
Ubiquiti specifies less than 0.2 dB typical change after 1,000 mating cycles.
What operating temperature range is specified?
The specified ambient operating temperature range is -40 to 85°C (-40 to 185°F).
