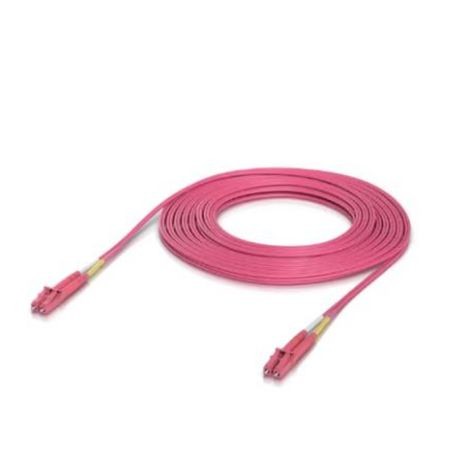

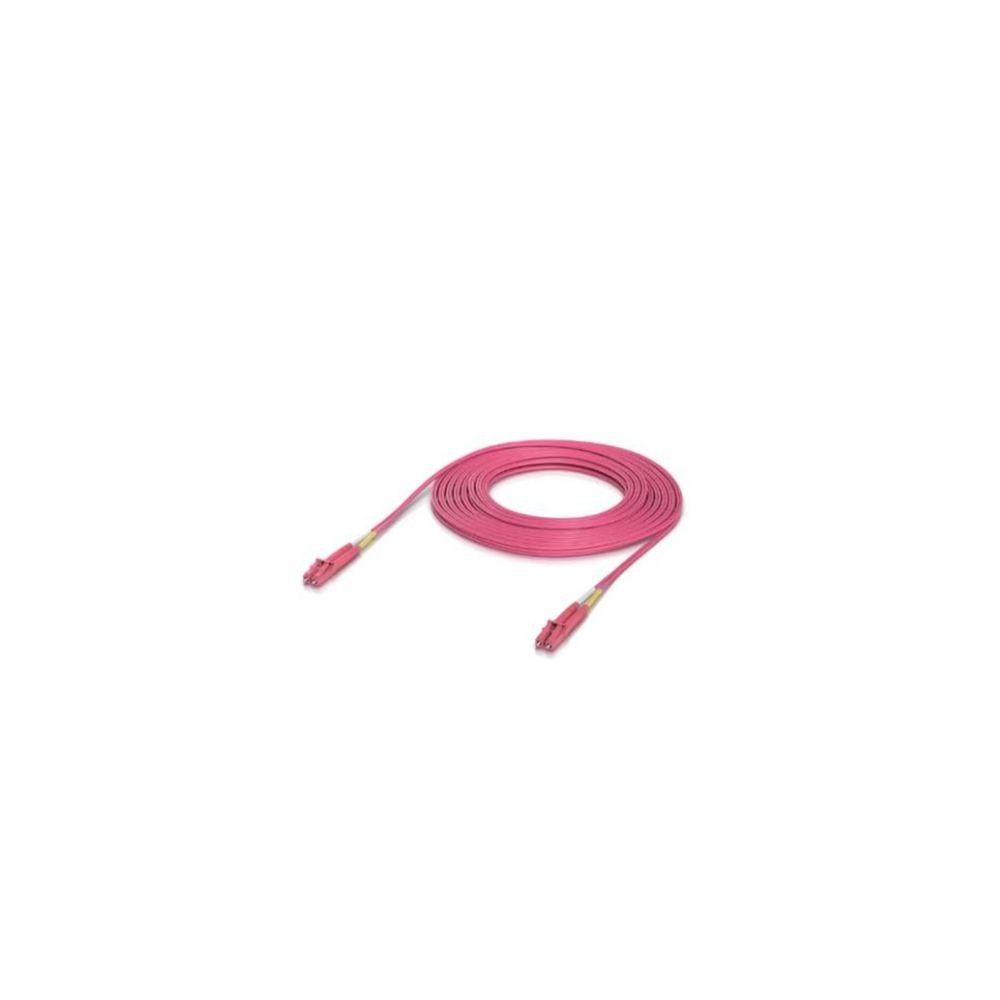

Ubiquiti UACC-OFC-M2-LULU-10M 10m OM4 Duplex LC UPC Fiber Patch Cable
Overview
The Ubiquiti UACC-OFC-M2-LULU-10M is a 10 m OM4 multimode duplex fiber patch cable with duplex LC UPC connectors. It is designed for indoor optical network interconnects where compatible equipment uses duplex LC UPC interfaces.
Fiber and Connectivity
The cable uses OM4 multimode fiber with duplex LC UPC termination and supports 850/1300 nm wavelengths. Ubiquiti specifies an insertion loss of ≤0.3 dB and return loss of ≥35 dB.
Cable Construction
The UACC-OFC-M2-LULU-10M uses a 2 mm low-smoke zero-halogen (LSZH) jacket with a rose finish. It is specified for indoor operation and supports an ambient operating temperature range of -40 to 75°C (-40 to 167°F).
Key Features
- 10 m OM4 multimode duplex fiber cable
- Duplex LC UPC connectors
- 850/1300 nm operating wavelengths
- 2 mm LSZH jacket with rose finish
- ≤0.3 dB insertion loss and ≥35 dB return loss
Applications
The cable is intended for indoor optical network connections using compatible OM4 multimode equipment. It can be deployed between compatible SFP, SFP+, SFP28, QSFP, and other optical interfaces where duplex LC UPC connections and the required multimode optical characteristics are supported.
DC Supplies Product Note
Confirm that both connected optical interfaces require OM4 multimode fiber and duplex LC UPC termination before deployment. The cable does not determine the supported network speed or transmission distance; the installed optical modules and connected equipment must support the intended data rate and optical link characteristics.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-M2-LULU-10M |
| Product Type | OM4 Duplex LC UPC Fiber Patch Cable |
| Cable Length | 10 m (32.8 ft) |
| Fiber Mode | OM4 Multimode |
| Fiber Configuration | Duplex |
| Connector | Duplex LC UPC to Duplex LC UPC |
| Polish | UPC to UPC |
| Wavelength | 850/1300 nm |
| Jacket Diameter | 2 mm (0.08") |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Rose |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥35 dB |
| Repeatability | ≤0.1 dB |
| Durability | ≤0.2 dB after 1,000 mating cycles |
| Operating Environment | Indoor |
| Ambient Operating Temperature | -40 to 75°C (-40 to 167°F) |
Frequently Asked Questions
What is the UACC-OFC-M2-LULU-10M?
It is a 10 m OM4 multimode duplex fiber patch cable with duplex LC UPC connectors.
What connector type does this cable use?
The cable uses duplex LC UPC connectors at both ends.
What fiber type does it use?
It uses OM4 multimode fiber.
What wavelength does the cable support?
Ubiquiti specifies 850/1300 nm operation.
What is the insertion loss?
The specified insertion loss is ≤0.3 dB.
What length is the UACC-OFC-M2-LULU-10M?
The exact model is 10 m (32.8 ft) long.
