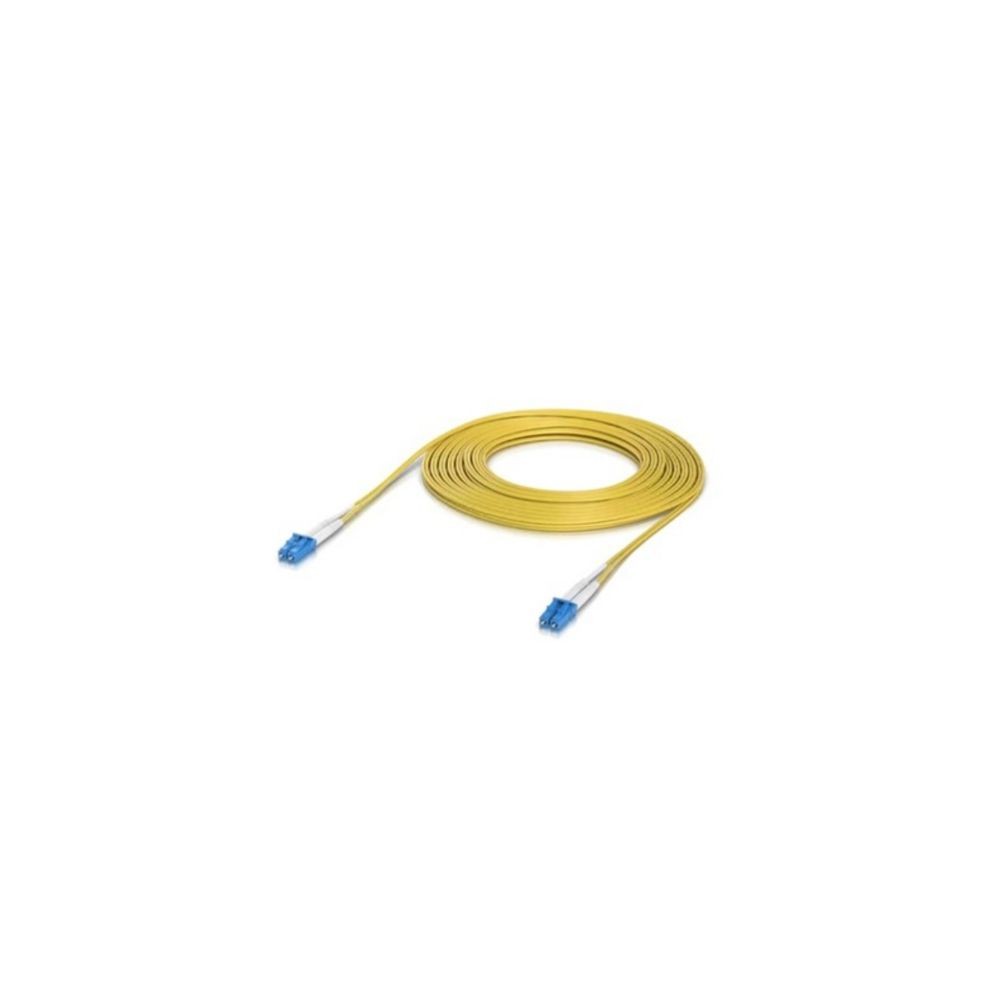

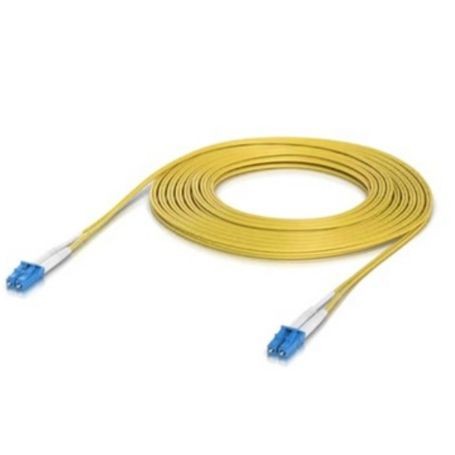

Ubiquiti UACC-OFC-S2-LULU-10M 10m OS2 Duplex LC UPC Fiber Patch Cable
Overview
The Ubiquiti UACC-OFC-S2-LULU-10M is a 10 m OS2 single-mode duplex fiber patch cable with duplex LC UPC connectors. It is designed for high-speed optical interconnects and supports connections up to 100G according to Ubiquiti's product specification.
Fiber and Connectivity
The cable uses OS2 single-mode fiber with duplex LC UPC termination and supports 1310/1550 nm wavelengths. Both connector ends use UPC polishing, with an insertion loss of ≤0.3 dB and return loss of ≥50 dB.
Cable Construction
The UACC-OFC-S2-LULU-10M uses a 2 mm diameter low-smoke zero-halogen (LSZH) jacket with a yellow finish. The cable is specified for indoor operating environments and supports an ambient operating temperature range of -40 to 75°C (-40 to 167°F).
Key Features
- 10 m OS2 single-mode duplex fiber cable
- Duplex LC UPC connectors
- Supports optical connections up to 100G
- 2 mm LSZH jacket with yellow finish
- ≤0.3 dB insertion loss and ≥50 dB return loss
Applications
The cable is intended for optical network interconnects using compatible OS2 single-mode equipment. It can be used between SFP, SFP+, SFP28, QSFP, and other compatible optical interfaces where the equipment and transceivers use duplex LC UPC connections and the required optical specifications are supported.
DC Supplies Product Note
Confirm that both connected optical interfaces require OS2 single-mode fiber and duplex LC UPC termination before deployment. The cable itself does not determine the supported network speed; the installed optical modules and connected equipment must also support the intended data rate and optical link characteristics.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-S2-LULU-10M |
| Product Type | OS2 Duplex LC UPC Fiber Patch Cable |
| Cable Length | 10 m (32.8 ft) |
| Fiber Mode | OS2 Single-Mode |
| Fiber Configuration | Duplex |
| Connector | Duplex LC UPC to Duplex LC UPC |
| Polish | UPC to UPC |
| Wavelength | 1310/1550 nm |
| Jacket Diameter | 2 mm (0.08") |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Yellow |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥50 dB |
| Repeatability | ≤0.1 dB |
| Durability | ≤0.2 dB after 1,000 mating cycles |
| Maximum Supported Connection | Up to 100G |
| Operating Environment | Indoor |
| Ambient Operating Temperature | -40 to 75°C (-40 to 167°F) |
Frequently Asked Questions
What is the UACC-OFC-S2-LULU-10M?
It is a 10 m OS2 single-mode duplex fiber patch cable with duplex LC UPC connectors.
What connector type does this cable use?
The cable uses duplex LC UPC connectors at both ends.
What fiber type does it use?
It uses OS2 single-mode fiber.
What wavelength does the cable support?
Ubiquiti specifies 1310/1550 nm operation.
What is the insertion loss?
The specified insertion loss is ≤0.3 dB.
What length is the UACC-OFC-S2-LULU-10M?
The exact model is 10 m (32.8 ft) long.
