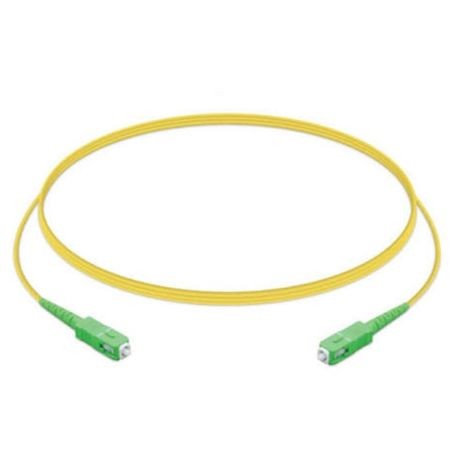

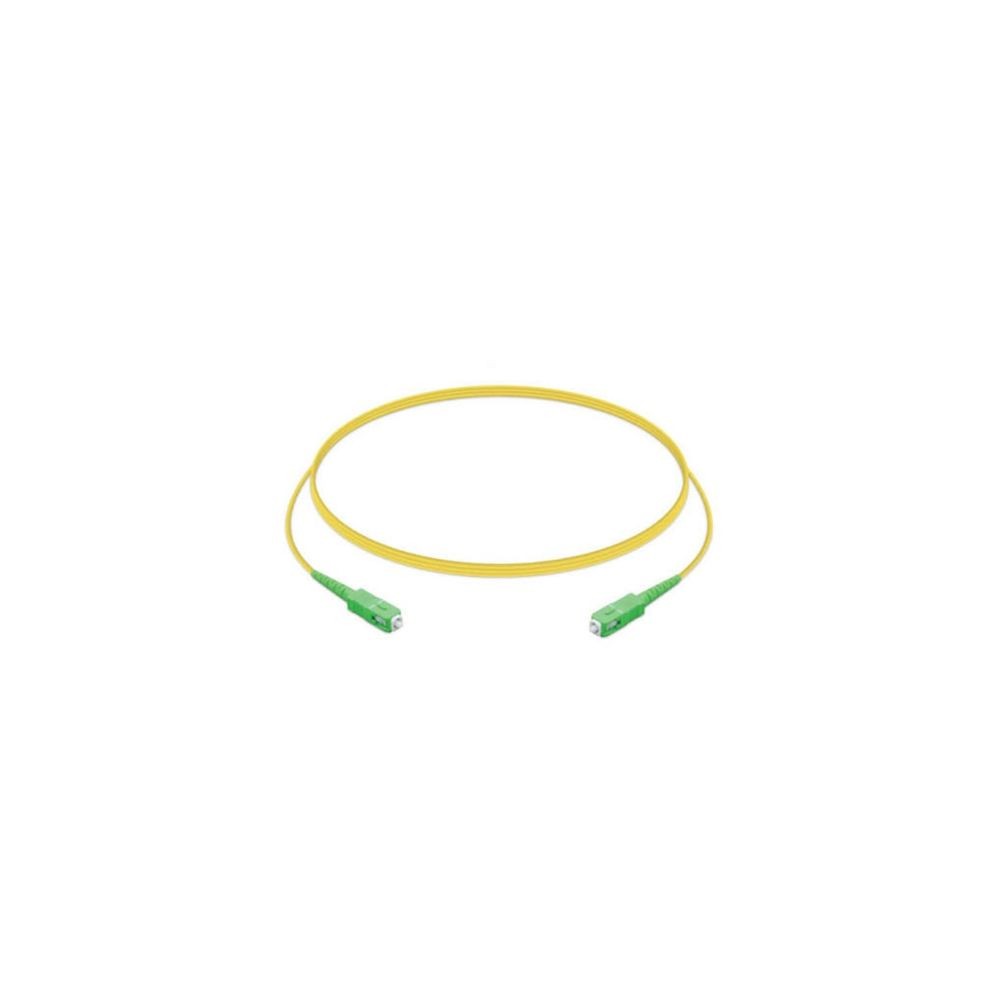

The Ubiquiti UF-SM-PATCH-APC-APC is a 1.5-meter single-mode fiber patch cable designed for GPON and other single-mode optical network connections. It uses SC/APC connectors at both ends, a 2.0 mm yellow PVC jacket, and SM9/125 single-mode fiber construction.
Optical Connectivity
Both ends of the cable use SC/APC connectors with green 2.0 mm single-mode simplex interfaces. The APC termination provides a specified return loss of at least 60 dB, while insertion loss is limited to 0.3 dB or less.
Cable Construction
The cable uses SM9/125 SX single-mode fiber with a slim 2.0 mm PVC jacket. Its 1.5-meter length provides a compact connection between compatible optical equipment, adapters, and GPON network components.
Key Features
- 1.5 m single-mode fiber patch cable
- SC/APC connectors on both ends
- SM9/125 SX single-mode fiber
- 2.0 mm yellow PVC jacket
- ≤0.3 dB insertion loss and ≥60 dB return loss
Applications
The UF-SM-PATCH-APC-APC is suitable for GPON optical connections, fiber distribution equipment, optical network termination, and short single-mode fiber interconnections requiring SC/APC termination.
DC Supplies Product Note
Both connectors use APC polishing, so this cable is intended for optical interfaces that specifically require SC/APC connections rather than SC/UPC termination.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | UF-SM-PATCH-APC-APC |
| Product Type | Single-Mode Fiber Patch Cable |
| Product Family | UFiber |
| Cable Length | 1.5 m (59.1 in) |
| Fiber Type | SM9/125 SX Single-Mode |
| Fiber Configuration | Simplex |
| Connector Type | 2 × SC/APC |
| Connector Size | 2.0 mm SM SX |
| Connector Color | Green |
| Cable Diameter | 2.0 mm (0.08 in) |
| Jacket Material | PVC |
| Jacket Color | Yellow |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB |
| Sales Unit | 1 cable |
| Compliance | RoHS, REACH |
FAQs
What connectors does the UF-SM-PATCH-APC-APC use?
It has an SC/APC connector on both ends.
What type of fiber does this cable use?
The cable uses SM9/125 SX single-mode fiber.
How long is the cable?
The cable is 1.5 meters long, equivalent to approximately 59.1 inches.
What is the insertion loss?
Ubiquiti specifies a maximum insertion loss of 0.3 dB.
What is the return loss?
The SC/APC-to-SC/APC configuration has a specified return loss of at least 60 dB.
