Overview

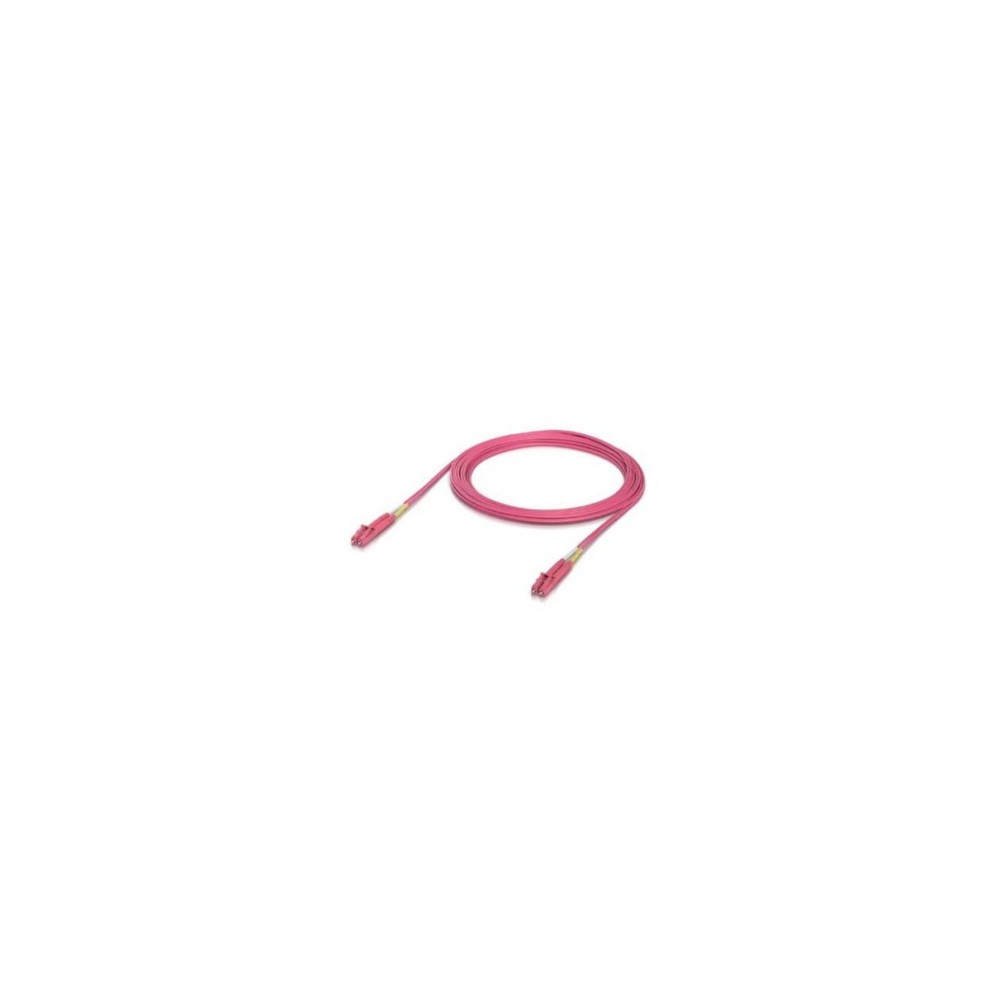

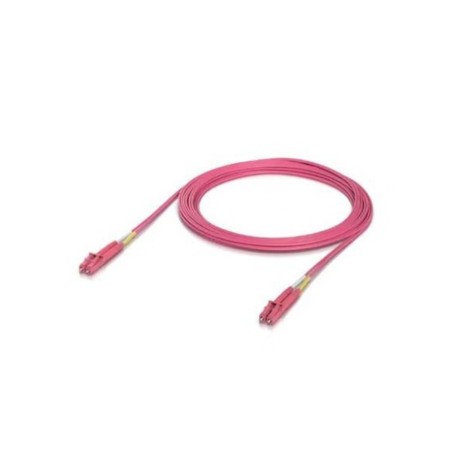

The Ubiquiti UACC-OFC-M2-LULU-5M is a 5-meter OM4 multimode fiber patch cable designed for indoor optical networking connections. It features duplex LC UPC connectors on both ends, a 2 mm low-smoke zero-halogen (LSZH) jacket, and a rose-colored outer jacket. The cable supports 850 nm and 1300 nm wavelengths and is specified for low insertion loss and high return loss.
OM4 Multimode Fiber
This patch cable uses OM4 multimode optical fiber for high-speed optical networking applications. The exact UACC-OFC-M2-LULU-5M variant provides a 5-meter cable length, while the same product family is available in multiple other lengths.
Duplex LC UPC Connections
The cable is terminated with duplex LC UPC connectors, providing separate optical paths for transmit and receive signals. Both ends use LC connectors with UPC polishing.
LSZH Cable Jacket
The 2 mm outer jacket is made from low-smoke zero-halogen (LSZH) material. The rose-colored jacket provides a visible distinction for cable identification in structured fiber installations.
Optical Performance
Ubiquiti specifies an insertion loss of no more than 0.3 dB and return loss of at least 35 dB. Repeatability is specified at no more than 0.1 dB, while durability is specified at no more than 0.2 dB after 1,000 mating cycles.
Indoor Installation
The cable is specified for indoor operation and has an ambient operating temperature range of -40°C to 75°C. Its 5-meter length is suitable for short optical interconnections between compatible fiber networking equipment or fiber termination points.
Key Features
- 5-meter OM4 multimode fiber patch cable
- Duplex LC UPC connectors on both ends
- 2 mm low-smoke zero-halogen (LSZH) jacket
- 850/1300 nm operating wavelengths
- Insertion loss of ≤ 0.3 dB and return loss of ≥ 35 dB
DC Supplies Product Note
For fiber installation planning, the UACC-OFC-M2-LULU-5M is an OM4 multimode cable with duplex LC UPC terminations, so it should be matched with compatible multimode optical ports, transceivers, or fiber termination hardware. The 5-meter length is specific to this MPN and should not be substituted with another length variant when exact cable length is required.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OFC-M2-LULU-5M |
|---|
| Product Type | OM4 Duplex Fiber Patch Cable |
|---|
| Cable Length | 5 m (16.4 ft) |
|---|
| Fiber Mode | OM4 Multimode |
|---|
| Connector Type | Duplex LC UPC |
|---|
| Connector Configuration | LC UPC to LC UPC |
|---|
| Fiber Type | Multimode |
|---|
| Jacket Diameter | 2 mm (0.08 in) |
|---|
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
| Jacket Color | Rose |
|---|
| Wavelength | 850/1300 nm |
|---|
| Insertion Loss | ≤ 0.3 dB |
|---|
| Return Loss | ≥ 35 dB |
|---|
| Repeatability | ≤ 0.1 dB |
|---|
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
|---|
| Operating Environment | Indoor |
|---|
| Operating Temperature | -40°C to 75°C |
|---|
FAQs
What type of fiber is the UACC-OFC-M2-LULU-5M?
It is an OM4 multimode fiber patch cable designed for indoor optical networking connections.
What connectors does this cable use?
The cable uses duplex LC UPC connectors on both ends.
How long is the UACC-OFC-M2-LULU-5M?
The exact MPN specifies a 5-meter cable length, equivalent to approximately 16.4 feet.
What is the jacket material?
The cable uses a 2 mm low-smoke zero-halogen (LSZH) jacket in a rose color.
What wavelengths does the cable support?
Ubiquiti specifies 850 nm and 1300 nm operating wavelengths.
Is this cable intended for outdoor installation?
No. Ubiquiti specifies the cable for indoor operation.
