Overview

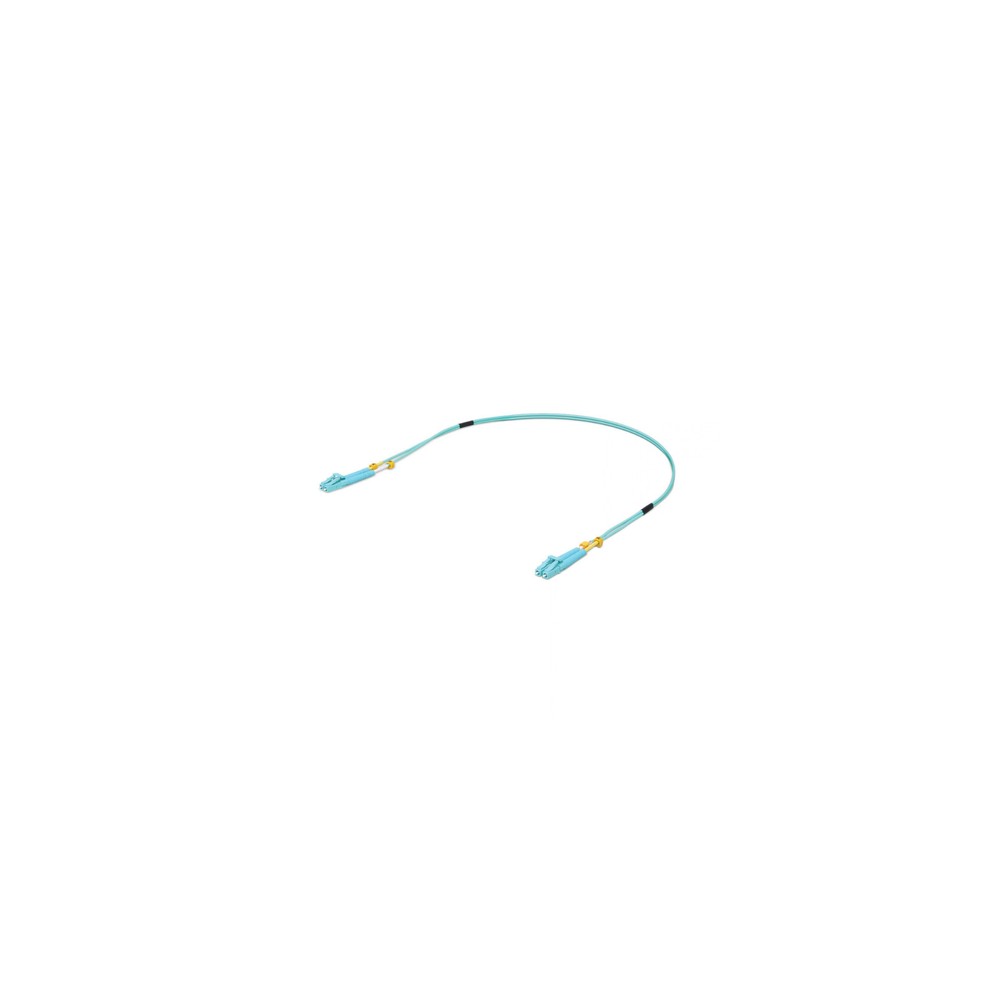

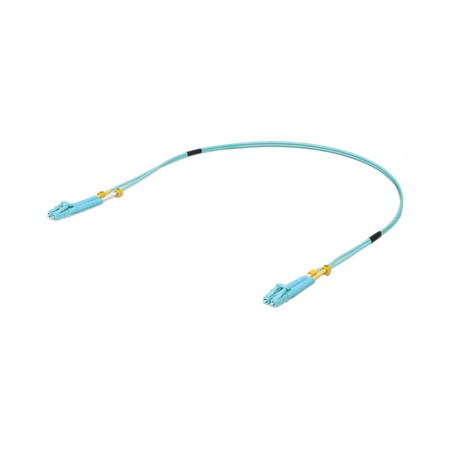

The Ubiquiti UACC-OFC-MM-0.5M is a 0.5-meter 10 Gbps OM3 Duplex LC Cable designed for short optical-fiber connections in networking environments. It uses 50/125 µm OM3 multimode fiber with LC-to-LC UPC connectors and a compact 2.0 mm PVC jacket.
Fiber and Connector Design
This duplex fiber patch cable uses two multimode optical fibers and LC-LC connectors with UPC-to-UPC polishing. The OM3 fiber construction is intended for high-speed multimode optical networking, with Ubiquiti specifying 850/1310 nm operating wavelengths.
Optical Performance
Ubiquiti specifies insertion loss of no more than 0.3 dB and repeatability of no more than 0.1 dB. The cable is rated for durability of no more than 0.2 dB after 1,000 mating cycles.
Physical Construction
The UACC-OFC-MM-0.5M has a 2.0 mm outer jacket diameter and uses a PVC jacket in aqua. Its 0.5-meter length is suited to short connections where excess fiber slack should be minimized.
Key Features
- OM3 50/125 µm multimode duplex fiber
- LC-to-LC UPC connectors
- 0.5-meter cable length
- Supports up to 10 Gbps throughput
- 2.0 mm aqua PVC jacket
Applications
The UACC-OFC-MM-0.5M is intended for short-distance optical connections between compatible LC interfaces, including network switches, optical transceivers, patch panels, and other equipment using OM3 multimode fiber. Its short length is particularly useful for compact rack and equipment interconnections.
DC Supplies Product Note
The exact UACC-OFC-MM-0.5M is the 0.5-meter version of Ubiquiti's OM3 Duplex LC Cable family. Check the MPN when ordering because the same cable family is available in multiple lengths.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-MM-0.5M |
| Product Type | Fiber Optic Patch Cable |
| Product Family | 10 Gbps OM3 Duplex LC Cable |
| Fiber Type | Multimode OM3 |
| Fiber Core / Cladding | 50/125 µm |
| Fiber Configuration | Duplex |
| Connector | LC-LC |
| Polish | UPC to UPC |
| Cable Length | 0.5 m (1.6 ft) |
| Maximum Throughput | 10 Gbps |
| Wavelength | 850 / 1310 nm |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Jacket Outer Diameter | 2.0 mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
| Ambient Operating Temperature | -40 to 75°C (-40 to 167°F) |
FAQs
What is the Ubiquiti UACC-OFC-MM-0.5M?
It is a 0.5-meter OM3 multimode duplex LC fiber patch cable rated for up to 10 Gbps throughput.
What connectors does this cable use?
The cable uses LC-to-LC connectors with UPC-to-UPC polishing.
What type of fiber is used?
The cable uses 50/125 µm OM3 multimode duplex fiber.
What is the cable length?
The exact UACC-OFC-MM-0.5M model is 0.5 meters (approximately 1.6 feet) long.
What is the jacket material?
Ubiquiti specifies a 2.0 mm PVC jacket with an aqua color.
