Overview

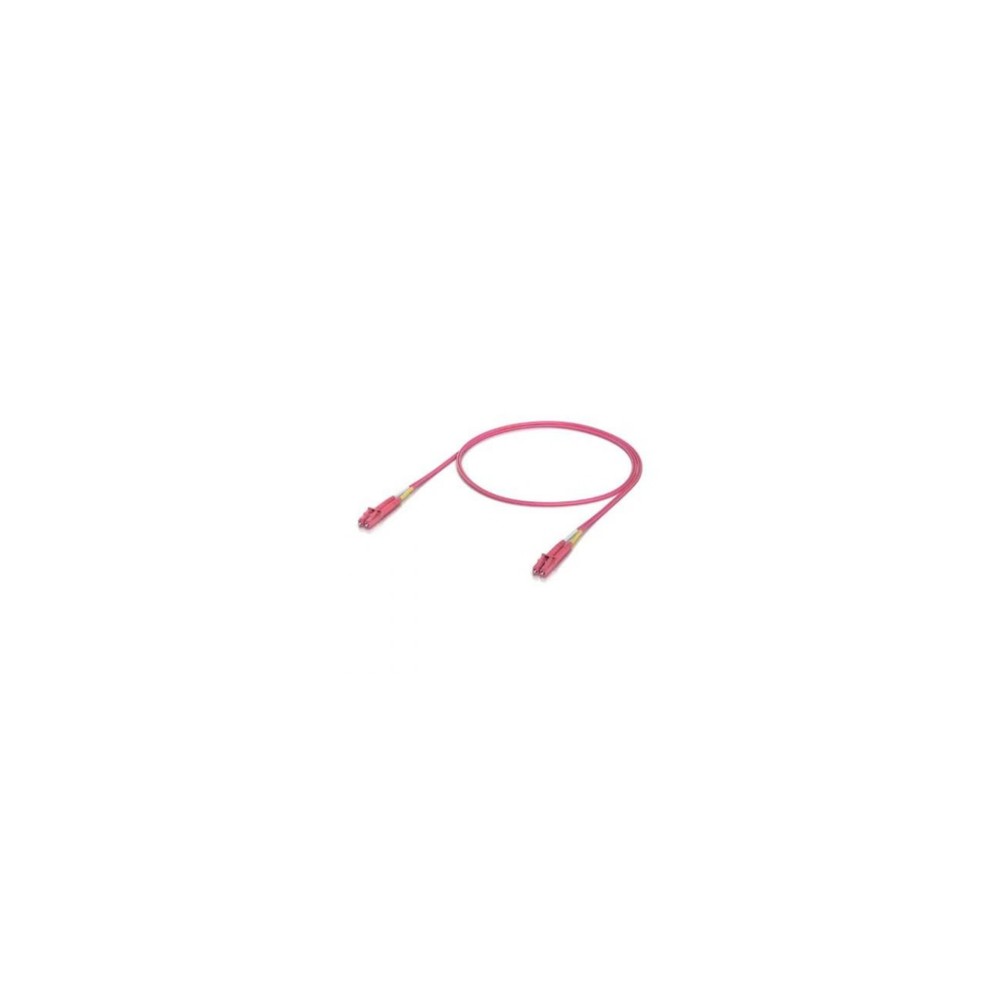

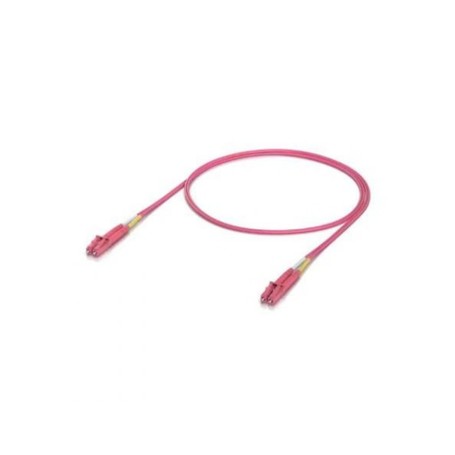

The Ubiquiti UACC-OFC-M2-LULU-1M-50 is an OM4 Duplex LC UPC Fiber Patch Cable supplied as a 50-pack of 1-meter cables. It uses multimode fiber with duplex LC UPC connectors and is designed for indoor optical-fiber networking installations.
Fiber and Connector Design
Each cable uses OM4 multimode fiber with duplex LC UPC connectors. The cable supports 850/1300 nm wavelengths and has a 2 mm jacket diameter, providing a compact fiber connection for compatible optical networking equipment.
Construction
The cables use a low-smoke zero-halogen (LSZH) jacket in a rose color. Ubiquiti specifies the cables for indoor operation and an ambient operating temperature range of -40 to 75°C.
Optical Performance
Ubiquiti specifies insertion loss of no more than 0.3 dB and return loss of at least 35 dB. Repeatability is specified at no more than 0.1 dB, while durability is rated at no more than 0.2 dB after 1,000 mating cycles.
Key Features
- OM4 multimode fiber construction
- Duplex LC UPC connectors
- 1-meter cable length
- Low-smoke zero-halogen (LSZH) 2 mm jacket
- 50 cables supplied per pack
Applications
The UACC-OFC-M2-LULU-1M-50 is intended for indoor fiber patching between compatible LC UPC optical interfaces. The 50-pack format is suited to network installations requiring multiple short OM4 fiber connections.
DC Supplies Product Note
This exact MPN is the 1-meter 50-pack variant. Ubiquiti also offers the same OM4 Duplex LC UPC cable family in other lengths and pack configurations, so the MPN should be checked carefully when ordering.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-M2-LULU-1M-50 |
| Product Type | Fiber Optic Patch Cable |
| Product Family | OM4 Duplex LC UPC Fiber Patch Cable |
| Fiber Mode | Multimode |
| Fiber Category | OM4 |
| Connector Type | Duplex LC UPC |
| Cable Length | 1 m (3.3 ft) |
| Pack Quantity | 50 cables |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Diameter | 2 mm (0.08 in) |
| Jacket Color | Rose |
| Wavelength | 850/1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
| Operating Environment | Indoor |
| Ambient Operating Temperature | -40 to 75°C (-40 to 167°F) |
FAQs
What is the Ubiquiti UACC-OFC-M2-LULU-1M-50?
It is a 50-pack of 1-meter OM4 multimode fiber patch cables with duplex LC UPC connectors.
What type of fiber does this cable use?
The cable uses OM4 multimode fiber and supports 850/1300 nm wavelengths.
How many cables are included?
The exact UACC-OFC-M2-LULU-1M-50 configuration contains 50 individual 1-meter fiber patch cables.
What connectors are used?
Each cable uses duplex LC UPC connectors.
Is the cable suitable for indoor installations?
Yes. Ubiquiti specifies the cable for indoor operation and uses an LSZH jacket material.
