Overview

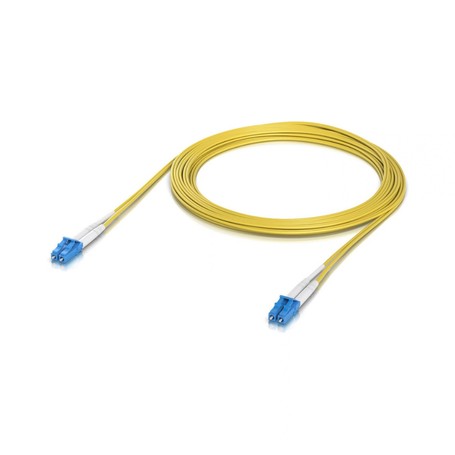

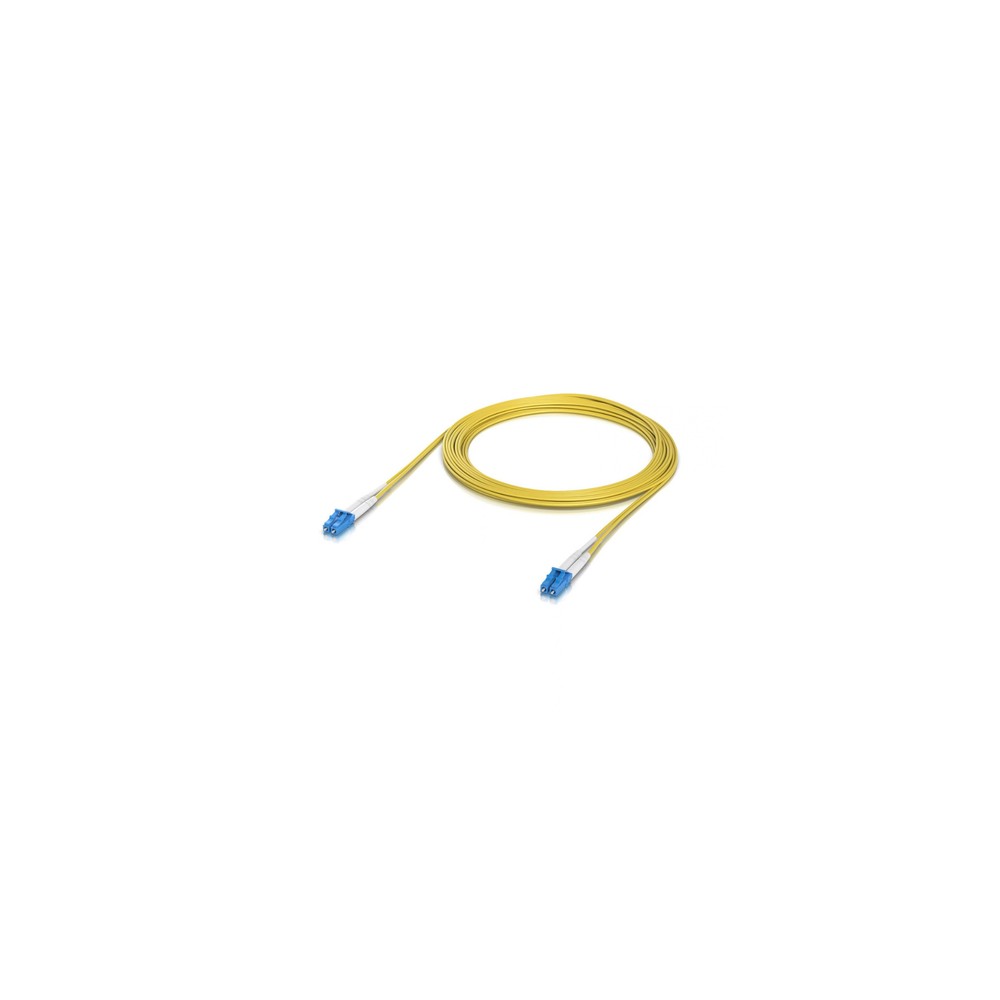

The Ubiquiti UACC-OFC-S2-LULU-5M is an OS2 Duplex LC UPC Fiber Patch Cable designed for high-speed single-mode fiber connectivity. This exact variant provides a 5-meter cable length with duplex LC UPC connectors and is specified by Ubiquiti for connections up to 100G.
The cable uses OS2 single-mode fiber with a 2 mm diameter low-smoke zero-halogen (LSZH) yellow jacket. It supports 1310 nm and 1550 nm wavelengths and is intended for indoor optical networking applications.
Fiber and Connector Configuration
The UACC-OFC-S2-LULU-5M uses duplex OS2 single-mode fiber and two duplex LC UPC connector assemblies. The UPC-polished connectors provide the LC interface commonly used for single-mode fiber network equipment and optical modules.
Optical Performance
Ubiquiti specifies insertion loss of no more than 0.3 dB and return loss of at least 50 dB. Repeatability is specified at no more than 0.1 dB, while durability is specified at no more than 0.2 dB after 1,000 mating cycles.
Construction
The cable has a 2 mm jacket diameter and uses LSZH jacket material. Its yellow jacket identifies the OS2 single-mode fiber construction, while the 5-meter length provides additional reach between compatible fiber networking components.
Key Features
- 5-meter OS2 single-mode duplex fiber cable
- Duplex LC UPC connector configuration
- Supports connections up to 100G
- 2 mm LSZH yellow jacket
- 1310/1550 nm operating wavelengths
Applications
The UACC-OFC-S2-LULU-5M is intended for indoor fiber networking connections between compatible single-mode optical equipment. It can be used with suitable network switches, optical modules, patch panels, and other equipment requiring duplex LC UPC OS2 connectivity.
DC Supplies Product Note
This exact MPN is the 5-meter single-unit version of Ubiquiti's OS2 Duplex LC UPC Fiber Patch Cable. Ubiquiti lists other lengths separately, so the -5M suffix should be retained when a 5-meter cable is required.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-S2-LULU-5M |
| Product Type | Fiber Optic Patch Cable |
| Product Family | OS2 Duplex LC UPC Fiber Patch Cable |
| Cable Length | 5 m (16.4 ft) |
| Fiber Mode | OS2 Single-Mode |
| Fiber Type | Duplex |
| Connector | (2) Duplex LC UPC |
| Connector Polish | UPC to UPC |
| Maximum Connection Speed | Up to 100G |
| Wavelength | 1310 / 1550 nm |
| Jacket Diameter | 2 mm (0.08 in) |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Yellow |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
| Operating Environment | Indoor |
| Ambient Operating Temperature | -40 to 75°C (-40 to 167°F) |
FAQs
What type of fiber is used in the UACC-OFC-S2-LULU-5M?
The cable uses OS2 single-mode duplex fiber.
What connectors does this cable have?
The cable uses duplex LC UPC connectors with UPC polishing.
How long is the UACC-OFC-S2-LULU-5M?
This exact MPN is 5 meters (16.4 feet) long.
What network speeds can this fiber cable support?
Ubiquiti describes the cable as suitable for connections up to 100G when used with compatible optical equipment.
What wavelengths does the cable support?
The specified operating wavelengths are 1310 nm and 1550 nm.
Is the jacket LSZH?
Yes. The cable uses a low-smoke zero-halogen (LSZH) jacket with a 2 mm diameter.
