Overview

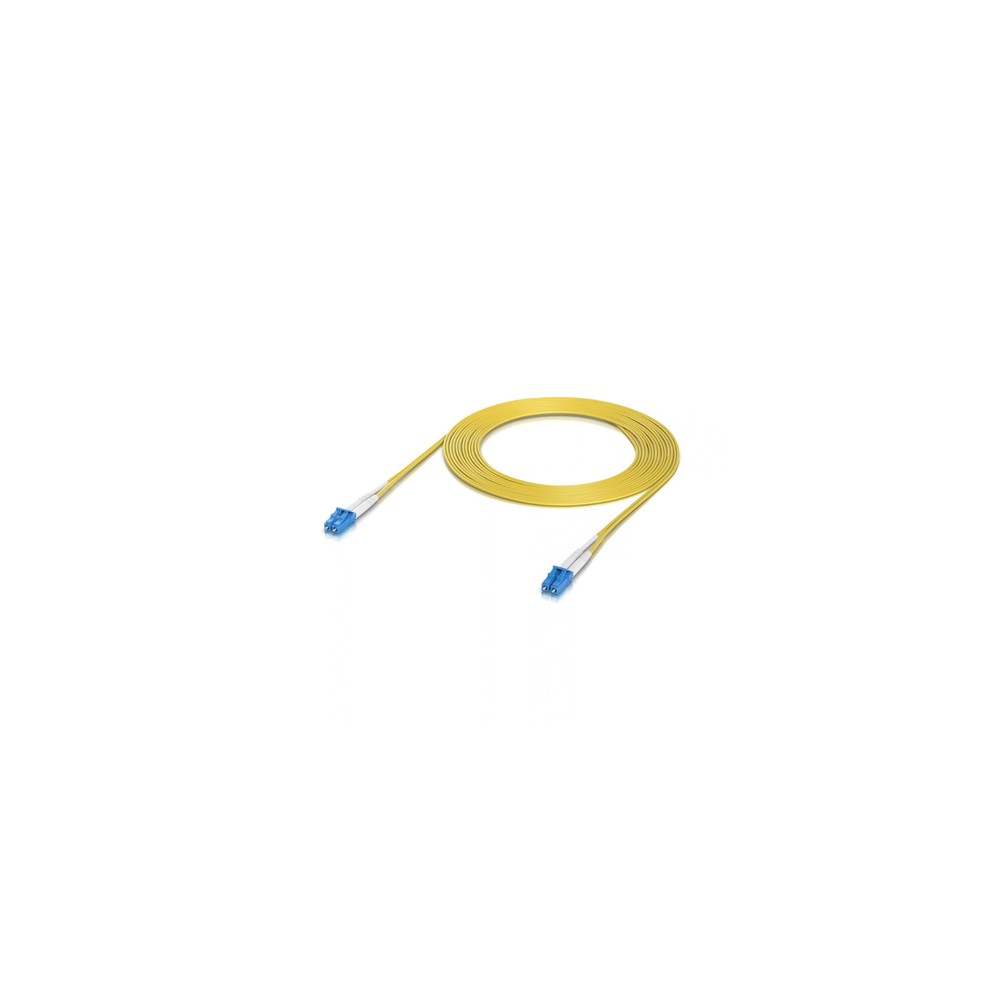

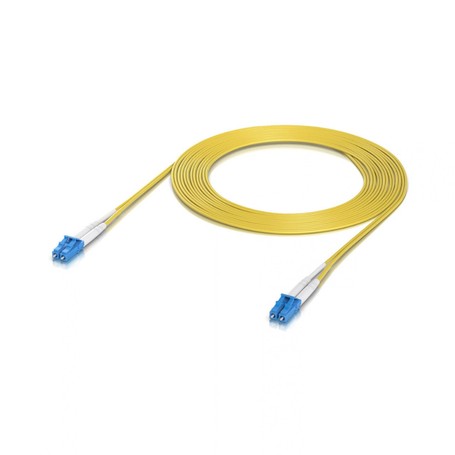

The Ubiquiti UACC-OFC-S2-LULU-3M-50 is a 3-meter OS2 single-mode duplex fiber patch cable designed for high-speed network connections. It uses duplex LC UPC connectors and is supplied as a 50-pack for structured cabling, rack, data center, and enterprise network deployments.
OS2 Single-Mode Fiber
The cable uses OS2 single-mode fiber and supports wavelengths of 1310 nm and 1550 nm. Ubiquiti specifies the cable for connections of up to 100G, making it suitable for high-bandwidth optical links where OS2 single-mode fiber is required.
Duplex LC UPC Connectivity
Each cable is terminated with duplex LC UPC connectors. The connector configuration provides two optical fibers for bidirectional communication and is suitable for compatible LC-based fiber transceivers, switches, patch panels, and other optical networking equipment.
Optical Performance
The cable has a maximum insertion loss of 0.3 dB and a minimum return loss of 50 dB. Ubiquiti also specifies repeatability of 0.1 dB and durability of 0.2 dB after 1,000 mating cycles.
LSZH Jacket
The 2 mm cable jacket is manufactured from Low Smoke Zero Halogen (LSZH) material and has a yellow finish. The cable is specified for indoor operation with an ambient operating temperature range of -40 to 75°C.
Key Features
- OS2 single-mode duplex fiber
- 3-meter cable length
- Duplex LC UPC connectors
- Supports connections up to 100G
- 50 cables supplied in the pack
Applications
The UACC-OFC-S2-LULU-3M-50 can be used for optical connections between compatible switches, SFP/SFP+ or other single-mode fiber transceivers, patch panels, and structured fiber infrastructure. The 50-pack format is suited to larger network installations requiring multiple identical 3-meter fiber links.
DC Supplies Product Note
This product is a passive fiber patch cable and does not contain optical transceivers. Verify that the connected network equipment uses compatible LC UPC single-mode interfaces and that the required optical link budget and wavelength are supported by the installed transceivers.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OFC-S2-LULU-3M-50 |
|---|
| Product Type | OS2 Duplex LC UPC Fiber Patch Cable |
|---|
| Pack Quantity | 50 cables |
|---|
| Cable Length | 3 m |
|---|
| Fiber Mode | OS2 single-mode |
|---|
| Connector | Duplex LC UPC |
|---|
| Maximum Connection Speed | Up to 100G |
|---|
| Wavelength | 1310 / 1550 nm |
|---|
| Jacket Diameter | 2 mm |
|---|
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
| Jacket Color | Yellow |
|---|
| Insertion Loss | ≤ 0.3 dB |
|---|
| Return Loss | ≥ 50 dB |
|---|
| Repeatability | ≤ 0.1 dB |
|---|
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
|---|
| Operating Environment | Indoor |
|---|
| Ambient Operating Temperature | -40 to 75°C |
|---|
FAQs
How many cables are included?
The UACC-OFC-S2-LULU-3M-50 is supplied as a 50-pack containing 50 individual 3-meter fiber patch cables.
What type of fiber does this cable use?
It uses OS2 single-mode fiber.
What connectors are fitted to the cable?
The cable uses duplex LC UPC connectors.
What wavelengths does it support?
Ubiquiti specifies 1310 nm and 1550 nm operation.
Can it support 100G connections?
Ubiquiti describes this fiber patch cable as suitable for connections up to 100G, subject to compatible transceivers and network equipment.
