Overview

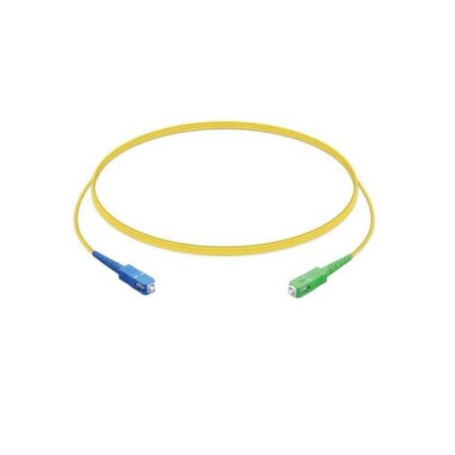

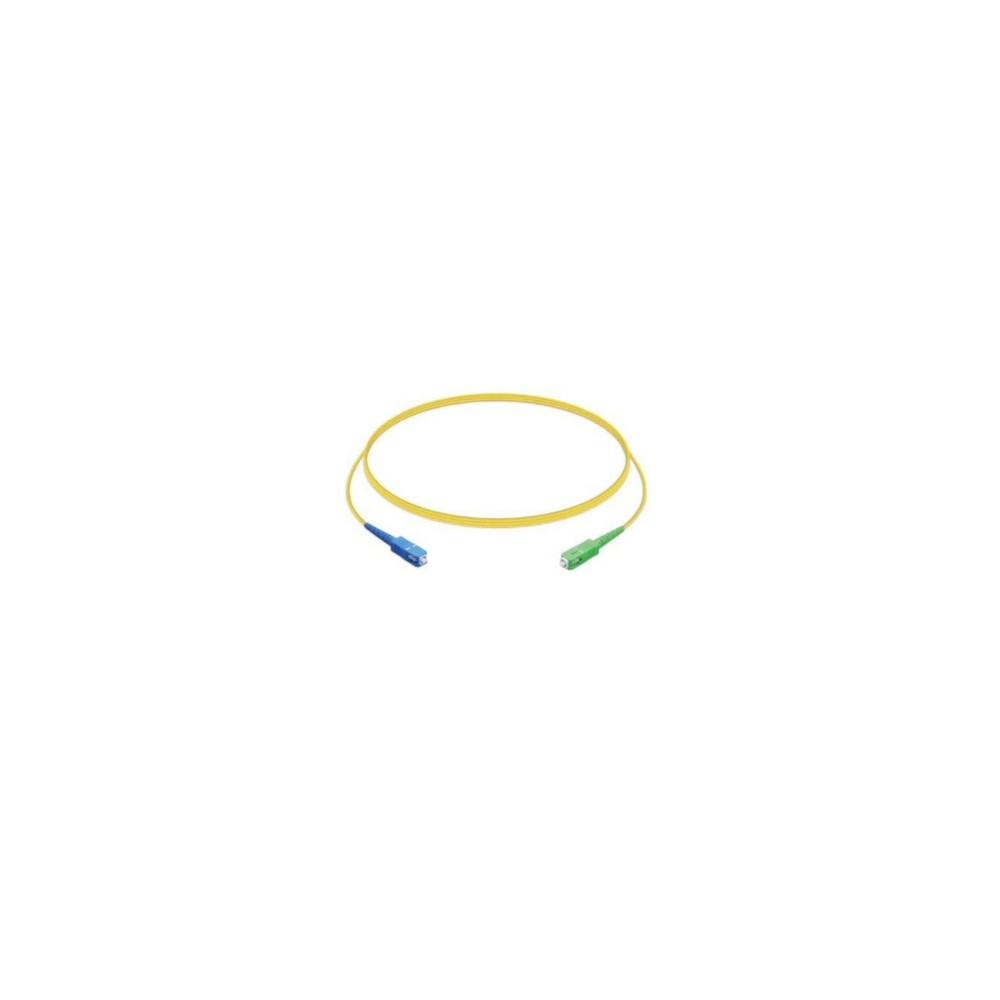

The Ubiquiti UACC-OFC-SM-PATCH-UPC-APC is a single-mode fiber patch cable designed with an SC/UPC connector on one end and an SC/APC connector on the other. Its mixed UPC/APC connector configuration is intended for compatible fiber and GPON network connections.
Fiber and Connector Configuration
This simplex fiber patch cable uses SM9/125 single-mode fiber and has one 2.0 mm SC/UPC connector and one 2.0 mm SC/APC connector. The SC/UPC connector is blue, while the SC/APC connector is green for straightforward connector identification.
Cable Construction
The cable has a 2.0 mm yellow PVC jacket and a 1.5 m length. Its compact construction is suited to fiber patching applications where a UPC connection must interface with an APC connection.
Optical Performance
Ubiquiti specifies insertion loss of no more than 0.3 dB. Return loss is specified at a minimum of 50 dB for the UPC side and 60 dB for the APC side.
Key Features
- 1.5 m single-mode simplex fiber patch cable
- SC/UPC to SC/APC connector configuration
- SM9/125 fiber with 2.0 mm cable construction
- Yellow PVC jacket
- Insertion loss of ≤ 0.3 dB
Applications
The UACC-OFC-SM-PATCH-UPC-APC is intended for compatible single-mode fiber patching and GPON network installations requiring an SC/UPC-to-SC/APC connection.
DC Supplies Product Note
The connector types are a key selection point for this cable. Verify that the equipment or fiber termination on one side requires SC/UPC and the other requires SC/APC before ordering, as UPC and APC are different connector-polish configurations.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OFC-SM-PATCH-UPC-APC |
|---|
| Product Type | Fiber PatchCord Cable UPC/APC |
|---|
| Cable Length | 1.5 m (59.1 in) |
|---|
| Cable Type | SM9/125 SX, 2.0 mm, PVC Jacket |
|---|
| Fiber Type | Single-mode |
|---|
| Fiber Configuration | Simplex |
|---|
| Core / Cladding | 9/125 µm |
|---|
| Jacket Material | Yellow PVC |
|---|
| Jacket Diameter | 2.0 mm |
|---|
| Connector 1 | SC/UPC 2.0 mm SM SX, blue |
|---|
| Connector 2 | SC/APC 2.0 mm SM SX, green |
|---|
| Insertion Loss | ≤ 0.3 dB |
|---|
| Return Loss, UPC | ≥ 50 dB |
|---|
| Return Loss, APC | ≥ 60 dB |
|---|
FAQs
What connectors does the UACC-OFC-SM-PATCH-UPC-APC use?
It has one SC/UPC connector and one SC/APC connector.
What fiber type does this patch cable use?
The cable uses SM9/125 single-mode simplex fiber.
How long is the UACC-OFC-SM-PATCH-UPC-APC?
The cable length is 1.5 m (59.1 inches).
What is the insertion loss specification?
Ubiquiti specifies an insertion loss of no more than 0.3 dB.
What are UPC and APC return loss ratings?
The specified return loss is at least 50 dB for UPC and at least 60 dB for APC.
