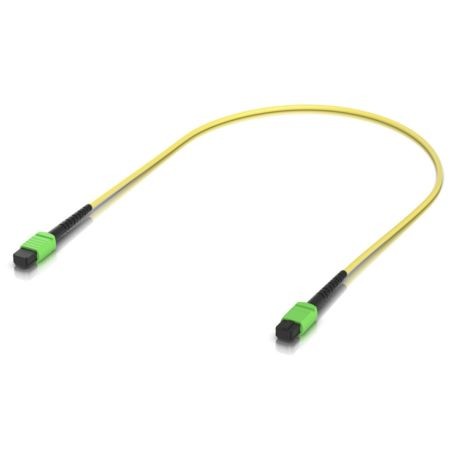

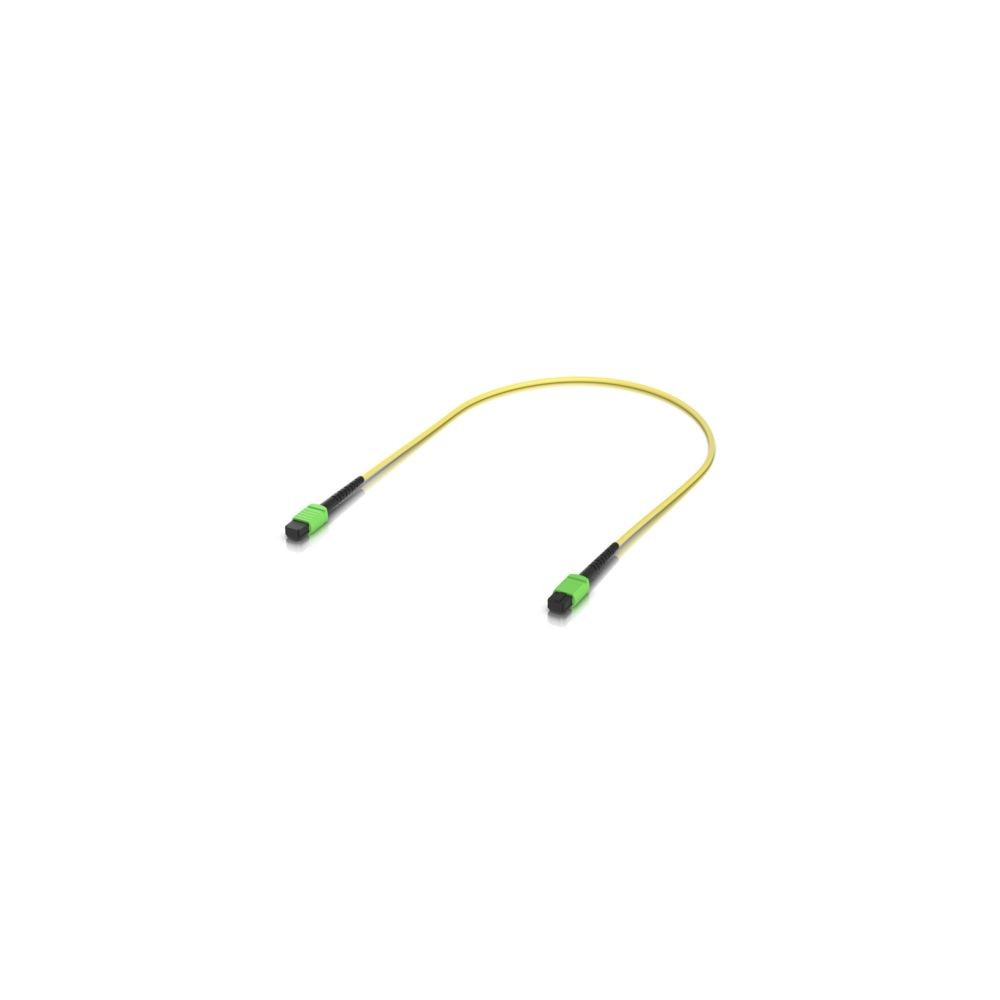

The Ubiquiti UACC-OFC-SA-MPMP-0.5M is an indoor OS2 single-mode fiber patch cable with MPO-12 Type B APC connectors, designed for 100G applications. Its 0.5m length and 3mm low smoke zero halogen (LSZH) jacket provide a compact option for high-density fiber installations.
Key Features
- 0.5m OS2 single-mode fiber patch cable
- MPO-12 Type B APC connectors at both ends
- 12-fiber configuration for high-density fiber connectivity
- 3mm yellow LSZH jacket
- Designed for 100G applications
Applications
This fiber patch cable is suited to indoor high-density network and data-center installations requiring MPO-12 connectivity. Its short 0.5m length is useful for closely positioned compatible fiber equipment and patching infrastructure where excess cable slack should be minimized.
Compatibility
The cable uses MPO-12 Type B APC female connectors at both ends and OS2 single-mode fiber. Connected equipment should support the same MPO connector type, APC finish, fiber mode, and Type B polarity configuration.
Technical Information
Ubiquiti specifies 1310nm and 1550nm wavelengths, insertion loss of ≤0.6dB, return loss of ≥20dB, repeatability of ≤0.1dB, and durability of ≤0.2dB after 1,000 mating cycles. The cable has a 3mm LSZH jacket and an ambient operating temperature range of -40 to 75°C.
DC Supplies Product Note
The 0.5m length is particularly useful for short MPO connections in dense fiber environments, helping maintain a compact routing path between nearby compatible ports.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-SA-MPMP-0.5M |
| Product Type | Fiber Optic Patch Cable |
| Fiber Mode | OS2 Single-Mode |
| Fiber Configuration | 12-Fiber |
| Cable Length | 0.5m |
| Connector Type | MPO-12 Type B APC |
| Connector Quantity | 2 |
| Connector Gender | Female-to-Female |
| Polarity | Type B |
| Wavelength | 1310/1550nm |
| Jacket Diameter | 3mm |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Yellow |
| Insertion Loss | ≤0.6dB |
| Return Loss | ≥20dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB after 1,000 mating cycles |
| Application | 100G |
| Operating Environment | Indoor |
| Ambient Operating Temperature | -40 to 75°C |
| Pack Option | Single Unit |
FAQs
What is the cable length?
The UACC-OFC-SA-MPMP-0.5M has a 0.5m cable length.
What type of fiber does it use?
It uses OS2 single-mode fiber in a 12-fiber configuration.
What connectors are fitted?
Both ends use MPO-12 Type B APC female connectors.
What wavelengths are specified? MPO Type B APC
Ubiquiti specifies 1310nm and 1550nm wavelengths.
Is this cable designed for 100G applications?
Yes. Ubiquiti specifies the OS2 MPO-12 APC Fiber Patch Cable for 100G applications.
What is the jacket material?
The cable uses a 3mm low smoke zero halogen (LSZH) jacket with a yellow finish.
