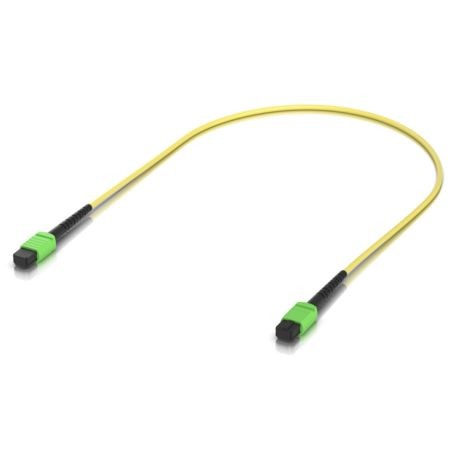

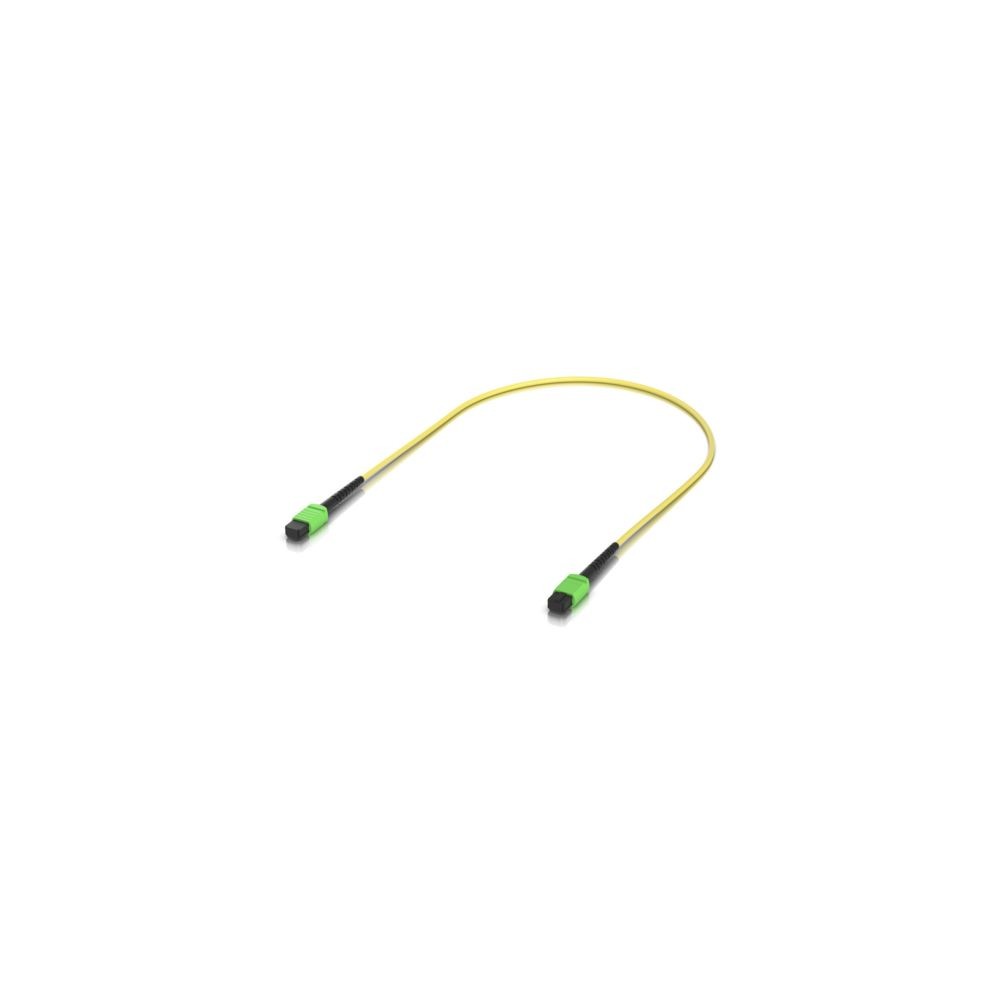

The Ubiquiti UACC-OFC-SA-MPMP-3M is a 3m OS2 single-mode fiber patch cable designed for indoor high-speed fiber connectivity and 100G applications. It features MPO-12 Type B APC connectors at both ends, a 3mm low smoke zero halogen (LSZH) jacket, and a yellow finish for fiber identification.
Key Features
- 3m OS2 single-mode fiber patch cable
- MPO-12 Type B APC connectors on both ends
- Designed for 100G applications
- 3mm yellow LSZH jacket for compact indoor routing
- 1310/1550nm wavelengths with insertion loss up to 0.6dB
Applications
This cable is suitable for indoor high-density fiber installations requiring MPO-12 connectivity. The 3m length provides additional routing distance between compatible network equipment, patching systems, and data-center infrastructure while retaining a compact 3mm cable profile.
Compatibility
The UACC-OFC-SA-MPMP-3M uses MPO-12 Type B APC connectors and OS2 single-mode fiber. Connected equipment must support the same MPO connector configuration and fiber type. Confirm the required polarity and connector configuration before deployment.
Technical Information
Ubiquiti specifies 1310nm and 1550nm operating wavelengths, insertion loss of ≤0.6dB, return loss of ≥20dB, repeatability of ≤0.1dB, and durability of ≤0.2dB after 1,000 mating cycles. The cable is rated for ambient operating temperatures from -40 to 75°C.
DC Supplies Product Note
The 3m length is useful when MPO fiber equipment is separated by more than a short patching distance, providing additional routing flexibility without moving to a longer cable variant.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-SA-MPMP-3M |
| Product Type | Fiber Optic Patch Cable |
| Fiber Mode | OS2 Single-Mode |
| Fiber Configuration | 12-Fiber |
| Cable Length | 3m |
| Connector Type | MPO-12 Type B APC |
| Connector Quantity | 2 |
| Connector Gender | Female-to-Female |
| Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.6dB |
| Return Loss | ≥20dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB after 1,000 mating cycles |
| Jacket Diameter | 3mm |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Yellow |
| Application | 100G |
| Operating Environment | Indoor |
| Ambient Operating Temperature | -40 to 75°C |
| Package Option | Single Unit |
FAQs
What is the cable length?
The UACC-OFC-SA-MPMP-3M has a 3m cable length.
What type of fiber does it use?
It uses OS2 single-mode fiber in a 12-fiber configuration.
What connectors are fitted?
Both ends use MPO-12 Type B APC connectors in a female-to-female configuration.
What wavelengths does it support?
The specified wavelengths are 1310nm and 1550nm.
Is it designed for 100G applications?
Yes. Ubiquiti specifies the OS2 MPO-12 APC fiber patch cable for 100G applications.
What is the jacket material?
The cable uses a 3mm low smoke zero halogen (LSZH) jacket with a yellow finish.
