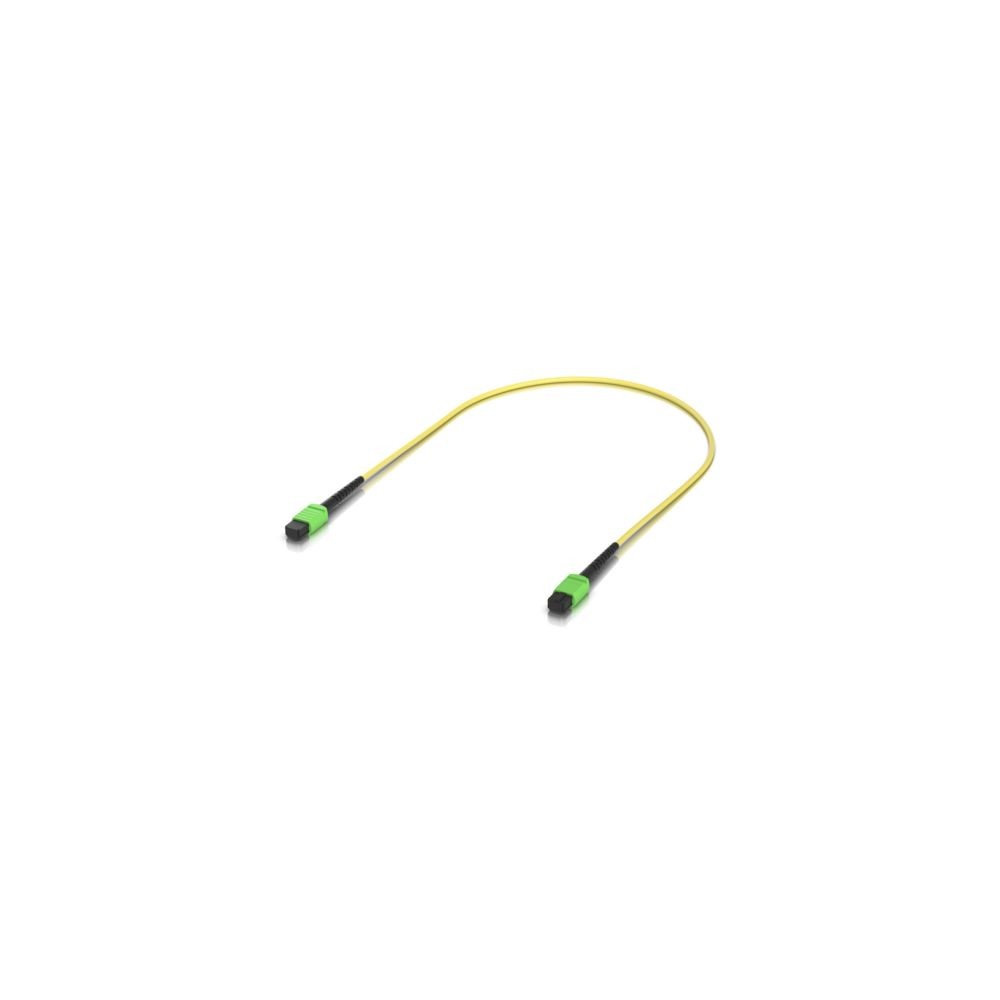

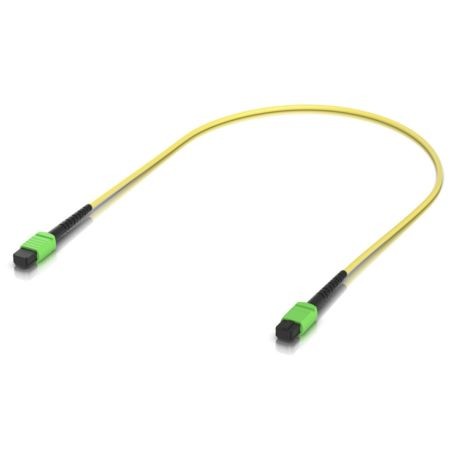

The Ubiquiti UACC-OFC-SA-MPMP-1M is a 1m OS2 single-mode fiber patch cable designed for high-speed indoor fiber connectivity and 100G applications. It uses MPO-12 Type B APC connectors at both ends and a compact 3mm low smoke zero halogen (LSZH) jacket in yellow.
Key Features
- 1m OS2 single-mode fiber patch cable
- MPO-12 Type B APC connectors on both ends
- Designed for 100G applications
- 3mm LSZH jacket with yellow color
- 1310/1550nm operating wavelengths with insertion loss up to 0.6dB
Applications
This fiber patch cable is intended for indoor high-density network environments where MPO-12 connectivity is required. The 1m length is suitable for short fiber links between compatible network equipment, patching systems, and data-center infrastructure while helping keep routing compact.
Compatibility
The cable has two MPO-12 Type B APC connectors and is designed for compatible OS2 single-mode fiber interfaces. Verify that the connected equipment specifically supports MPO-12 Type B APC connectivity before installation, as MPO connector configurations can differ between systems.
Technical Information
The cable operates with OS2 single-mode fiber and supports 1310nm and 1550nm wavelengths. Ubiquiti specifies insertion loss of ≤0.6dB, return loss of ≥20dB, repeatability of ≤0.1dB, and durability of ≤0.2dB after 1,000 mating cycles.
DC Supplies Product Note
For dense fiber installations, the 1m length and 3mm jacket provide a compact option for short MPO connections without adding unnecessary cable slack.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-SA-MPMP-1M |
| Product Type | Fiber Optic Patch Cable |
| Fiber Mode | OS2 Single-Mode |
| Fiber Configuration | 12-Fiber |
| Cable Length | 1m |
| Connector Type | MPO-12 Type B APC |
| Connector Configuration | Female to Female |
| Wavelength | 1310/1550nm |
| Jacket Diameter | 3mm |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Yellow |
| Insertion Loss | ≤0.6dB |
| Return Loss | ≥20dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB after 1,000 mating cycles |
| Application | 100G |
| Operating Environment | Indoor |
| Ambient Operating Temperature | -40 to 75°C |
| Package Option | Single Unit |
FAQs
What is the cable length?
The UACC-OFC-SA-MPMP-1M is 1m long.
What type of fiber does it use?
It uses OS2 single-mode fiber in a 12-fiber configuration.
What connectors are fitted?
Both ends use MPO-12 Type B APC connectors with a female-to-female configuration.
What wavelengths does the cable support?
The specified wavelengths are 1310nm and 1550nm.
Is this cable suitable for 100G applications?
Yes. Ubiquiti specifies this OS2 MPO-12 APC fiber patch cable for 100G applications.
