Overview

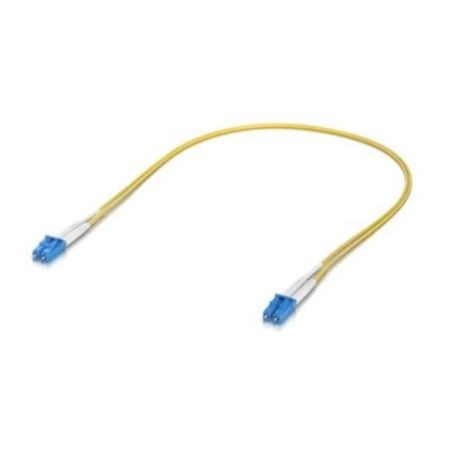

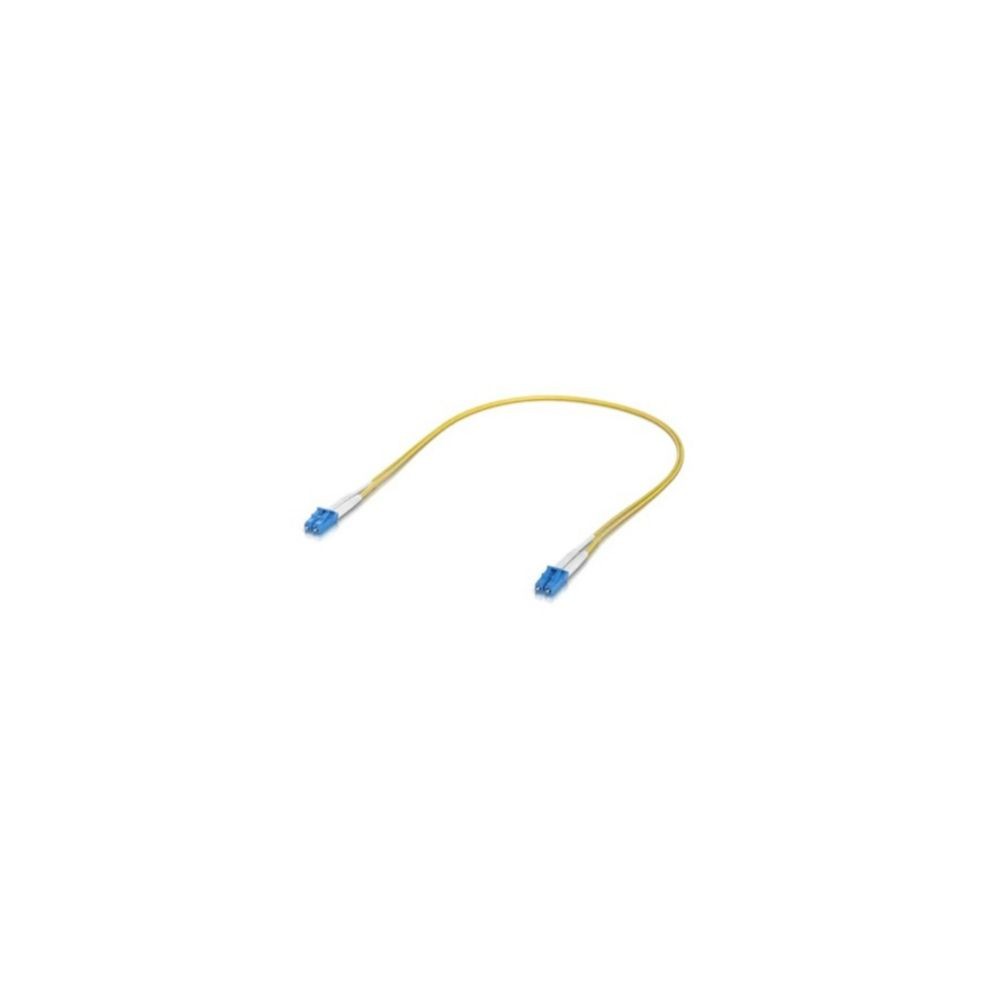

The Ubiquiti UACC-OFC-S2-LULU-0.5M-50 is a 50-pack of 0.5m OS2 single-mode duplex fiber optic patch cables designed for high-speed network connections. Each cable uses duplex LC UPC connectors on both ends and a 2mm LSZH yellow jacket.
The short 0.5m length is suited to compact equipment interconnections where minimal excess fiber is preferred. Ubiquiti specifies the cable family for connections up to 100G.
Fiber and Connector Design
Each cable uses OS2 single-mode fiber with duplex LC UPC connectors. The UPC-polished LC connectors are designed for compatible optical transceivers, patch panels, and network equipment using LC interfaces.
Optical Performance
The cable is specified for 1310nm and 1550nm wavelengths, with insertion loss of no more than 0.3dB and return loss of at least 50dB. Repeatability is specified at no more than 0.1dB.
Construction
Each cable has a 2mm outer jacket made from low-smoke zero-halogen (LSZH) material. The yellow jacket identifies the single-mode OS2 fiber construction and provides a compact form factor for dense network installations.
Pack Configuration
This exact MPN is supplied as a 50-pack. The package contains 50 individual 0.5m UACC-OFC-S2-LULU fiber patch cables, making the SKU suited to installations requiring multiple short single-mode optical connections.
Key Features
- 50 individual 0.5m OS2 single-mode duplex fiber patch cables
- Duplex LC UPC connectors on both ends
- 2mm yellow LSZH jacket construction
- 1310/1550nm operating wavelengths with ≤0.3dB insertion loss
- Specified for optical connections up to 100G
Applications
- Short-distance switch-to-switch fiber connections
- Server and storage interconnections
- Optical transceiver to patch-panel connections
- High-density rack and data-center installations
- Bulk deployments requiring multiple LC UPC OS2 patch cables
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OFC-S2-LULU-0.5M-50 |
|---|
| Product Type | Fiber Optic Patch Cable |
|---|
| Product Family | OS2 Duplex LC UPC Fiber Patch Cable |
|---|
| Pack Quantity | 50 cables |
|---|
| Cable Length | 0.5m (1.6ft) each |
|---|
| Fiber Mode | Single-mode |
|---|
| Fiber Category | OS2 |
|---|
| Fiber Type | Duplex |
|---|
| Connector Type | LC UPC to LC UPC |
|---|
| Connector Configuration | Duplex LC UPC at both ends |
|---|
| Polish | UPC to UPC |
|---|
| Wavelength | 1310/1550nm |
|---|
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
| Jacket Diameter | 2mm (0.08") |
|---|
| Jacket Color | Yellow |
|---|
| Insertion Loss | ≤0.3dB |
|---|
| Return Loss | ≥50dB |
|---|
| Repeatability | ≤0.1dB |
|---|
| Durability | ≤0.2dB after 1,000 mating cycles |
|---|
| Operating Environment | Indoor |
|---|
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
|---|
FAQs
How many cables are included?
The UACC-OFC-S2-LULU-0.5M-50 contains 50 individual 0.5m fiber patch cables.
What type of fiber does this cable use?
Each cable uses OS2 single-mode duplex fiber.
What connectors are used?
Each cable has duplex LC UPC connectors at both ends.
What is the cable length?
Each individual cable is 0.5m (1.6ft) long.
What are the specified optical losses?
Ubiquiti specifies insertion loss of ≤0.3dB and return loss of ≥50dB, with repeatability of ≤0.1dB.
