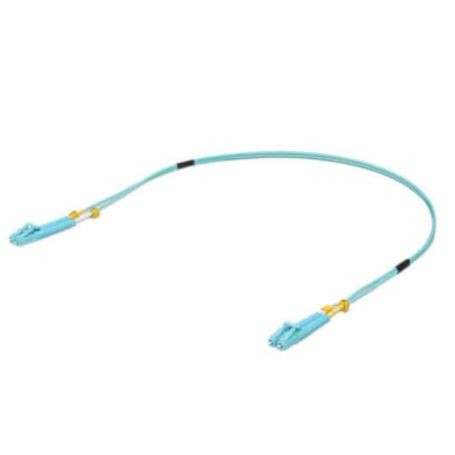

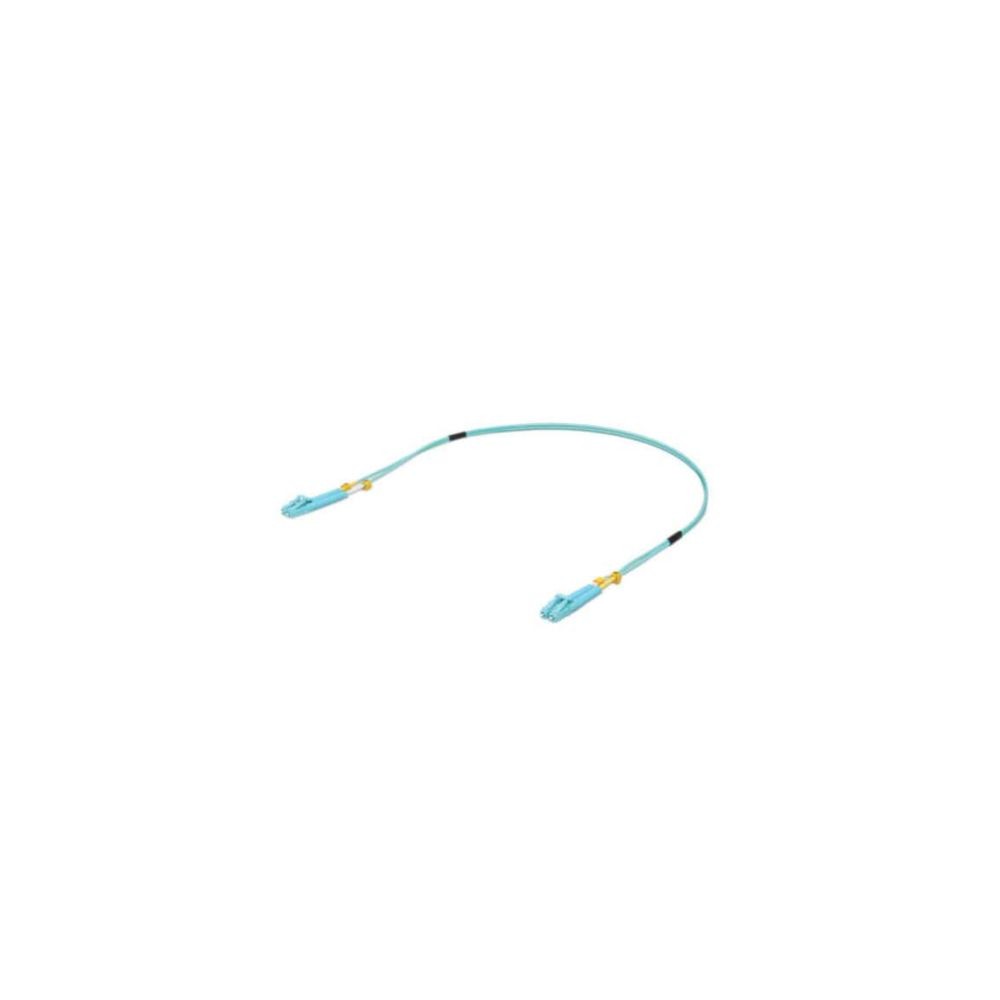

Ubiquiti UOC-0.5 UniFi ODN 0.5m OM3 Multimode LC-LC Fiber Patch Cable
Overview
The Ubiquiti UOC-0.5 is a 0.5-meter duplex multimode fiber optic patch cable from the UniFi ODN (Optical Distribution Network) series. It is designed for indoor telecommunications and data network connections using Ubiquiti routing and switching products, including EdgeRouter, EdgeSwitch, and UniFi Switch platforms [citation:3][citation:5]. The short 0.5-meter length makes it particularly suited for connections between adjacent equipment within the same rack or cabinet.
Connectors and Fiber Type
The UOC-0.5 features LC/UPC male connectors on both ends in a duplex configuration, with 50/125 µm core and cladding dimensions [citation:1][citation:5]. The OM3 fiber standard supports wavelengths of 850 nm and 1310 nm, making it suitable for short-reach 10G applications within data centers and equipment racks [citation:1]. The cable jacket is constructed from PVC with a 2.0 mm outer diameter per fiber, and the aqua jacket color is the internationally recognized identifier for OM3 fiber, simplifying identification during installation and maintenance [citation:1][citation:4].
Performance Characteristics
The UOC-0.5 is rated for 10 Gbps throughput, enabling high-bandwidth connections between networking equipment [citation:1]. Insertion loss is specified at ≤0.3 dB, with return loss of ≤50 dB, ensuring reliable signal transmission [citation:1][citation:4]. The connectors are tested to 1,000 mating cycles with a maximum degradation of 0.2 dB, and repeatability is rated at ≤0.1 dB [citation:1]. The operating temperature range spans -40°C to 75°C, allowing deployment in varied environmental conditions [citation:1].
Key Features
- 0.5-meter duplex multimode OM3 fiber patch cable with LC-LC connectors
- Supports 10 Gbps Ethernet speeds over 50/125 µm multimode fiber
- UPC polish with insertion loss of ≤0.3 dB and return loss ≤50 dB
- Aqua PVC jacket for OM3 identification
- Operating temperature range of -40°C to 75°C
Applications
The UOC-0.5 is used to establish short-distance fiber links between Ubiquiti switches, routers, and other equipment with SFP/SFP+ ports. The 0.5-meter length is ideal for connections within a single telecommunications cabinet or between adjacent devices, such as interconnecting switches in a stacked configuration or linking a router to a nearby switch [citation:4]. Typical deployments include rack-to-rack connections within data centers, interconnecting EdgeRouter and EdgeSwitch platforms, and linking UniFi Switch equipment in enterprise networks [citation:5].
DC Supplies Product Note
The UOC-0.5 is a passive fiber patch cable only—SFP modules are not included and must be purchased separately. Verify that your equipment uses LC duplex interfaces before ordering. This cable is rated for indoor use; outdoor or direct-burial installations require a different cable type with appropriate jacketing. The 0.5-meter length is best suited for connections between directly adjacent equipment; longer runs may require the 1-meter, 2-meter, or 3-meter variants [citation:1].
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | UOC-0.5 |
| Product Type | Fiber Optic Patch Cable |
| Series | UniFi ODN |
| Cable Length | 0.5 m |
| Fiber Type | Multimode OM3 |
| Core/Cladding | 50/125 µm |
| Connector A | LC/UPC Male |
| Connector B | LC/UPC Male |
| Configuration | Duplex |
| Wavelengths | 850 nm / 1310 nm |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≤50 dB |
| Polish | UPC to UPC |
| Jacket Material | PVC |
| Jacket OD | 2.0 mm |
| Color | Aqua |
| Operating Temperature | -40°C to 75°C |
| EAN | 0817882020428 |
FAQs
Does the UOC-0.5 include SFP modules?
No. The UOC-0.5 is a passive fiber patch cable only. SFP or SFP+ optical modules must be purchased separately.
What is the maximum data rate supported?
The cable supports 10 Gbps Ethernet over OM3 multimode fiber [citation:1].
Is this cable suitable for outdoor use?
No. The UOC-0.5 is an indoor-rated patch cable with a PVC jacket. Outdoor or direct-burial installations require a different cable specification.
What equipment is this cable compatible with?
It is designed for use with Ubiquiti routing and switching products that have LC duplex SFP ports, including EdgeRouter, EdgeSwitch, and UniFi Switch platforms [citation:3][citation:5].
