Overview

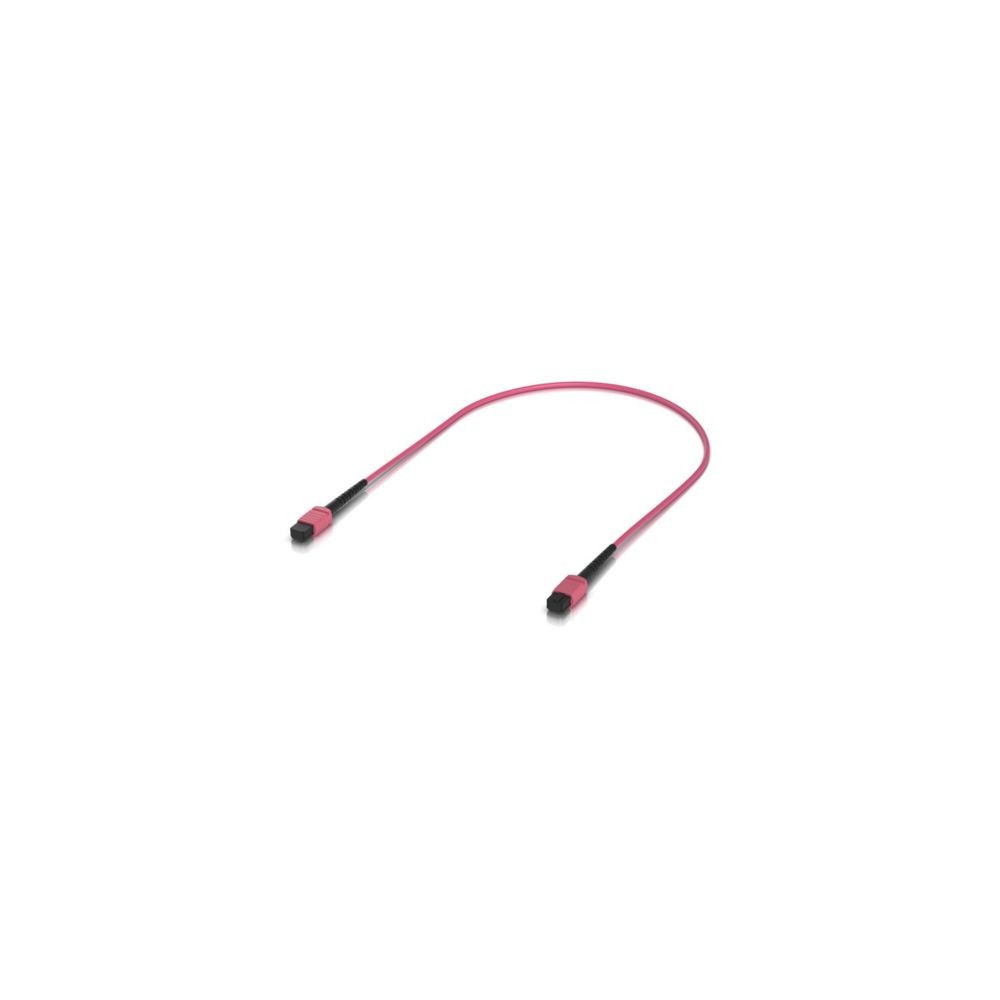

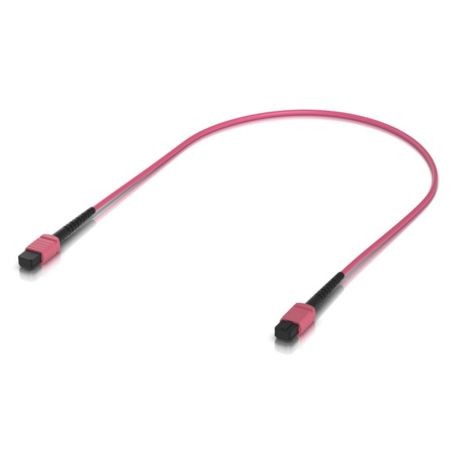

The Ubiquiti UACC-OFC-MA-MPMP-0.5M is a 0.5-meter indoor OM4 multimode fiber patch cable designed for high-density optical networking and 100G applications. It uses MPO-12 Type B UPC connectors at both ends and contains 12 multimode optical fibers.
Fiber Connectivity
The cable uses OM4 multimode fiber with an 850 nm operating wavelength. Its MPO-12 Type B UPC connector configuration provides a compact multi-fiber connection for compatible optical equipment and high-density fiber infrastructure.
Physical Construction
The 0.5-meter assembly uses a 3 mm low-smoke zero-halogen (LSZH) jacket with a rose color. Its compact length is suited to short equipment-to-equipment or patch-panel interconnections where minimal cable slack is preferred.
Optical Performance
Ubiquiti specifies insertion loss of no more than 0.6 dB and return loss of at least 20 dB. Repeatability is specified at no more than 0.1 dB, while durability is rated at no more than 0.2 dB after 1,000 mating cycles.
Key Features
- OM4 multimode fiber for 100G applications
- 12-fiber MPO-12 Type B UPC connector configuration
- Compact 0.5-meter cable length
- 3 mm LSZH jacket in rose color
- 850 nm wavelength with defined optical loss specifications
Applications
The UACC-OFC-MA-MPMP-0.5M is suited to high-density fiber installations, data-center interconnections, and compatible 100G optical networking equipment using MPO-12 interfaces. Its short length can help maintain compact cable routing between closely positioned ports.
DC Supplies Product Note
Verify the required MPO polarity before installation: this exact cable uses MPO-12 Type B UPC connectors, so the connector type and polarity must match the optical equipment and link design.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OFC-MA-MPMP-0.5M |
|---|
| Product Type | OM4 MPO-12 UPC Fiber Patch Cable |
|---|
| Cable Length | 0.5 m (1.6 ft) |
|---|
| Fiber Mode | Multimode |
|---|
| Fiber Type | OM4 |
|---|
| Fiber Count | 12 |
|---|
| Connector Type | MPO-12 Type B UPC to MPO-12 Type B UPC |
|---|
| Wavelength | 850 nm |
|---|
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
| Jacket Diameter | 3 mm |
|---|
| Jacket Color | Rose |
|---|
| Insertion Loss | ≤ 0.6 dB |
|---|
| Return Loss | ≥ 20 dB |
|---|
| Repeatability | ≤ 0.1 dB |
|---|
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
|---|
| Operating Environment | Indoor |
|---|
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
|---|
| Pack Quantity | 1 unit |
|---|
FAQs
What type of fiber does the UACC-OFC-MA-MPMP-0.5M use?
It uses OM4 multimode fiber with 12 optical fibers.
What connectors are used?
The cable has MPO-12 Type B UPC connectors on both ends.
What is the cable length?
The exact UACC-OFC-MA-MPMP-0.5M variant is 0.5 meters (1.6 feet) long.
Is this cable designed for 100G networking?
Yes. Ubiquiti identifies the OM4 MPO-12 UPC fiber patch cable for 100G applications.
