Overview

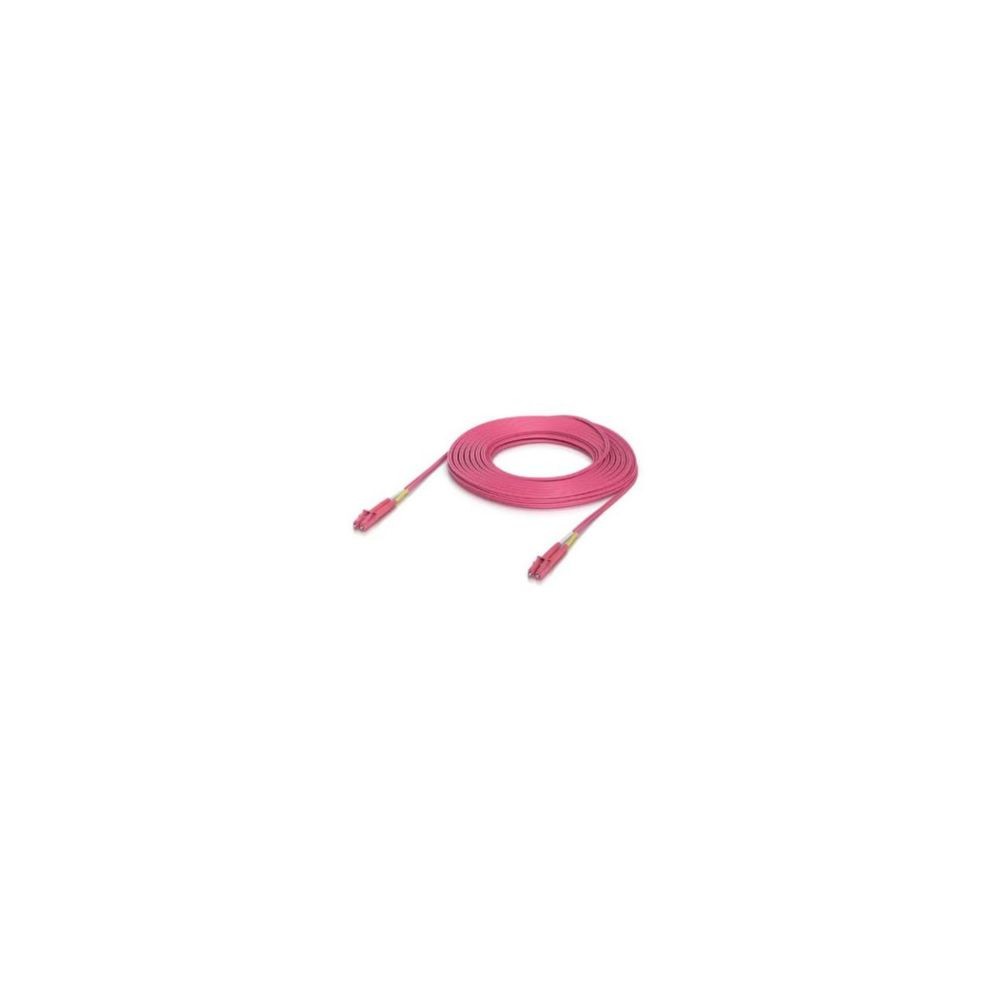

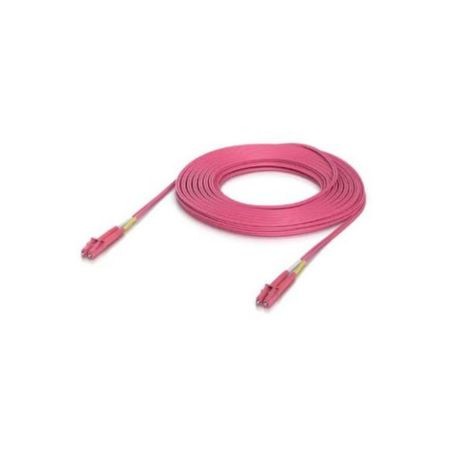

The Ubiquiti UACC-OFC-M2-LULU-15M is a 15-meter indoor OM4 multimode fiber patch cable designed for optical connections between compatible network equipment. It uses duplex LC UPC connectors at both ends and a low-smoke zero-halogen jacket.
Fiber Connectivity
The cable uses OM4 multimode fiber with a 50/125 µm core specification and supports 850 nm and 1300 nm wavelengths. Duplex construction provides two optical fibers for full-duplex network connections, while LC UPC termination provides a common connector format for compatible fiber interfaces.
Physical Construction
The cable has a 2 mm jacket diameter and a rose-colored LSZH jacket intended for indoor installations. The LSZH construction provides a low-smoke, zero-halogen cable jacket for network cabling environments where this material characteristic is required.
Optical Performance
Ubiquiti specifies insertion loss of up to 0.3 dB, return loss of at least 35 dB, repeatability of up to 0.1 dB, and durability of up to 0.2 dB after 1,000 mating cycles.
Key Features
- 15-meter OM4 multimode fiber patch cable
- Duplex LC UPC connectors on both ends
- 850/1300 nm wavelength support
- 2 mm low-smoke zero-halogen jacket
- Designed for indoor optical networking installations
Applications
The UACC-OFC-M2-LULU-15M is suitable for indoor fiber links between compatible switches, transceivers, patch panels, and other optical network devices using duplex LC UPC interfaces. Its 15-meter length is useful where shorter patch cables do not provide sufficient routing distance between equipment.
DC Supplies Product Note
Confirm that both connected devices use compatible duplex LC UPC multimode interfaces before installation; the cable is specifically terminated with LC UPC connectors and uses OM4 multimode fiber.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-OFC-M2-LULU-15M |
|---|
| Product Type | OM4 Duplex LC UPC Fiber Patch Cable |
|---|
| Cable Length | 15 m (49.2 ft) |
|---|
| Fiber Mode | Multimode |
|---|
| Fiber Type | OM4 |
|---|
| Fiber Core Specification | 50/125 µm |
|---|
| Number of Fibers | 2 |
|---|
| Connector Configuration | Duplex LC UPC to Duplex LC UPC |
|---|
| Connector Polish | UPC |
|---|
| Wavelength | 850/1300 nm |
|---|
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
| Jacket Diameter | 2 mm |
|---|
| Jacket Color | Rose |
|---|
| Insertion Loss | ≤ 0.3 dB |
|---|
| Return Loss | ≥ 35 dB |
|---|
| Repeatability | ≤ 0.1 dB |
|---|
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
|---|
| Operating Environment | Indoor |
|---|
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
|---|
| Pack Quantity | 1 unit |
|---|
FAQs
What fiber type does the UACC-OFC-M2-LULU-15M use?
It uses OM4 multimode fiber with a 50/125 µm core specification.
What connectors are fitted to the cable?
The cable has duplex LC UPC connectors on both ends.
How long is this fiber patch cable?
The UACC-OFC-M2-LULU-15M is 15 meters (49.2 feet) long.
Is this cable intended for indoor use?
Yes. Ubiquiti specifies the cable for indoor use and uses an LSZH jacket.
