Detailed Specifications
Overview

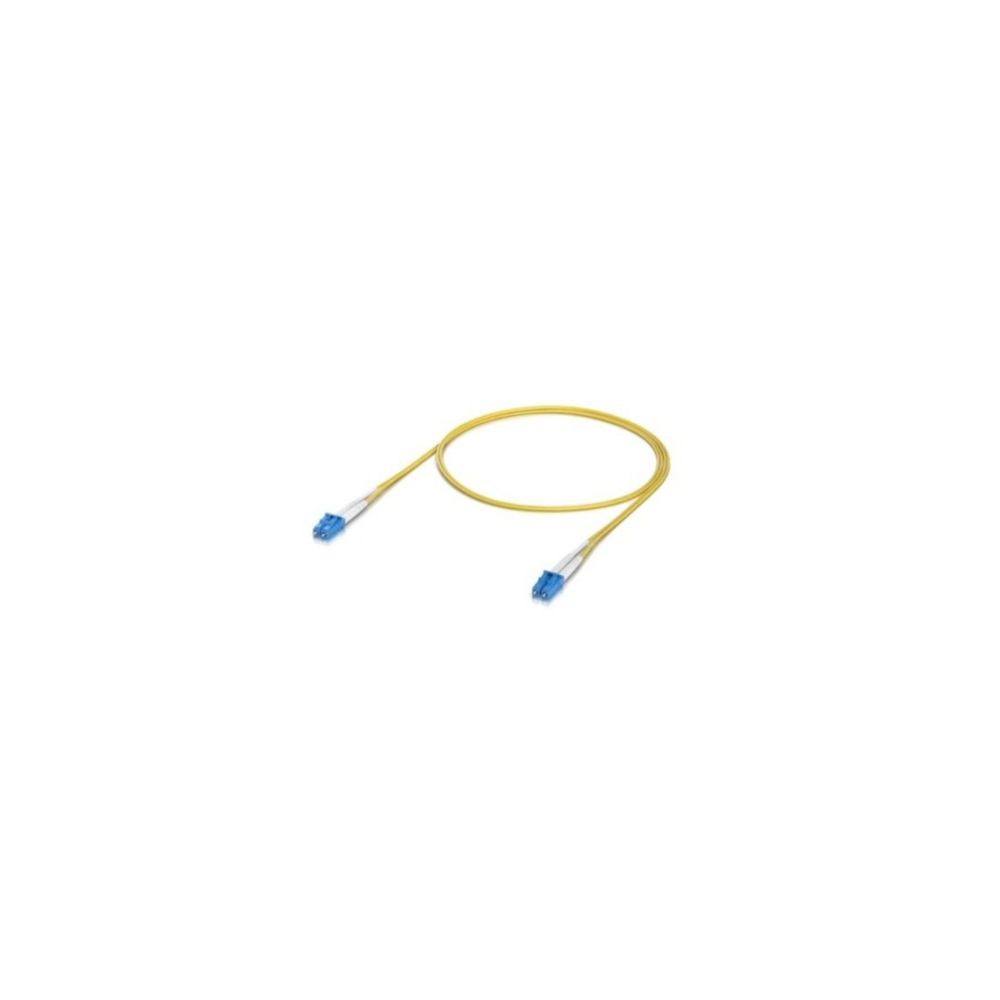

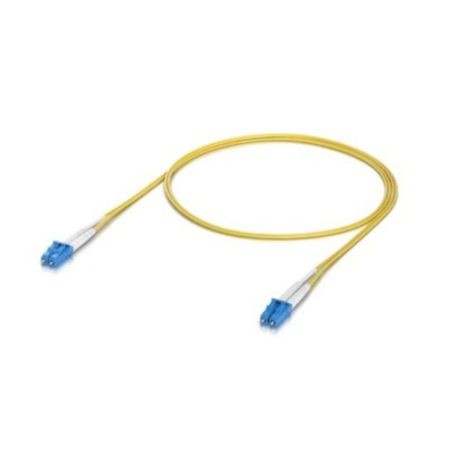

The Ubiquiti UACC-OFC-S2-LULU-1M-50 is an OS2 single-mode duplex fiber optic patch cable supplied as a 50-pack. Each 1-meter cable uses duplex LC UPC connectors, a 2 mm LSZH jacket, and is designed for optical network connections up to 100G.
Technical Information
The cable uses OS2 single-mode fiber with duplex transmission and LC UPC connectors at both ends. Ubiquiti specifies 1310/1550 nm operating wavelengths, insertion loss of ≤0.3 dB, return loss of ≥50 dB, and repeatability of ≤0.1 dB.
Key Features
- OS2 single-mode duplex fiber construction
- Duplex LC UPC connectors on both ends
- 1-meter cable length with 2 mm jacket diameter
- Low Smoke Zero Halogen (LSZH) yellow jacket
- 50 individual patch cables per pack
Applications
The UACC-OFC-S2-LULU-1M-50 is suited to structured optical networking where short OS2 duplex connections are required between compatible LC/UPC fiber interfaces. The 50-pack format is intended for installations requiring multiple matching patch cables.
DC Supplies Product Note
The 1-meter length and 50-pack configuration make this model particularly suited to standardized fiber patching across larger installations where multiple identical LC/UPC connections are required.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-S2-LULU-1M-50 |
| Product Type | Fiber Optic Patch Cable |
| Product Family | OS2 Duplex LC UPC Fiber Patch Cable |
| Fiber Mode | Single-mode |
| Fiber Type | OS2 |
| Fiber Configuration | Duplex |
| Cable Length | 1 m |
| Connector | Duplex LC UPC |
| Connector Configuration | LC UPC to LC UPC |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Diameter | 2 mm |
| Jacket Color | Yellow |
| Wavelength | 1310 / 1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Pack Quantity | 50 cables |
| Maximum Supported Connection Speed | Up to 100G |
| Operating Environment | Indoor |
FAQs
What is the Ubiquiti UACC-OFC-S2-LULU-1M-50?
It is a 50-pack of 1-meter OS2 single-mode duplex fiber optic patch cables with LC UPC connectors.
What connectors does this fiber cable use?
Each cable uses duplex LC UPC connectors at both ends.
What fiber type does this cable use?
The cable uses OS2 single-mode fiber for duplex optical networking.
How many cables are included?
The UACC-OFC-S2-LULU-1M-50 is supplied as a pack of 50 individual 1-meter cables.
What is the cable jacket made from?
The jacket is made from Low Smoke Zero Halogen (LSZH) material and has a yellow finish.
