Detailed Specifications
Overview

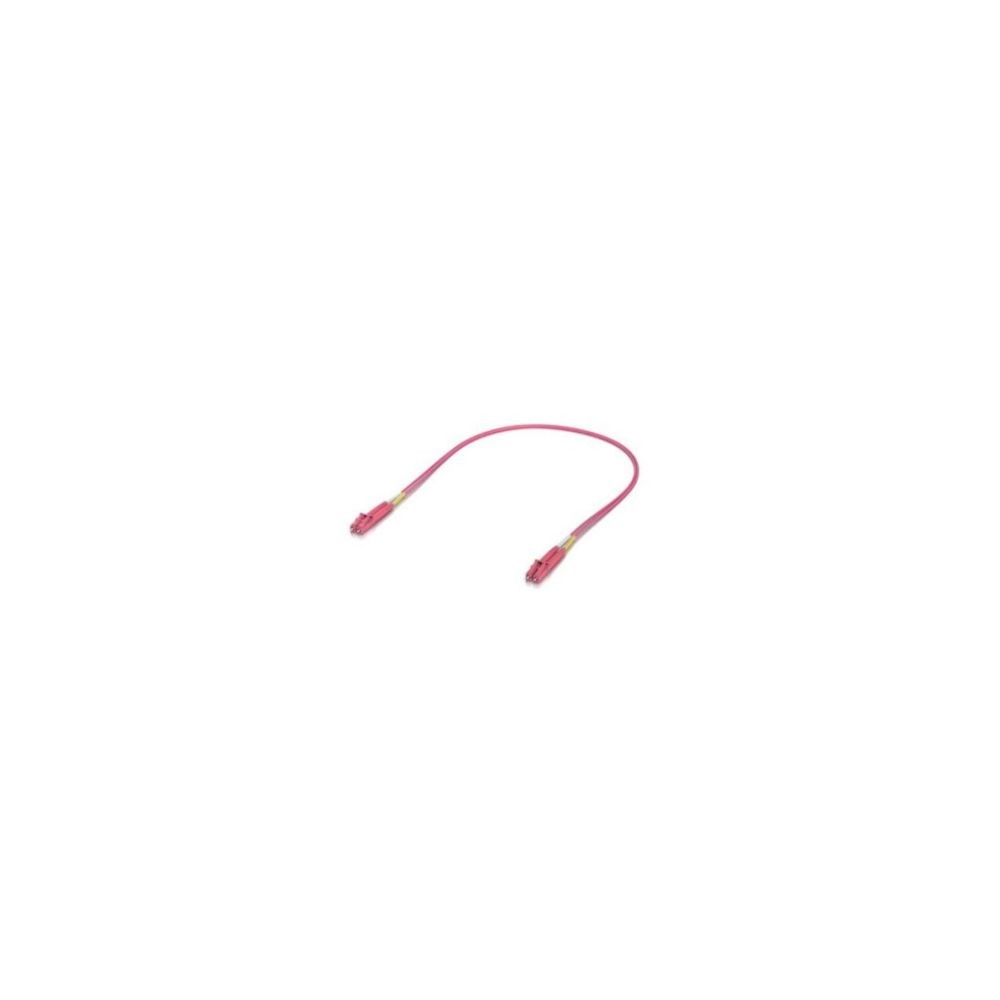

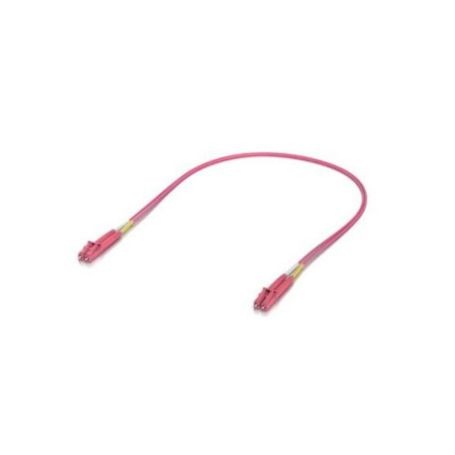

The Ubiquiti UACC-OFC-M2-LULU-0.5M-50 is a 50-pack of 0.5-meter UniFi OM4 multimode fiber optic patch cables. Each cable uses duplex LC UPC connectors and a low-smoke zero-halogen (LSZH) jacket for indoor optical network connections.
Optical Connectivity
Each cable uses OM4 multimode fiber with 850 nm and 1300 nm operating wavelengths. The duplex LC UPC configuration provides two optical fiber paths for bidirectional optical connectivity between compatible multimode fiber interfaces.
Technical Information
Ubiquiti specifies a maximum insertion loss of 0.3 dB, minimum return loss of 35 dB, repeatability of 0.1 dB or less, and durability of 0.2 dB or less after 1,000 mating cycles.
Compatibility
The UACC-OFC-M2-LULU-0.5M-50 is intended for compatible OM4 multimode optical interfaces using duplex LC UPC connections. Connected equipment must support the appropriate multimode fiber and LC UPC interface.
Key Features
- 50 cables included in the pack
- 0.5-meter cable length per cable
- OM4 multimode fiber construction
- Duplex LC UPC connectors
- 2 mm LSZH jacket
Applications
- Short-distance indoor fiber patching
- Data center fiber connections
- Network equipment interconnection
- Fiber patch-panel and rack connectivity
- High-density installations requiring multiple short OM4 links
DC Supplies Product Note
This MPN is specifically the 0.5-meter 50-pack configuration. Verify the required cable length and quantity before ordering, particularly when comparing it with the single-unit and other-length UACC-OFC-M2-LULU variants.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-M2-LULU-0.5M-50 |
| Product Type | Fiber Optic Patch Cable 50-Pack |
| Product Family | UniFi |
| Pack Quantity | 50 cables |
| Cable Length | 0.5 m (1.6 ft) per cable |
| Fiber Mode | OM4 Multimode |
| Connector Type | Duplex LC UPC |
| Connector Configuration | LC UPC to LC UPC |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Diameter | 0.08 in (2 mm) |
| Jacket Color | Rose |
| Operating Wavelength | 850 / 1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
| Operating Environment | Indoor |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
| Depth | Not specified by manufacturer |
| Width | Not specified by manufacturer |
| Height | Not specified by manufacturer |
| Weight | Approx. 1.47 lb (0.665 kg), retailer-listed |
| UPC / EAN | 810084697702 |
FAQs
How many cables are included in the UACC-OFC-M2-LULU-0.5M-50?
The package contains 50 fiber optic patch cables.
What is the length of each cable?
Each cable is 0.5 meter long, approximately 1.6 feet.
