Detailed Specifications
Overview

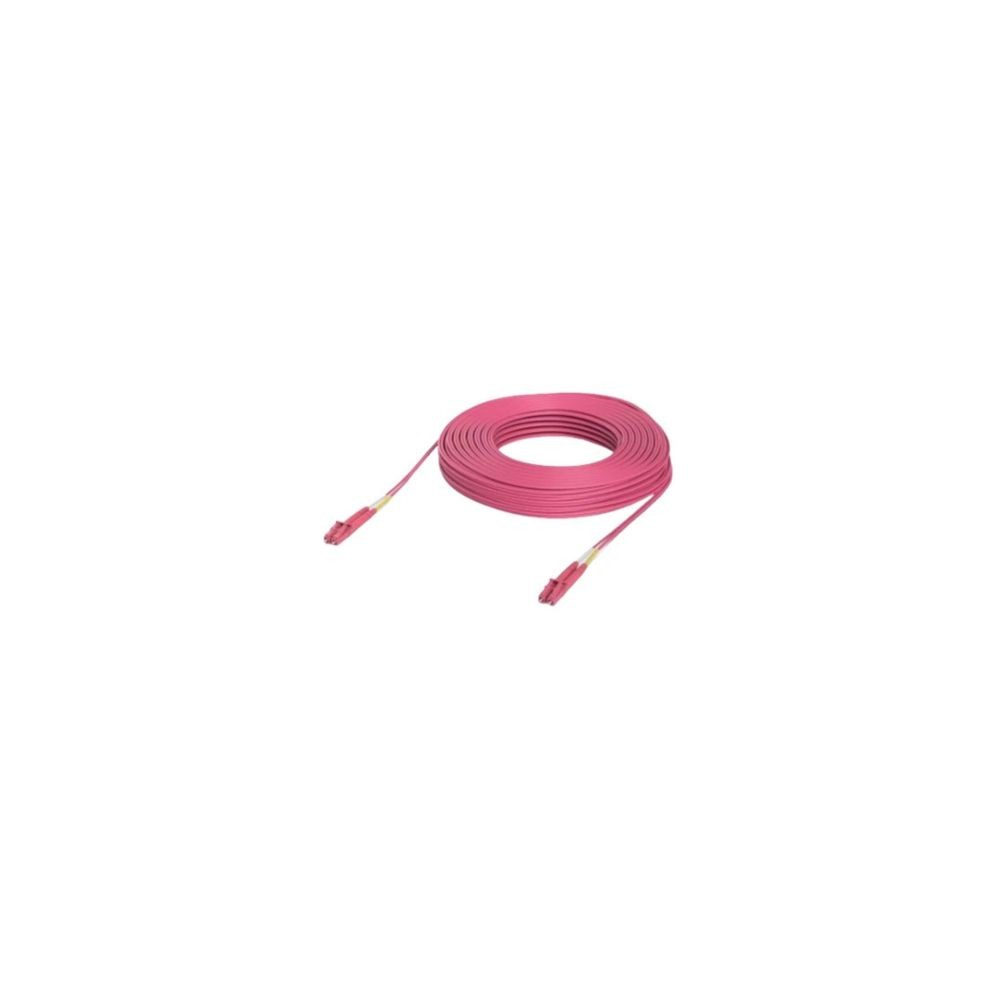

The Ubiquiti UACC-OFC-S2-LULU-30M is a 30-meter UniFi OS2 single-mode fiber optic patch cable designed for indoor optical network connections. It uses duplex LC UPC connectors and a low-smoke zero-halogen (LSZH) jacket.
Optical Connectivity
The cable uses OS2 single-mode fiber and supports 1310 nm and 1550 nm operating wavelengths. Its duplex LC UPC configuration provides two optical fiber paths for bidirectional optical network connectivity between compatible fiber interfaces.
Technical Information
Ubiquiti specifies a maximum insertion loss of 0.3 dB, minimum return loss of 50 dB, and repeatability of 0.1 dB or less. Durability is specified at 0.2 dB or less after 1,000 mating cycles.
Compatibility
The UACC-OFC-S2-LULU-30M is intended for compatible OS2 single-mode fiber interfaces using duplex LC UPC connections. Connected equipment must support single-mode optical transmission and the appropriate LC UPC interface.
Key Features
- 30-meter OS2 single-mode fiber cable
- Duplex LC UPC connectors
- 2 mm LSZH cable jacket
- 1310 nm and 1550 nm operating wavelengths
- Insertion loss of ≤ 0.3 dB
Applications
- Indoor single-mode fiber network connections
- Fiber uplinks between compatible network devices
- Data center and structured fiber installations
- Longer-distance optical interconnections using LC UPC interfaces
- High-bandwidth network links using compatible single-mode optics
DC Supplies Product Note
Verify that both connected devices use compatible duplex LC UPC single-mode interfaces before ordering. This cable is OS2 single-mode fiber and should not be confused with Ubiquiti's OM4 multimode LC UPC cable family.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-S2-LULU-30M |
| Product Type | Fiber Optic Patch Cable |
| Product Family | UniFi |
| Cable Length | 30 m (98.4 ft) |
| Fiber Mode | OS2 Single-Mode |
| Fiber Category | OS2 |
| Connector Type | Duplex LC UPC |
| Connector Configuration | LC UPC to LC UPC |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Diameter | 0.08 in (2 mm) |
| Jacket Color | Yellow |
| Operating Wavelength | 1310 / 1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
| Operating Environment | Indoor |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
| Depth | Not specified by manufacturer |
| Width | Not specified by manufacturer |
| Height | Not specified by manufacturer |
| Weight | Approx. 5.29 lb |
FAQs
What type of fiber is used in the UACC-OFC-S2-LULU-30M?
It uses OS2 single-mode optical fiber.
What connectors does this cable use?
The cable uses duplex LC UPC connectors at both ends.
How long is the UACC-OFC-S2-LULU-30M?
The cable is 30 meters long, equivalent to approximately 98.4 feet.
What wavelengths does this OS2 cable support?
Ubiquiti specifies 1310 nm and 1550 nm operating wavelengths.
What is the cable jacket made from?
The cable uses a low-smoke zero-halogen (LSZH) jacket with a 2 mm diameter.
