Overview

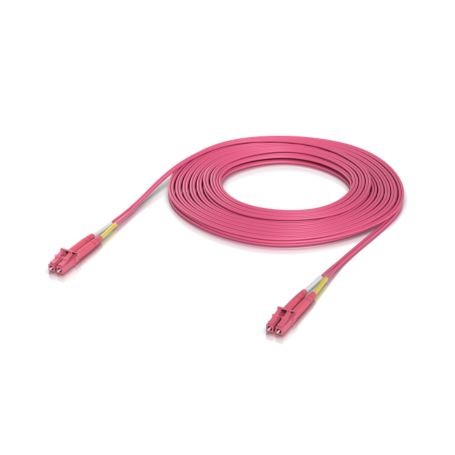

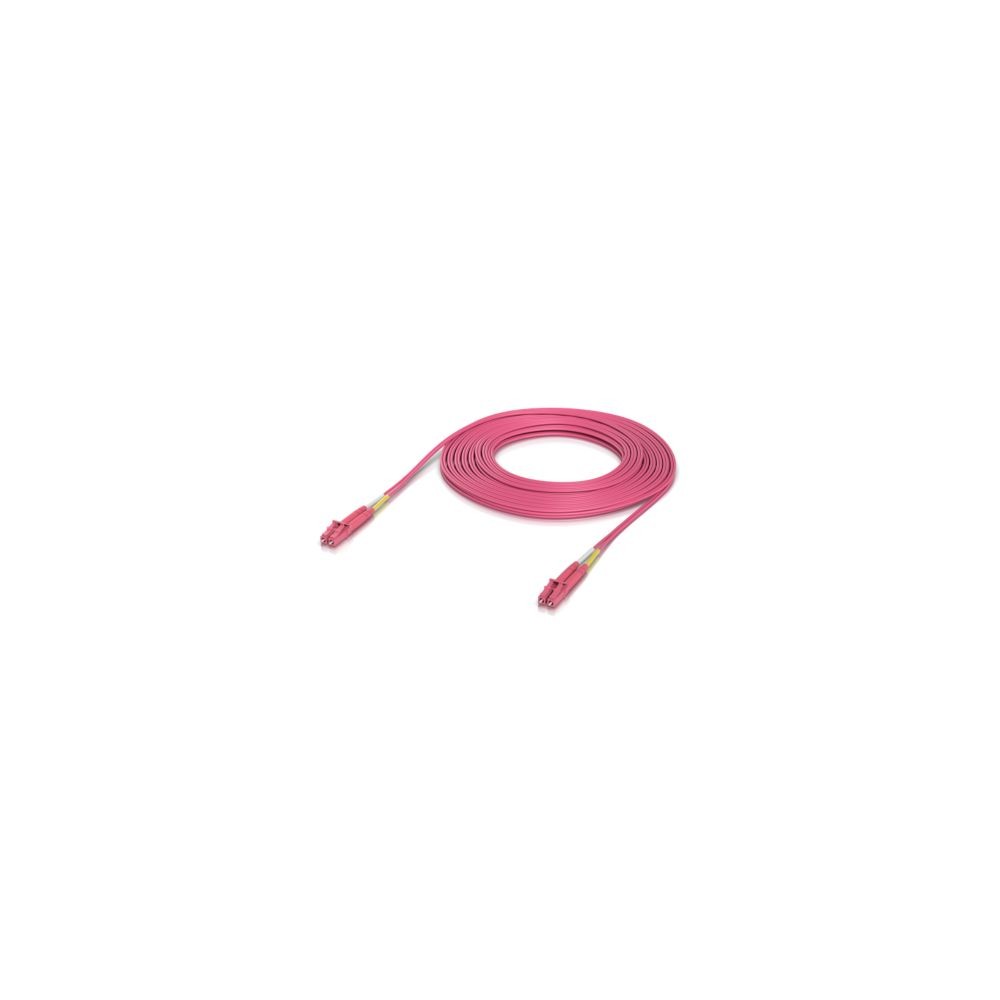

The Ubiquiti UACC-OFC-M2-LULU-30M is a 30-meter UniFi OM4 multimode fiber patch cable designed for indoor optical network connections. It uses duplex LC UPC connectors at both ends and a 2 mm low-smoke zero-halogen (LSZH) jacket.
Optical Connectivity
This cable uses OM4 multimode optical fiber with 850 nm and 1300 nm operating wavelengths. The duplex LC UPC configuration provides two optical fiber paths for bidirectional network links between compatible fiber interfaces.
Technical Information
The UACC-OFC-M2-LULU-30M has a maximum insertion loss of 0.3 dB, minimum return loss of 35 dB, and repeatability of 0.1 dB or less. Ubiquiti specifies durability of 0.2 dB or less over 1,000 mating cycles.
Compatibility
The cable is intended for compatible OM4 multimode fiber interfaces using duplex LC UPC connections. The connected equipment must support multimode optical transmission and the appropriate LC UPC interface.
Key Features
- 30-meter OM4 multimode fiber length
- Duplex LC UPC connectors
- 2 mm low-smoke zero-halogen (LSZH) jacket
- 850/1300 nm operating wavelengths
- Insertion loss of ≤ 0.3 dB
Applications
- Indoor fiber network interconnections
- OM4 multimode links between compatible network equipment
- Data center and structured fiber installations
- High-bandwidth short-reach optical connections
- Fiber uplink and equipment-to-equipment connections using duplex LC UPC interfaces
DC Supplies Product Note
When ordering, verify that both connected devices use duplex LC UPC multimode interfaces and that OM4 multimode fiber is appropriate for the intended optical link.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-M2-LULU-30M |
| Product Type | Fiber Optic Patch Cable |
| Product Family | UniFi |
| Cable Length | 30 m (98.4 ft) |
| Fiber Mode | OM4 Multimode |
| Fiber Specification | OM4 50/125 µm |
| Connector Type | Duplex LC UPC |
| Connector Configuration | LC UPC to LC UPC |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Diameter | 0.08 in (2 mm) |
| Jacket Color | Rose |
| Operating Wavelength | 850 / 1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB after 1,000 mating cycles |
| Operating Environment | Indoor |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
| Depth | Not published by manufacturer |
| Width | Not published by manufacturer |
| Height | Not published by manufacturer |
| Weight | Approx. 0.63 lb net, reseller-listed |
FAQs
What type of fiber is used in the UACC-OFC-M2-LULU-30M?
It uses OM4 50/125 µm multimode optical fiber.
What connectors does this cable use?
The cable uses duplex LC UPC connectors with LC UPC connectivity at both ends.
How long is the UACC-OFC-M2-LULU-30M?
The cable length is 30 meters, equivalent to approximately 98.4 feet.
What is the jacket material?
The cable uses a low-smoke zero-halogen (LSZH) jacket with a 2 mm diameter.
What wavelengths does the cable support?
Ubiquiti specifies 850 nm and 1300 nm operating wavelengths.
Does Ubiquiti publish the cable's physical Depth, Width, and Height?
No. Ubiquiti's official technical specifications provide the cable length and jacket diameter but do not specify overall product Depth, Width, or Height. Packaging dimensions should not be treated as product dimensions.
