Overview

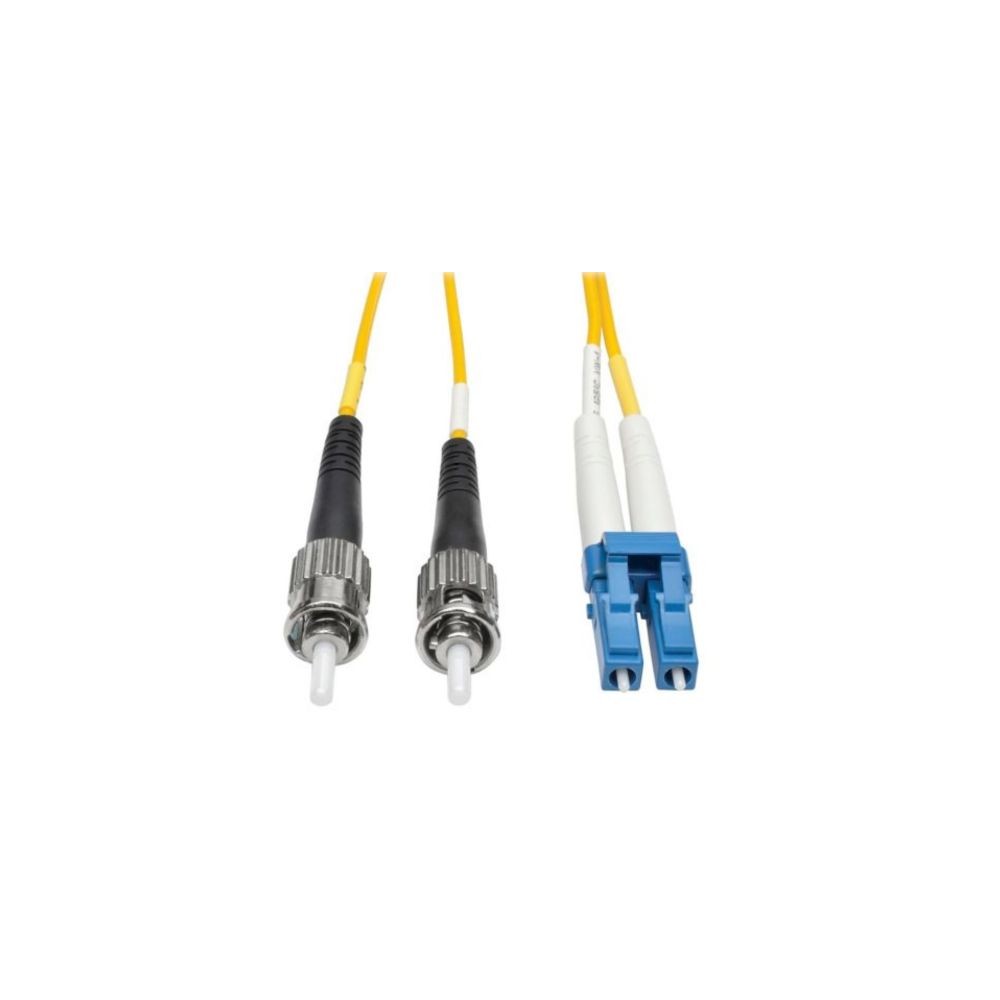

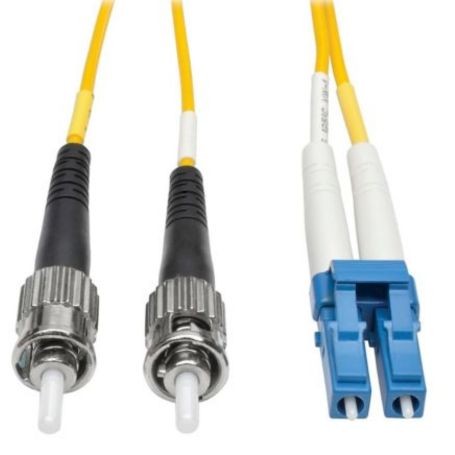

The Tripp Lite N368-03M is a preterminated duplex singlemode fiber patch cable designed for connecting compatible fiber-optic networking equipment. It uses 9/125 micron OS2 singlemode fiber with LC duplex connectors on one end and ST duplex connectors on the other.
Fiber and Connector Configuration
The cable contains two optical fibers and provides an LC duplex male connector-to-ST duplex male connector configuration. Its UPC-polished ends support low-loss optical connections, while the yellow jacket identifies the cable as singlemode fiber for easier identification in high-density installations.
Performance and Compatibility
The N368-03M is specified for OS2 singlemode operation and supports networking applications ranging from 1 GbE through higher-bandwidth environments, including 10, 25, 40, 100 and 400 GbE applications where the connected equipment and optical transceivers support the required standards.
Construction and Environmental Characteristics
The 3-meter cable uses a yellow LSZH jacket with an OFNR jacket rating. It is designed for use with compatible singlemode duplex fiber-optic hardware or network interface cards requiring LC/ST connectivity. The specified operating temperature range is -20°C to 60°C.
Key Features
- 3-meter duplex singlemode fiber patch cable
- 9/125 micron OS2 fiber construction
- LC duplex male to ST duplex male connectors
- UPC endface polish with two optical fibers
- Yellow LSZH jacket with OFNR rating
Applications
The N368-03M can be used for fiber connections between compatible network hardware, fiber-optic patching equipment and NICs that require duplex singlemode LC/ST connectivity. It is suited to enterprise network and data-center fiber patching applications.
DC Supplies Product Note
Connector type and fiber mode must match the equipment at both ends of the link. The N368-03M uses duplex LC on one end and duplex ST on the other, with OS2 singlemode fiber, so it should not be substituted for a multimode or differently terminated cable without confirming equipment compatibility.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | N368-03M |
| Product Type | Preterminated Fiber Patch Cable |
| Fiber Technology | Singlemode |
| Optical Mode | OS2 |
| Fiber Type | 9/125 |
| Number of Fibers | 2 |
| Cable Length | 3 m (9.8 ft) |
| Connector A | LC Duplex Male |
| Connector B | ST Duplex Male |
| Endface Polish | UPC |
| Jacket Color | Yellow |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Insertion Loss | ≤ 0.30 dB |
| Attenuation at 1310 nm | 0.36 dB/km |
| Attenuation at 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 20 mm dynamic; 10 mm static |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 5% to 85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Warranty | Limited lifetime |
FAQs
What type of fiber is used in the N368-03M?
The N368-03M uses duplex 9/125 micron OS2 singlemode fiber.
What connectors does this cable have?
It has an LC duplex male connector on one end and an ST duplex male connector on the other.
How long is the N368-03M?
The cable length is 3 meters, approximately 9.8 feet.
Is the N368-03M suitable for singlemode networking?
Yes. It is designed for duplex OS2 singlemode fiber connections and is specified for compatible fiber-optic networking hardware.
What does the yellow jacket indicate?
The yellow jacket identifies the cable as singlemode fiber, helping distinguish it from other fiber types in high-density installations.
