Detailed Specifications

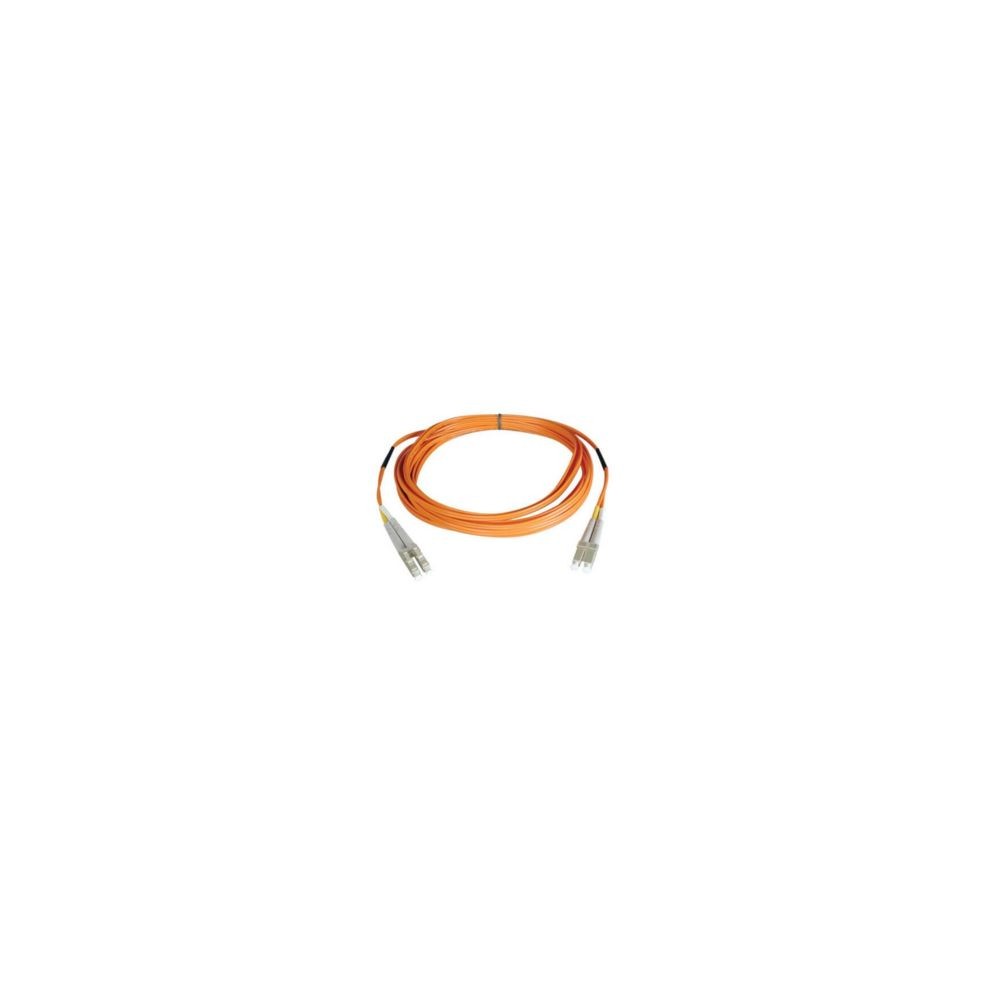

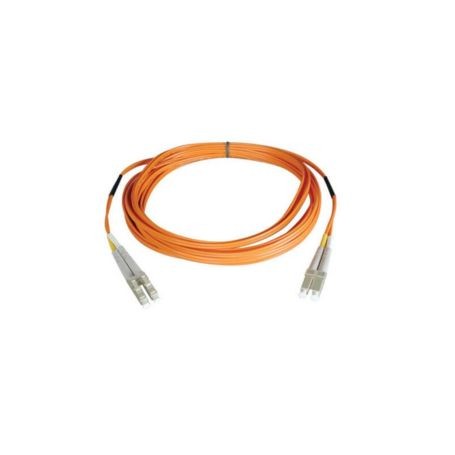

Eaton N520-01M 1m LC to LC Duplex Multimode OM2 Fiber Patch Cable
Overview :
The Eaton Tripp Lite Series N520-01M is a 1-meter duplex multimode 50/125 OM2 fiber patch cable engineered for high-speed optical data transmission in network switchboards, enterprise data centers, and telecommunications closets. Designed to bridge connections between active fiber switches, optical transceivers, and patch panels, it minimizes signal attenuation and insertion loss across short-distance optical links.
Featuring duplex LC male to LC male connectors housed in a protective orange PVC jacket, this cable allows network technicians to establish instant 1 Gbps, 10 Gbps, and 25 Gbps fiber connections. The 50/125 micron zipcord structure offers twice the bandwidth of standard 62.5/125 micron fiber while maintaining backward compatibility with legacy 62.5 micron infrastructure.
Deployable in standard 19-inch equipment racks, SAN storage networks, and high-density distribution frames. Compatible with all hardware requiring OM2 50/125 multimode fiber and duplex LC interfaces. Do NOT use in single-mode fiber installations or for outdoor runs exposed to direct weather elements without proper conduit protection.
Key Features :
Duplex LC to LC connectors ensure high-density optical patching.
50/125 OM2 multimode fiber provides high bandwidth for 10GbE links.
Premium PVC zipcord construction offers reliable strain relief.
Low insertion loss rating preserves signal integrity across optical paths.
Bright orange jacket enables quick OM2 multimode cable identification.
Specifications :
| Brand | Eaton |
| Part Number | N520-01M |
| Product Type | Preterminated Fiber Patch Cable |
| Fiber Type | Multimode 50/125 (OM2) |
| Cable Length | 1 Meter (3.3 Feet) |
| Connectors | LC Male to LC Male (Duplex) |
| Fiber Count | 2 Fibers (Zipcord) |
| Core / Cladding Diameter | 50 / 125 Microns |
| Cable Jacket Material | PVC (OFNR Rated) |
| Cable Jacket Color | Orange |
| Network Speed Support | 1 Gbps / 10 Gbps / 25 Gbps |
| Attenuation @ 850nm | 3.0 dB/km Max |
| Insertion Loss | ≤ 0.20 dB |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Environmental Standards | RoHS, REACH |
