Detailed Specifications

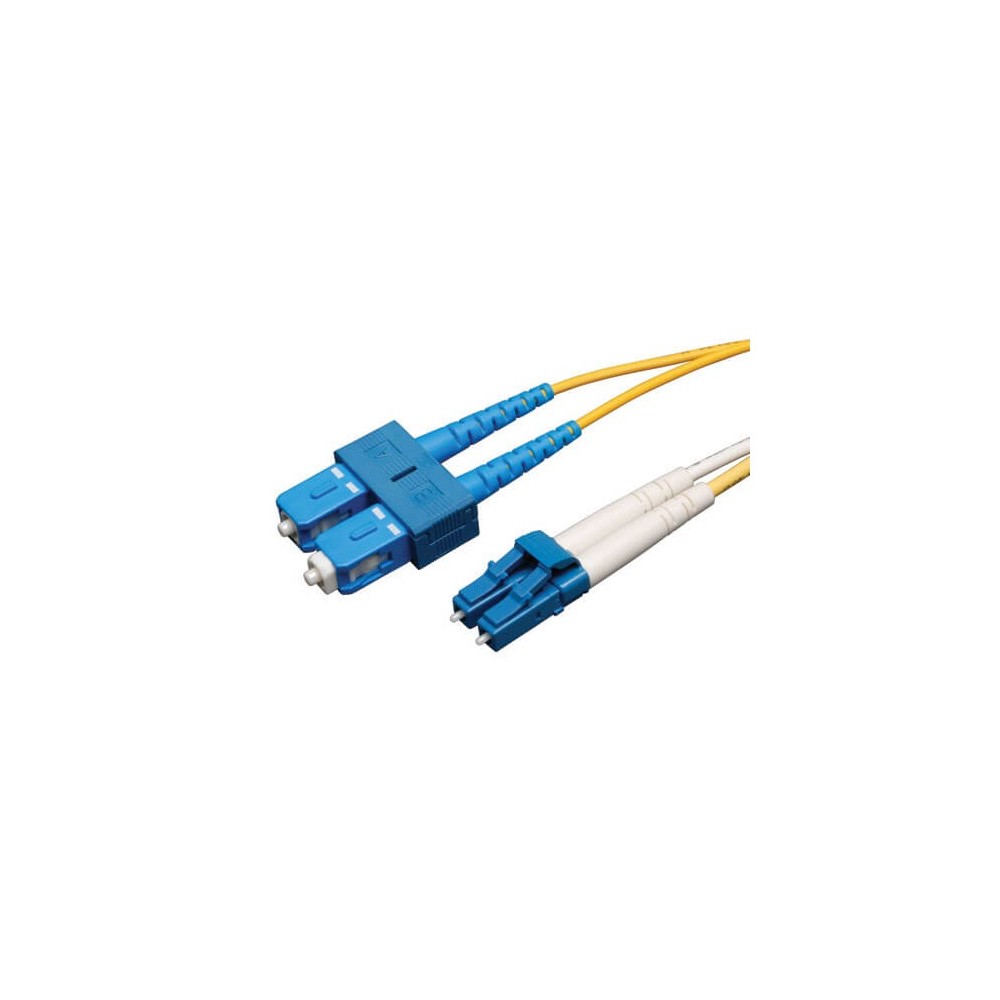

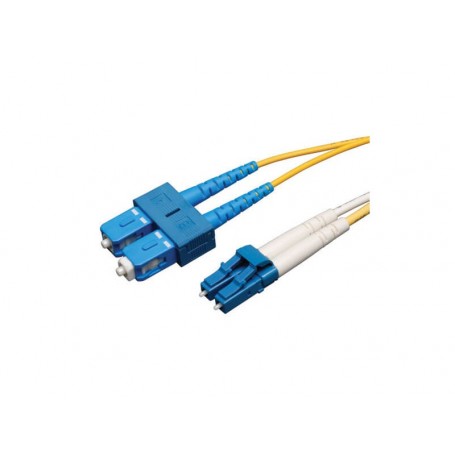

Eaton N366-02M 2M Duplex Fiber Patch Cable Compatible Tripp Lite
Overview:
The Eaton N366-02M is a Tripp Lite series preterminated fiber patch cable designed for singlemode fiber networking applications. It uses 9/125 OS2 duplex fiber with LC duplex connectors on one end and SC duplex connectors on the other. The cable has a yellow jacket and is suitable for network closets, server rooms, data centers and other fiber infrastructure applications.
Key Features :
- 2-meter (6.6 ft.) fiber cable length
- Duplex singlemode fiber
- 9/125 OS2 fiber
- LC duplex to SC duplex connectors
- Yellow cable jacket
- OFNR riser-rated construction
- LSZH cable jacket material
- Glass fiber construction
- UPC endface polish
- Suitable for high-speed fiber networking
- Supports 1, 10, 25, 40, 100 and 400 Gbps applications
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N366-02M |
| Product Type | Preterminated Fiber Patch Cable |
| Cable Type | Duplex Singlemode |
| Fiber Type | 9/125 |
| Optical Mode | OS2 |
| Number of Fibers | 2 |
| Cable Length | 2 m (6.6 ft.) |
| Connector A | LC Duplex Male |
| Connector B | SC Duplex Male |
| Endface Polish | UPC |
| Cable Jacket Color | Yellow |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Core Diameter | 9 µm max |
| Clad Diameter | 125 µm |
| Insertion Loss | ≤ 0.30 dB |
| Attenuation at 1310 nm | 0.36 dB/km |
| Attenuation at 1550 nm | 0.22 dB/km |
