Detailed Specifications
Eaton N518-01M Tripp Lite 1m Duplex Multimode 50 125 Fiber Patch Cable
Overview

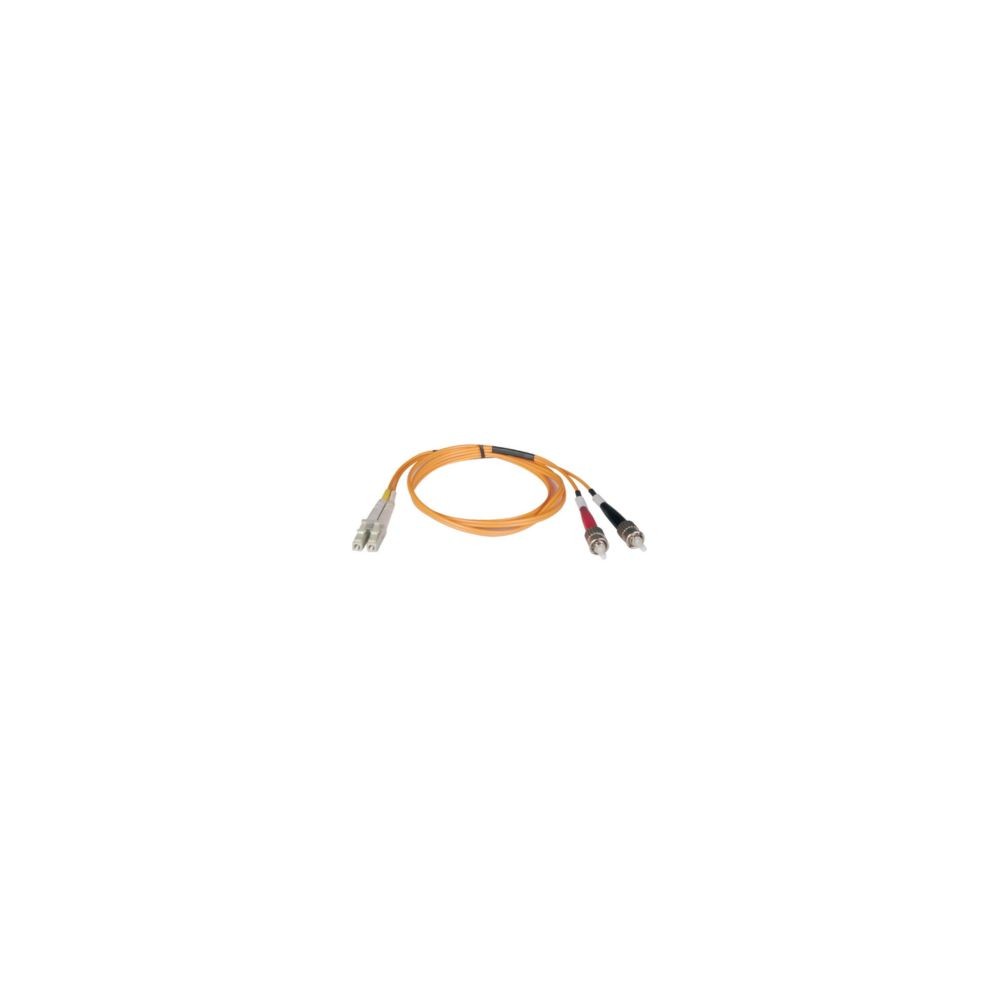

The Eaton N518-01M is a Tripp Lite by Eaton duplex multimode fiber patch cable using 50/125 µm multimode fiber with an LC duplex connector on one end and dual ST connectors on the other. The exact model is 1 m (3.3 ft) long and uses an orange zipcord-style cable.
It is designed for fiber-optic networking and Fibre Channel installations. The cable is rated for Gigabit, 10Gbps and 25Gbps network compatibility, and its 50/125 µm construction provides higher bandwidth than legacy 62.5 µm multimode fiber while remaining backward compatible with 62.5 µm systems.
Key Features
- 1 m (3.3 ft) duplex multimode fiber construction
- LC duplex to ST duplex male connectors
- 50/125 µm multimode fiber with orange jacket
- Supports 1Gbps, 10Gbps and 25Gbps network applications
- LSZH construction, OFNR rating and PC polish, with RoHS/REACH compliance
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Product Line | Tripp Lite by Eaton |
| Part Number | N518-01M |
| Product Type | Duplex Multimode Fiber Patch Cable |
| Fiber Type | Multimode |
| Fiber Size | 50/125 µm |
| Fiber Mode | Duplex |
| Connector A | LC Duplex |
| Connector B | ST Duplex |
| Connector Gender | Male-to-Male |
| Cable Length | 1 m / 3.3 ft |
| Cable Type | Twin Zip / Zipcord |
| Cable Color | Orange |
| Jacket | LSZH |
| Flame Rating | OFNR |
| Polish | PC |
| Insertion Loss | 0.20 dB, LC / 0.20 dB, ST |
| Attenuation @ 850 nm | 3.0 dB/km |
| Minimum Bend Radius | 20 mm dynamic / 10 mm static |
| Network Compatibility | 1Gbps / 10Gbps / 25Gbps |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 5–85% RH, non-condensing |
| Storage Humidity | 35–65% RH, non-condensing |
| Compliance | RoHS, REACH |
| Warranty | Lifetime Limited |
| Shipping Weight | 0.04 lb |
