Detailed Specifications
Eaton N816-03M 10Gb Duplex Multimode OM3 Fiber Patch Cable
Overview

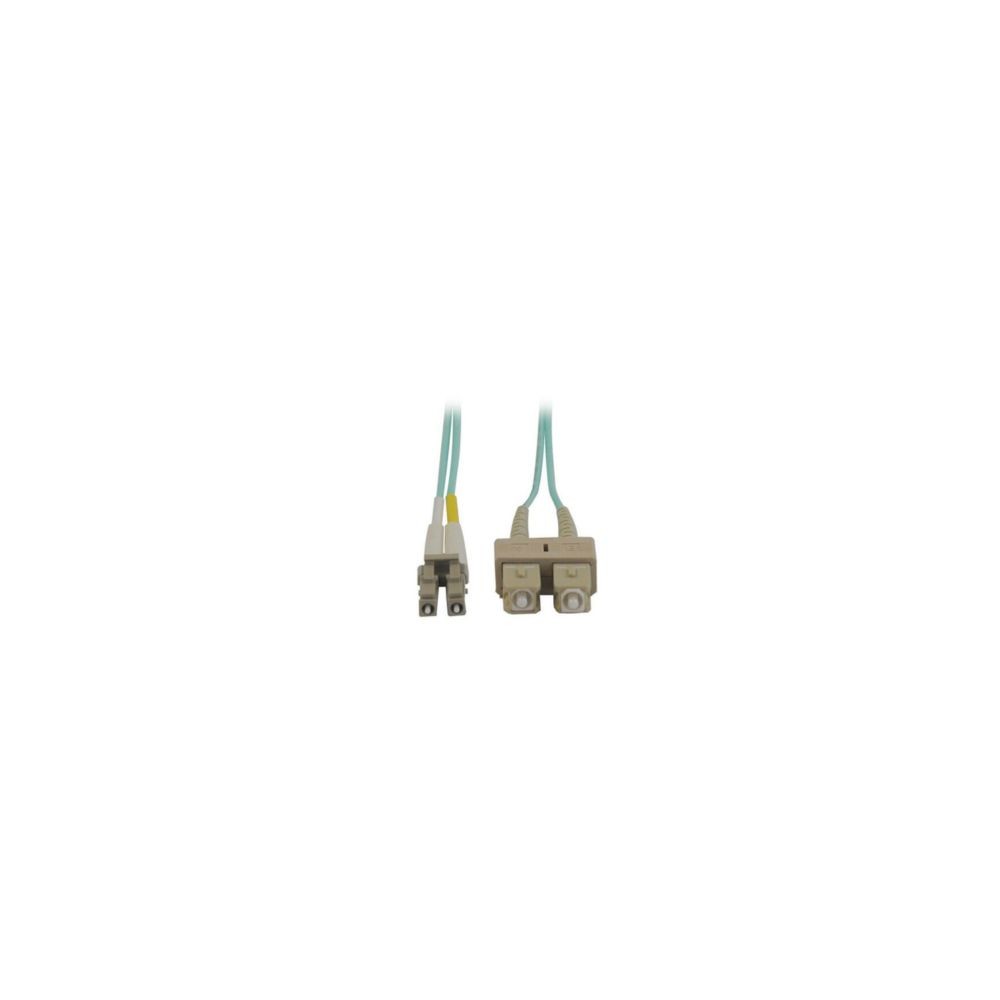

The Eaton N816-03M, from the Tripp Lite by Eaton connectivity portfolio, is a 10Gb duplex multimode 50/125 OM3 LSZH fiber patch cable with SC duplex male-to-LC duplex male connectors. It has a 3 m (10 ft) length and an aqua jacket for multimode fiber identification.
The laser-optimized multimode fiber (LOMMF) is designed for 10Gb Ethernet applications, with a maximum specified 10Gb transmission distance of 300 m at 850 nm. It is also backward compatible with existing 50/125 µm multimode fiber and can be used with VCSEL and LED laser light sources.
The N816-03M is suited to LAN, SAN, data-center, server-room, and high-speed fiber interconnect deployments. Its LSZH aqua jacket and OFNR rating support appropriate structured-fiber installations where these cable requirements apply.
Key Features
- 10Gb duplex multimode OM3 fiber supports high-speed Ethernet networking applications.
- SC duplex male to LC duplex male connectors provide direct connectivity between compatible fiber-network equipment.
- 50/125 µm laser-optimized multimode fiber is designed for 850 nm VCSEL-based 10Gb transmission.
- 3 m (10 ft) length with aqua LSZH jacket provides standard patching reach and multimode identification.
- IEEE 802.3ae and TIA LOMMF compliant construction supports applicable 10Gb fiber-network deployments.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite by Eaton |
| Model | N816-03M |
| Product Type | Duplex Multimode Fiber Patch Cable |
| Cable Type | Fiber Optic Patch Cable |
| Fiber Type | Multimode |
| Optical Mode | OM3 |
| Core / Cladding | 50/125 µm |
| Cable Length | 3 m (10 ft) |
| Fiber Configuration | Duplex |
| Number of Fibers | 2 |
| Connector A | SC Duplex Male |
| Connector B | LC Duplex Male |
| Cable Jacket | LSZH |
| Jacket Color | Aqua |
| Cable Jacket Rating | OFNR |
| Network Application | 10Gb Ethernet |
| Maximum 10Gb Distance | 300 m @ 850 nm |
| Light Sources | VCSEL and LED |
| Standards | IEEE 802.3ae, TIA LOMMF |
| Compliance | RoHS |
| Warranty | Lifetime limited warranty |
| UPC | 037332124838 |
| Country of Origin | China |
