Detailed Specifications
Eaton N520-50M Duplex Multimode 50/125 Fiber Patch Cable
Overview

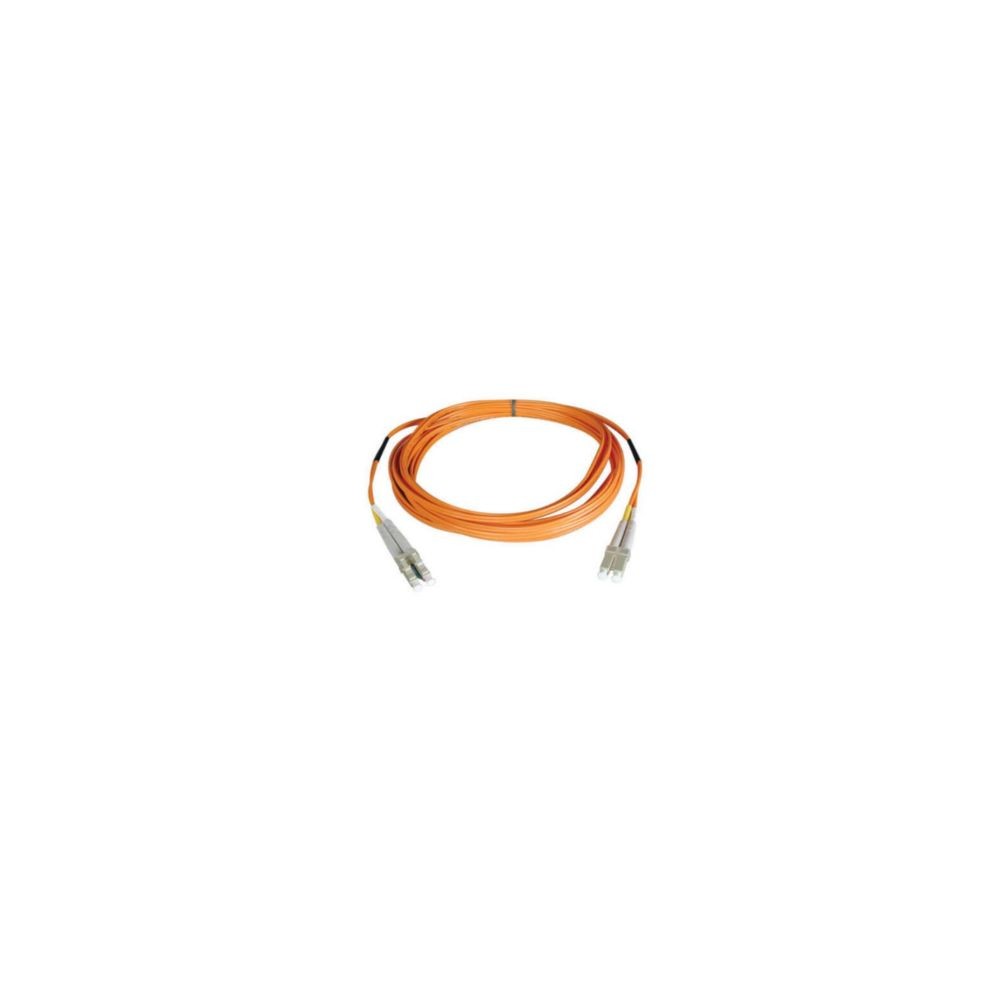

The Eaton N520-50M, from the Tripp Lite by Eaton product line, is a 50 m (164 ft.) duplex multimode fiber optic patch cable designed for fiber-network and Fibre Channel installations. It uses 50/125 µm multimode glass fiber with LC duplex male connectors on both ends.
The cable uses a duplex zipcord construction and is OM2 optical mode. It is optimized for Gigabit and 10Gbps networks, while also providing backward compatibility with 62.5 µm fiber. The cable has an orange jacket, gray connectors, PC endface polish, and OFNR-rated construction.
Key Features
- 50 m (164 ft.) 50/125 µm OM2 duplex multimode fiber cable
- LC duplex male-to-LC duplex male connector configuration
- All-glass graded-index fiber with duplex zipcord construction
- Optimized for Gigabit and 10Gbps networking and backward compatible with 62.5 µm fiber
- OFNR-rated cable with 0.20 dB typical insertion loss per connector
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Product Line | Tripp Lite by Eaton |
| Part Number | N520-50M |
| Product Type | Duplex Multimode Fiber Patch Cable |
| Fiber Type | 50/125 µm Multimode |
| Optical Mode | OM2 |
| Number of Fibers | 2 |
| Fiber Construction | All-glass graded index |
| Cable Construction | Duplex Zipcord |
| Cable Length | 50 m (164 ft.) |
| Connector A | LC Duplex Male |
| Connector B | LC Duplex Male |
| Number of Connectors | 4 |
| Endface Polish | PC |
| Core Diameter | 50 ±3 µm |
| Clad Diameter | 125 ±2 µm |
| Cable Jacket | LSZH |
| Jacket Rating | OFNR |
| Cable Color | Orange |
| Connector Color | Gray |
| Insertion Loss | 0.20 dB typical |
| Attenuation | 3.5 dB/km max @ 850 nm; 1.0 dB/km max @ 1300 nm |
| Bandwidth | 220 MHz-km min @ 850 nm; 600 MHz-km min @ 1300 nm |
| Network Compatibility | 1 Gbps / 10 Gbps / 25 Gbps |
| Minimum Bend Radius | 20 mm dynamic / 10 mm static |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 5%-85% RH, non-condensing |
| Compliance | RoHS, REACH |
| Warranty | Lifetime Limited Warranty |
