Detailed Specifications

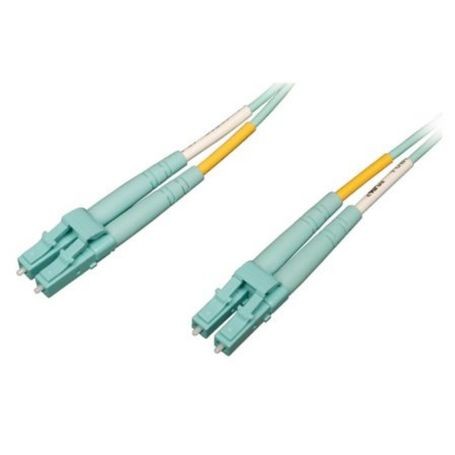

Eaton N820-20M-OM4 Fiber Patch Cable Tripp Lite 20M OM4 Duplex Multimode
Overview :
The Eaton Tripp Lite Series N820-20M-OM4 is a 20-meter (65.6-foot) pre-terminated OM4 laser-optimized multimode fiber optic patch cable, engineered for IT professionals, data center administrators, and enterprise network engineers. It solves extended-reach high-bandwidth transmission challenges between distant server racks, main distribution frames (MDFs), and intermediate distribution frames (IDFs) by delivering reliable, low-loss data and voice signals across longer runs on the data center floor.
It supports high-speed 10Gb, 40Gb, 100Gb, and 400Gb Ethernet applications, reaching up to 300 meters at an 850nm wavelength when paired with cost-effective VCSEL or LED laser sources. Built with a low-smoke zero-halogen (LSZH) aqua jacket, it limits toxic smoke emissions in poorly ventilated areas and prevents misidentification in dense cabling arrays.
Optimized for deployment in enterprise data centers, large server rooms, SAN networks, LAN backbones, and telecommunication central offices.
Fully compatible with legacy 50/125 multimode fiber solutions and OM3 infrastructure. Avoid exceeding the minimum bend radius during installation to prevent microbending attenuation losses.
Key Features :
Rated OM4 (50/125um multimode fiber) supports high-speed 40Gb/100Gb/400Gb Ethernet networks over extended runs
Laser-optimized for use with cost-effective VCSEL and LED light sources at 850nm
20-meter length bridges longer distances between rows, equipment racks, and patch panels
High-visibility Aqua LSZH jacket prevents accidental disconnection and ensures safety in confined spaces
Precision-polished LC male duplex connectors deliver low insertion loss ($le 0.2text{ dB}$)
Specifications :
| Feature | Specification |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | N820-20M-OM4 |
| Product Type | Pre-terminated Duplex Multimode Fiber Patch Cable |
| Optical Mode / Fiber Type | OM4 Multimode (50/125 um core/clad) |
| Cable Length | 20 m (65.6 ft) |
| Supported Network Speeds | 1G / 10G / 25G / 40G / 100G / 400G |
| Connector A (Side A) | LC Duplex Male (PC Polish) |
| Connector B (Side B) | LC Duplex Male (PC Polish) |
| Jacket Material | Low-Smoke Zero-Halogen (LSZH) |
| Jacket Color | Aqua |
| Minimum Bend Radius | 20 mm (Dynamic) / 10 mm (Static) |
| Operating Temperature | -4° to 158°F (-20° to 70°C) |
| Certifications / Compliance | RoHS, REACH |
