Detailed Specifications

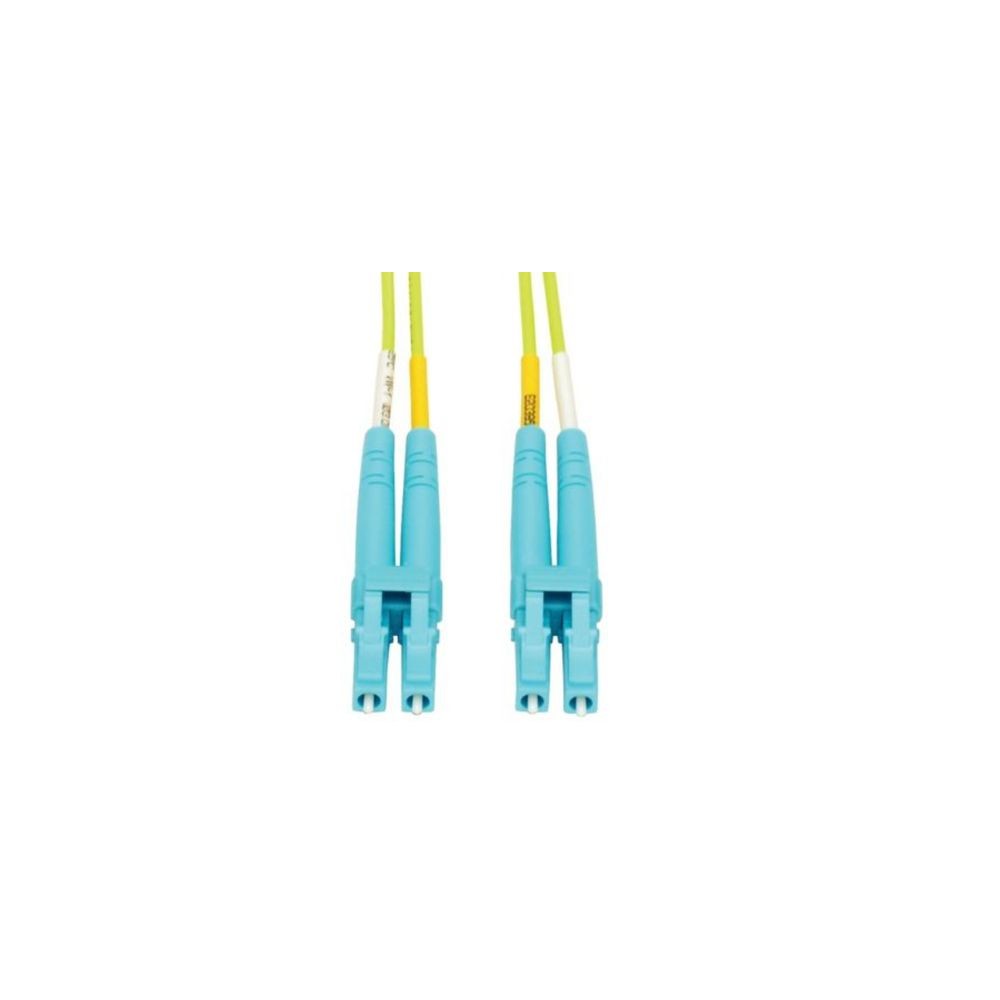

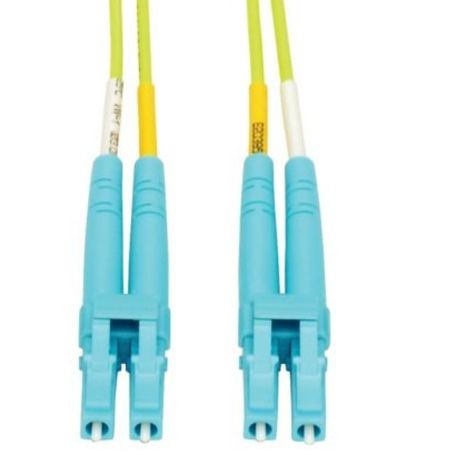

Eaton N820-10M-OM5 Tripp Lite Fiber Patch Cable 10M OM5 Duplex Multimode
Overview :
The Eaton Tripp Lite Series N820-10M-OM5 is a 10-meter (32.8-foot) pre-terminated OM5 Wide Band Multimode Fiber (WBMMF) optic patch cable, engineered for IT professionals, data center administrators, and enterprise network engineers. It solves high-bandwidth capacity bottlenecks and cabling congestion over extended distances in high-density data centers by supporting Short Wavelength Division Multiplexing (SWDM) over a single duplex fiber pair, multiplying transmission capacity without requiring additional fiber strands.
It supports high-speed 10Gb, 40Gb, 100Gb, and 400Gb Ethernet applications across a wider wavelength range (850nm to 953nm), enabling longer reach for SWDM transceivers compared to traditional OM4 fiber. Built with a low-smoke zero-halogen (LSZH) lime green jacket for immediate visual identification as OM5 infrastructure, it limits toxic smoke emissions in poorly ventilated areas and prevents cross-contamination with legacy OM3/OM4 cabling.
Optimized for deployment in modern enterprise data centers, SWDM4-enabled server arrays, SAN networks, and long-run intermediate distribution frame (IDF) backbone connections.
Fully backward compatible with OM4 and OM3 50/125 infrastructure. Avoid exceeding the minimum bend radius during installation to prevent microbending attenuation losses.
Key Features :
OM5 Wide Band Multimode Fiber (WBMMF) supports SWDM applications across 850nm to 953nm wavelengths
Multiplies duplex fiber capacity for 40Gb, 100Gb, and 400Gb networks without adding fiber strands
High-visibility Lime Green LSZH jacket provides immediate visual identification and ensures safety in confined spaces
10-meter length provides flexible, extended reach between distant server racks and distribution frames
Precision-polished LC male duplex connectors deliver low insertion loss ($le 0.2text{ dB}$)
Specifications :
| Feature | Specification |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | N820-10M-OM5 |
| Product Type | Pre-terminated Duplex Multimode Fiber Patch Cable |
| Optical Mode / Fiber Type | OM5 Wide Band Multimode (50/125 um core/clad) |
| Cable Length | 10 m (32.8 ft) |
| Supported Network Speeds | 1G / 10G / 25G / 40G / 100G / 400G (SWDM compatible) |
| Connector A (Side A) | LC Duplex Male (PC Polish) |
| Connector B (Side B) | LC Duplex Male (PC Polish) |
| Jacket Material | Low-Smoke Zero-Halogen (LSZH) |
| Jacket Color | Lime Green |
| Minimum Bend Radius | 20 mm (Dynamic) / 10 mm (Static) |
| Operating Temperature | -4° to 158°F (-20° to 70°C) |
| Certifications / Compliance | RoHS, REACH |
