Detailed Specifications
Eaton N816-15M 10Gb Duplex Multimode OM3 Fiber Patch Cable Compatible Tripp Lite
Overview :
The Eaton N816-15M is a 15-meter (50-foot) duplex multimode 50/125 OM3 fiber-optic patch cable with LC duplex and SC duplex connectors. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton's documentation identifies the N816-15M as a 10Gb Ethernet OM3 laser-optimized multimode fiber cable with an aqua LSZH jacket.
The cable uses 50/125 µm OM3 laser-optimized multimode fiber (LOMMF) and is designed for 10 Gigabit Ethernet applications, supporting transmission distances up to 300 meters at 850 nm when used with compatible equipment. It is backward compatible with existing 50/125 multimode fiber and is suitable for LAN, SAN, Fibre Channel and high-speed interconnect applications.

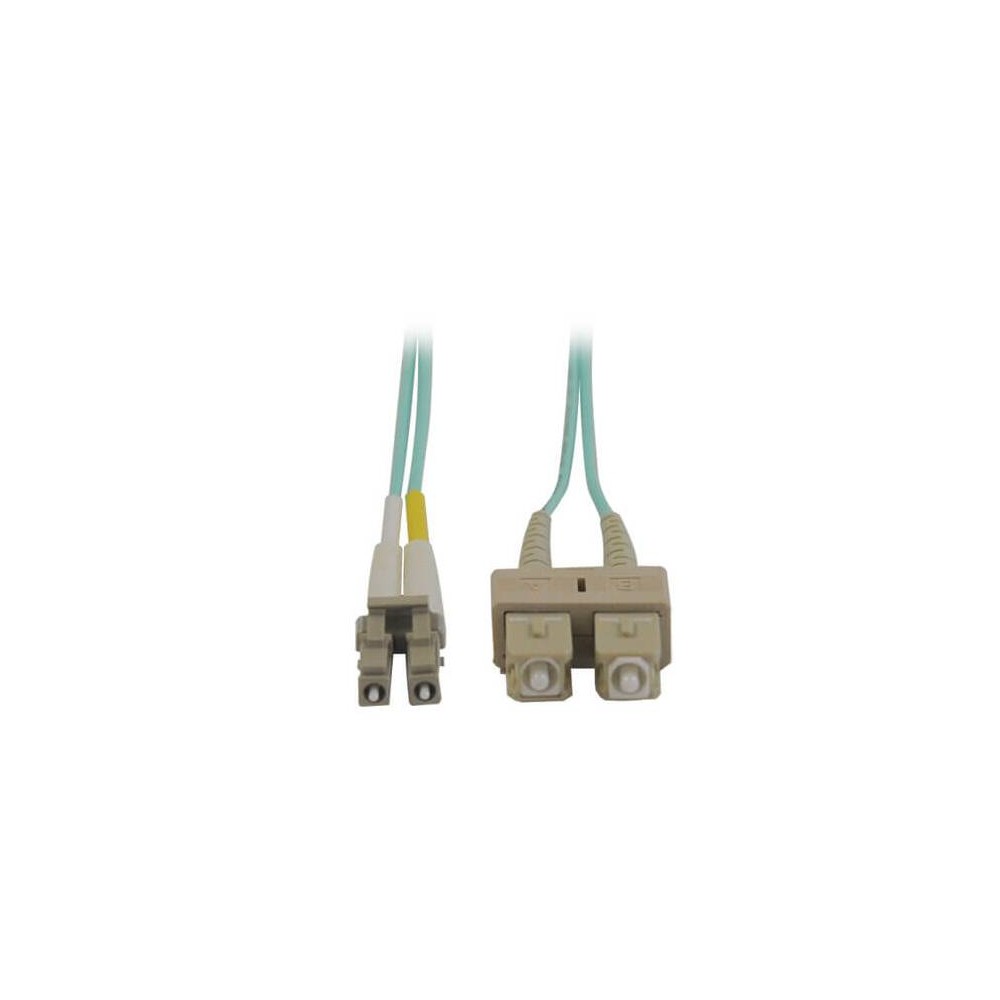

The N816-15M uses LC duplex on one end and SC duplex on the other, with two optical fibers in a duplex configuration. Its aqua low-smoke zero-halogen (LSZH) jacket and OFNR rating make it suitable for structured cabling and data-center deployments where reduced-smoke cable construction is required.
Key Features :
- 15 m (49.2-50 ft.) duplex multimode fiber patch cable
- 50/125 µm OM3 laser-optimized multimode fiber
- LC duplex to SC duplex configuration
- Two-fiber duplex construction
- Designed for 10Gb Ethernet applications
- Supports up to 300 m at 850 nm in applicable 10Gb applications
- Backward compatible with 50/125 multimode fiber
- Aqua LSZH jacket
- OFNR-rated construction
- Compatible with VCSEL and LED laser light sources
- Suitable for LAN, SAN and Fibre Channel applications
- IEEE 802.3ae and TIA LOMMF compliant
- PC-polished connector endfaces
- RoHS compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N816-15M |
| Product Type | Duplex multimode fiber patch cable |
| Fiber Type | 50/125 µm multimode |
| Optical Mode | OM3 |
| Cable Length | 15 m (49.2 ft.) |
| Number of Fibers | 2 |
| Connector A | LC Duplex |
| Connector B | SC Duplex |
| Connector Gender | Male / Male |
| Cable Construction | Duplex fiber |
| Fiber Technology | Laser-Optimized Multimode Fiber |
| Jacket Material | LSZH |
| Jacket Color | Aqua |
| Jacket Rating | OFNR |
| Endface Polish | PC |
| Maximum 10Gb Distance | 300 m @ 850 nm |
| Laser Compatibility | VCSEL / LED |
| Network Application | 10Gb Ethernet / LAN / SAN |
| Fibre Channel | Supported |
| Standards | IEEE 802.3ae, TIA LOMMF |
| Compliance | RoHS |
