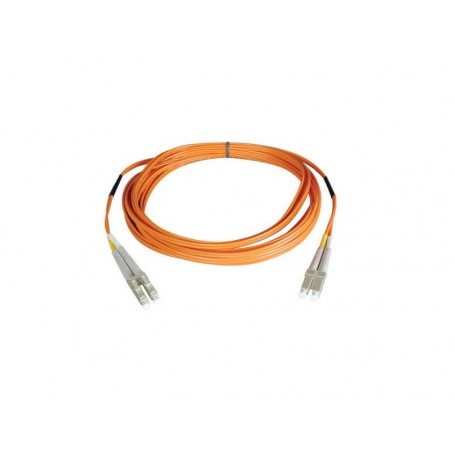

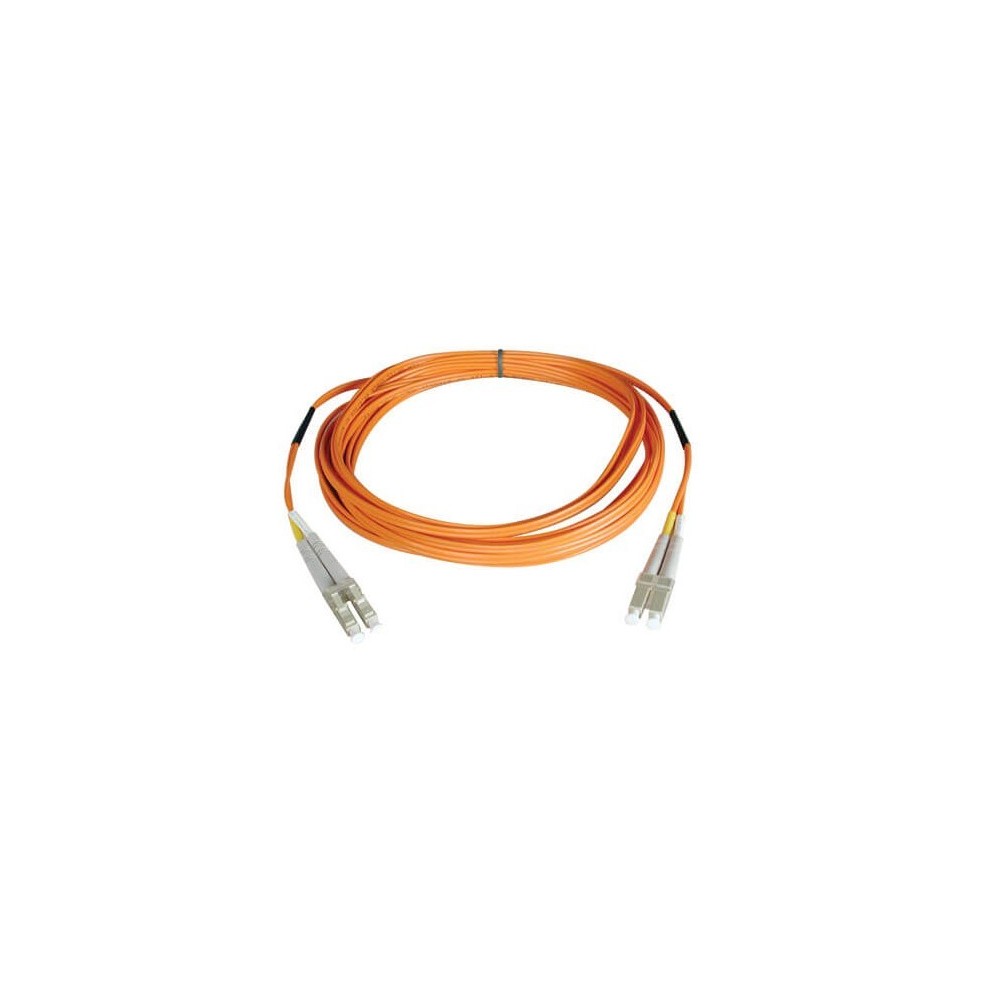

Eaton N520-03M Duplex Multimode 50/125 Fiber Patch Cable Compatible Tripp Lite
Overview :
The Eaton N520-03M is a 3-meter (10-foot) duplex multimode 50/125 fiber-optic patch cable with LC duplex male connectors on both ends. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton's catalog identifies the N520-03M as part of its LC/LC 50/125 multimode fiber cable series.
The cable uses 50/125 micron multimode fiber in a two-fiber duplex configuration. It is designed for fiber and Fibre Channel installations and provides bandwidth optimized for Gigabit and 10Gbps networking. The cable is also backward compatible with 62.5-micron fiber.
The N520-03M uses LC duplex connectors on both ends, a twin-zip/zipcord construction and an orange jacket. Eaton's catalog specifies an LSZH jacket with OFNR rating, while distributor specifications identify the cable assembly as FDDI/OFNR rated.
Key Features :
- 3 m (9.8-10 ft.) duplex multimode fiber patch cable
- 50/125 micron multimode fiber
- LC duplex male connectors on both ends
- Two-fiber duplex construction
- All-glass graded-index fiber
- Twin Zip / Zipcord construction
- Optimized for Gigabit and 10Gbps networks
- Backward compatible with 62.5-micron fiber
- Orange cable jacket
- OFNR rated
- PC endface polish
- FDDI rated
- Typical insertion loss of 0.20 dB
- Suitable for fiber and Fibre Channel installations
- RoHS compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N520-03M |
| Product Type | Duplex multimode fiber patch cable |
| Fiber Type | 50/125 multimode |
| Optical Mode | Multimode |
| Cable Length | 3 m (9.8-10 ft.) |
| Number of Fibers | 2 |
| Connector A | LC Duplex Male |
| Connector B | LC Duplex Male |
| Fiber Construction | All-glass graded index |
| Cable Construction | Twin Zip / Zipcord |
| Core Diameter | 50 ± 3 µm |
| Clad Diameter | 125 ± 2 µm |
| Primary Coating Diameter | 245 ± 15 µm |
| Secondary Coating Diameter | 900 ± 50 µm |
| Jacket Material | PVC / LSZH |
| Jacket Color | Orange |
| Jacket Rating | OFNR |
| Endface Polish | PC |
| Bandwidth @ 850 nm | 220 MHz-km minimum |
| Bandwidth @ 1300 nm | 600 MHz-km minimum |
| Attenuation @ 850 nm | 3.5 dB/km maximum |
| Attenuation @ 1300 nm | 1.0 dB/km maximum |
| Insertion Loss | 0.20 dB typical |
| Minimum Bend Radius | Not specified in verified sources |
| Network Compatibility | Gigabit / 10Gbps |
| Compliance | RoHS |
