Eaton N520-10M Duplex Multimode 50,125 Fiber Patch Cable Compatible Tripp Lite
Overview :

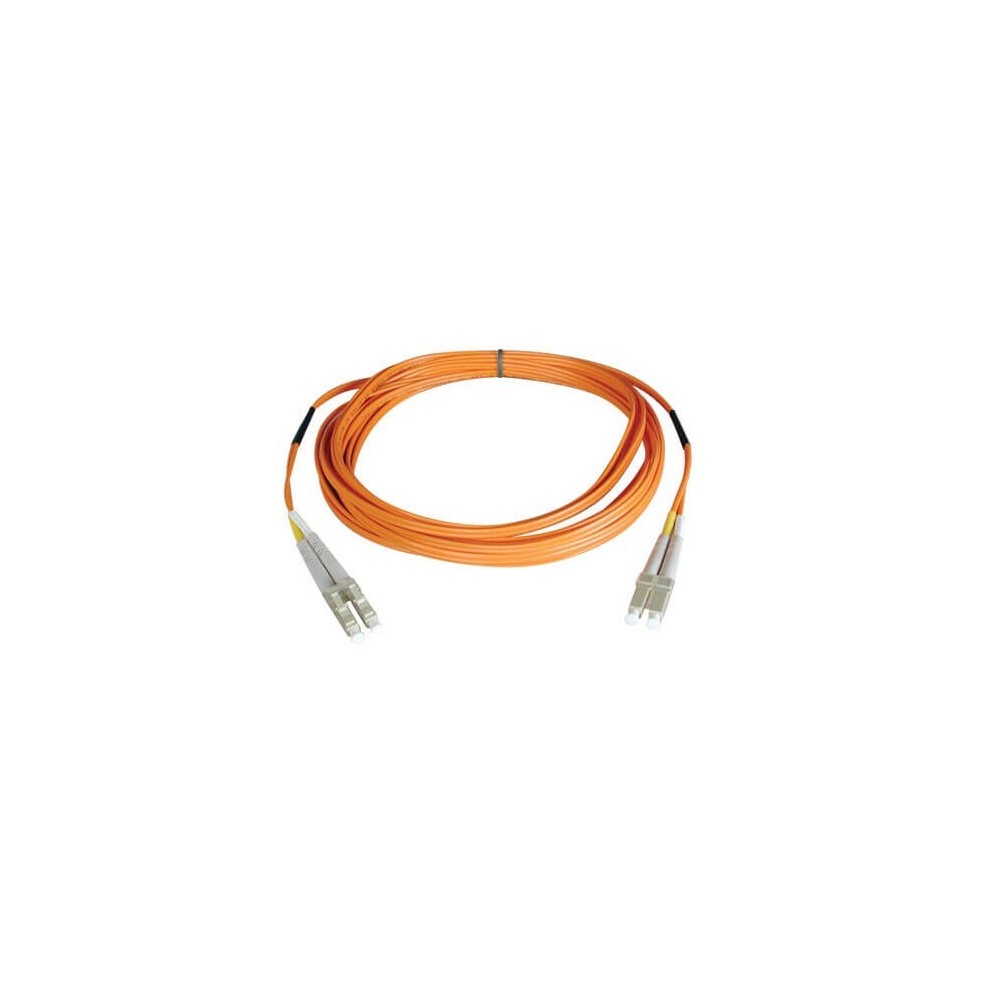

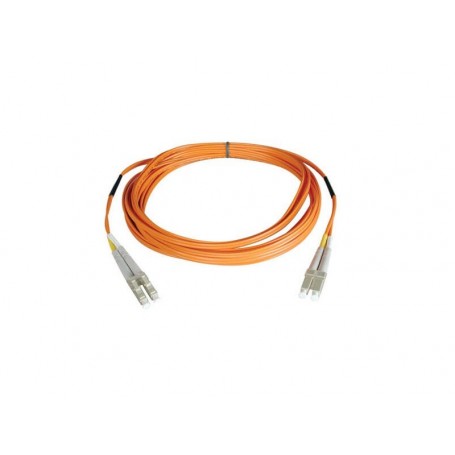

The Eaton N520-10M is a 10-meter duplex multimode 50/125 fiber-optic patch cable with LC duplex male connectors on both ends. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton documentation identifies the cable as a preterminated multimode fiber patch cable for fiber and Fiber Channel installations.
The cable uses 50/125 micron OM2 multimode fiber and is optimized for Gigabit and 10Gbps networking. It contains two glass fibers in a duplex configuration and is backward compatible with 62.5-micron fiber.
The N520-10M uses an orange LSZH/OFNR-rated jacket, LC duplex connectors with PC endface polish and a twin-zip/zipcord construction. Each connector is insertion-loss tested, with a typical insertion loss of 0.20 dB.
Key Features :
- 10 m (32.8 ft.) duplex multimode fiber patch cable
- 50/125 micron OM2 fiber
- LC duplex male connectors on both ends
- Two-fiber duplex construction
- Optimized for Gigabit and 10Gbps networks
- Backward compatible with 62.5-micron fiber
- Orange LSZH/OFNR cable jacket
- Twin-zip / zipcord construction
- PC endface polish
- Typical insertion loss of 0.20 dB
- 220 MHz-km minimum bandwidth at 850 nm
- 600 MHz-km minimum bandwidth at 1300 nm
- Suitable for fiber and Fiber Channel installations
- RoHS and REACH compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N520-10M |
| Product Type | Duplex multimode fiber patch cable |
| Fiber Type | 50/125 multimode |
| Optical Mode | OM2 |
| Cable Length | 10 m (32.8 ft.) |
| Number of Fibers | 2 |
| Connector A | LC Duplex Male |
| Connector B | LC Duplex Male |
| Fiber Construction | All-glass graded index |
| Cable Type | Twin Zip / Zipcord |
| Cable Jacket Color | Orange |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Connector Color | Gray |
| Endface Polish | PC |
| Core Diameter | 50 µm |
| Clad Diameter | 125 µm |
| Primary Coating Diameter | 245 µm |
| Secondary Coating Diameter | 900 µm |
| Bandwidth @ 850 nm | 220 MHz-km minimum |
| Bandwidth @ 1300 nm | 600 MHz-km minimum |
| Attenuation @ 850 nm | 3.0 dB/km |
| Attenuation @ 1300 nm | 1.0 dB/km maximum |
| Insertion Loss | ≤ 0.20 dB |
| Minimum Bend Radius | 20 mm dynamic / 10 mm static |
| Numerical Aperture | 0.275 nominal |
| Proof Test Level | 100,000 PSI |
| Network Compatibility | 1Gbps / 10Gbps / 25Gbps |
| Compliance | RoHS, REACH |
| UPC | 037332116970 |
