Detailed Specifications
Eaton N518-03M Duplex Multimode 50,125 Fiber Patch Cable Compatible Tripp Lite
Overview :
The Eaton N518-03M is a Duplex Multimode 50/125 Fiber Patch Cable with LC duplex-to-ST duplex connectors. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton's catalog identifies N518-03M as a Tripp Lite Series fiber patch cable.
The cable uses 50/125 µm multimode fiber with an OM2 optical mode and is designed for fiber and Fibre Channel installations. It provides bandwidth optimized for Gigabit and 10Gbps networks and is backward compatible with 62.5 µm multimode fiber.

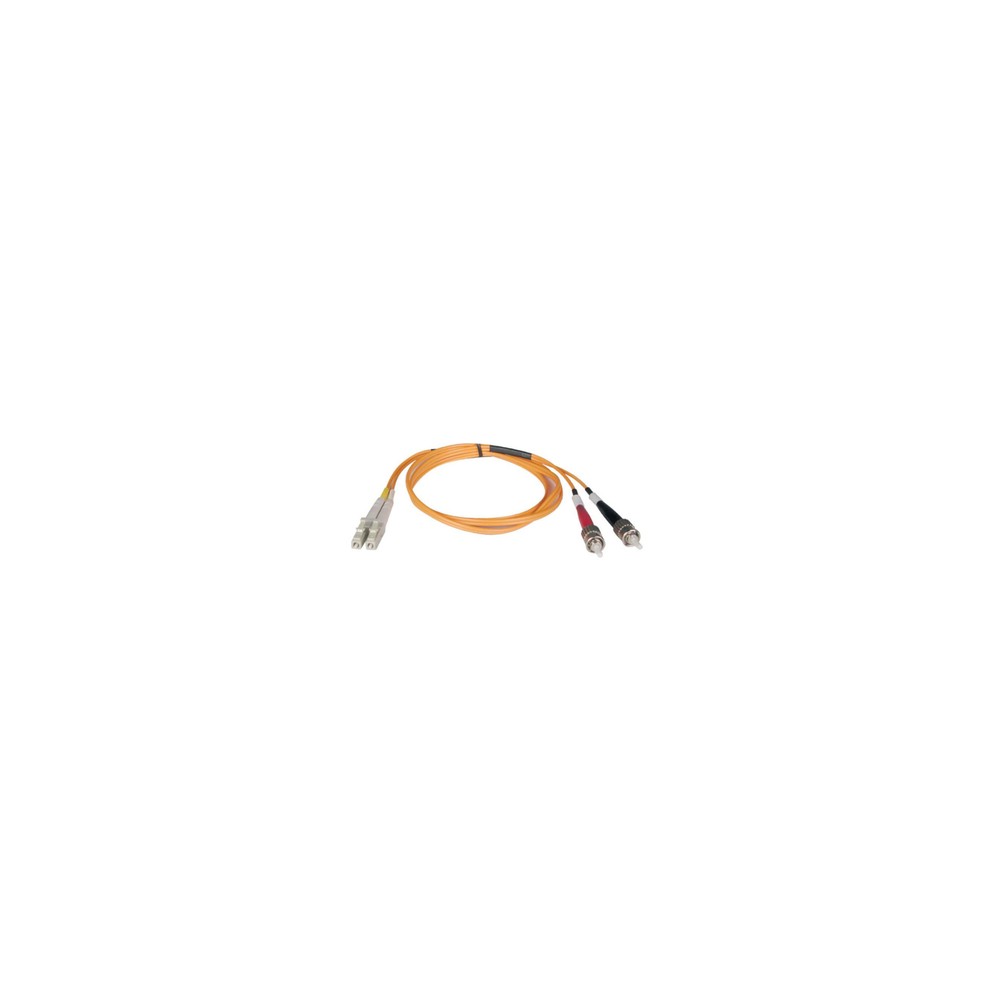

The N518-03M has LC duplex male connectors on one end and ST duplex male connectors on the other, with an orange jacket. The cable is specified with an LSZH jacket in Eaton's current catalog data and is rated OFNR.
Key Features :
- Duplex multimode 50/125 µm fiber patch cable
- OM2 optical mode
- 3 m (9.8 ft.) cable length
- LC duplex male to ST duplex male connectors
- Orange cable jacket
- 2-fiber construction
- Supports Gigabit and 10Gbps networks
- Backward compatible with 62.5 µm fiber
- Suitable for fiber and Fibre Channel installations
- PC endface polish
- 20 mm dynamic minimum bend radius
- 10 mm static minimum bend radius
- OFNR-rated cable
- RoHS and REACH compliant
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N518-03M |
| Product Type | Duplex Multimode Fiber Patch Cable |
| Product Family | Tripp Lite Series |
| Fiber Type | Multimode |
| Optical Mode | OM2 |
| Core / Cladding | 50/125 µm |
| Number of Fibers | 2 |
| Cable Length | 3 m (9.8 ft.) |
| Connector Configuration | LC Duplex Male to ST Duplex Male |
| Side A Connector | LC Duplex Male |
| Side B Connector | ST Duplex Male |
| Endface Polish | PC |
| Jacket Color | Orange |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Dynamic Minimum Bend Radius | 20 mm |
| Static Minimum Bend Radius | 10 mm |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps |
| Attenuation @ 850 nm | 3.0 dB/km |
| Insertion Loss | LC 0.20 dB; ST 0.20 dB |
| Push/Pull Tabs | No |
| Breakout | No |
| Trunk | No |
| Compliance | RoHS, REACH |
