Detailed Specifications

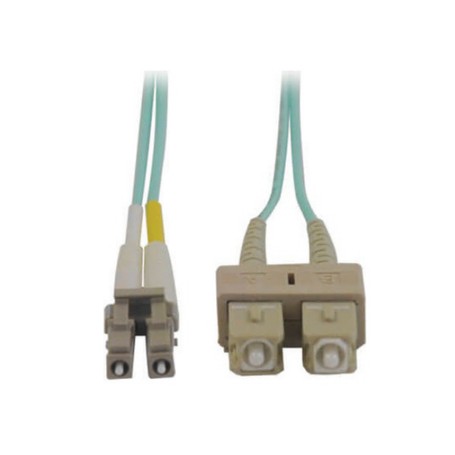

Eaton N816-02M 10Gb Duplex Multimode OM3 Fiber Patch Cable Compatible Tripp Lite
Overview :
The Eaton N816-02M is a 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable with SC duplex-to-LC duplex connectors. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton's catalog lists the N816 series under its OM3 multimode fiber patch cables.
The cable is designed for 10Gb Ethernet applications and uses 50/125 µm OM3 laser-optimized multimode fiber. It supports 10Gb transmission up to 300 meters at 850 nm in applicable systems and is backward compatible with existing 50/125 multimode fiber.

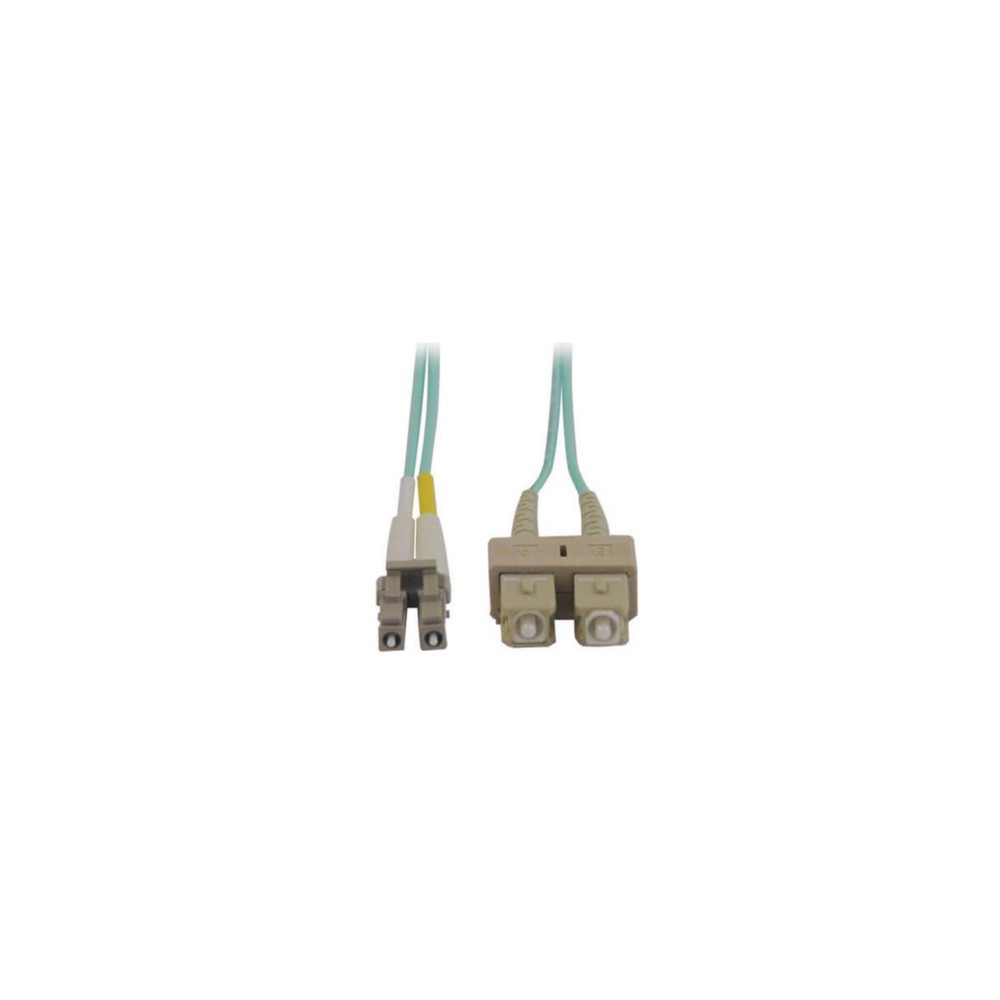

The N816-02M uses an aqua LSZH jacket and is suitable for LAN, SAN, data-center and high-speed interconnect deployments. The cable has SC duplex male connectors on one end and LC duplex male connectors on the other.
Key Features :
- 10Gb duplex multimode fiber patch cable
- OM3 50/125 µm laser-optimized multimode fiber
- 2 m (6.56 ft.) cable length
- SC duplex-to-LC duplex configuration
- Male connectors on both ends
- Aqua LSZH jacket
- Supports 10Gb Ethernet applications
- Maximum 10Gb distance of 300 m at 850 nm
- Backward compatible with existing 50/125 fiber
- Supports VCSEL and LED laser light sources
- Suitable for LAN and SAN applications
- Designed for data-center and high-speed interconnect deployments
- IEEE 802.3ae and TIA LOMMF compliant
- RoHS compliant
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N816-02M |
| Product Type | Duplex Multimode Fiber Patch Cable |
| Product Family | N816 Series |
| Fiber Type | Multimode |
| Optical Mode | OM3 |
| Core / Cladding | 50/125 µm |
| Cable Type | Duplex Fiber Patch Cable |
| Cable Length | 2 m (6.56 ft.) |
| Connector Configuration | SC Duplex Male to LC Duplex Male |
| Side A Connector | SC Duplex Male |
| Side B Connector | LC Duplex Male |
| Number of Fibers | 2 |
| Endface Polish | PC |
| Cable Jacket | LSZH |
| Jacket Color | Aqua |
| Maximum 10Gb Distance | 300 m @ 850 nm |
| Application | 10Gb Ethernet |
| Laser Source Compatibility | VCSEL and LED |
| Data Center Application | Yes |
| SAN Application | Yes |
| Standards | IEEE 802.3ae, TIA LOMMF |
| Compliance | RoHS |
