Detailed Specifications

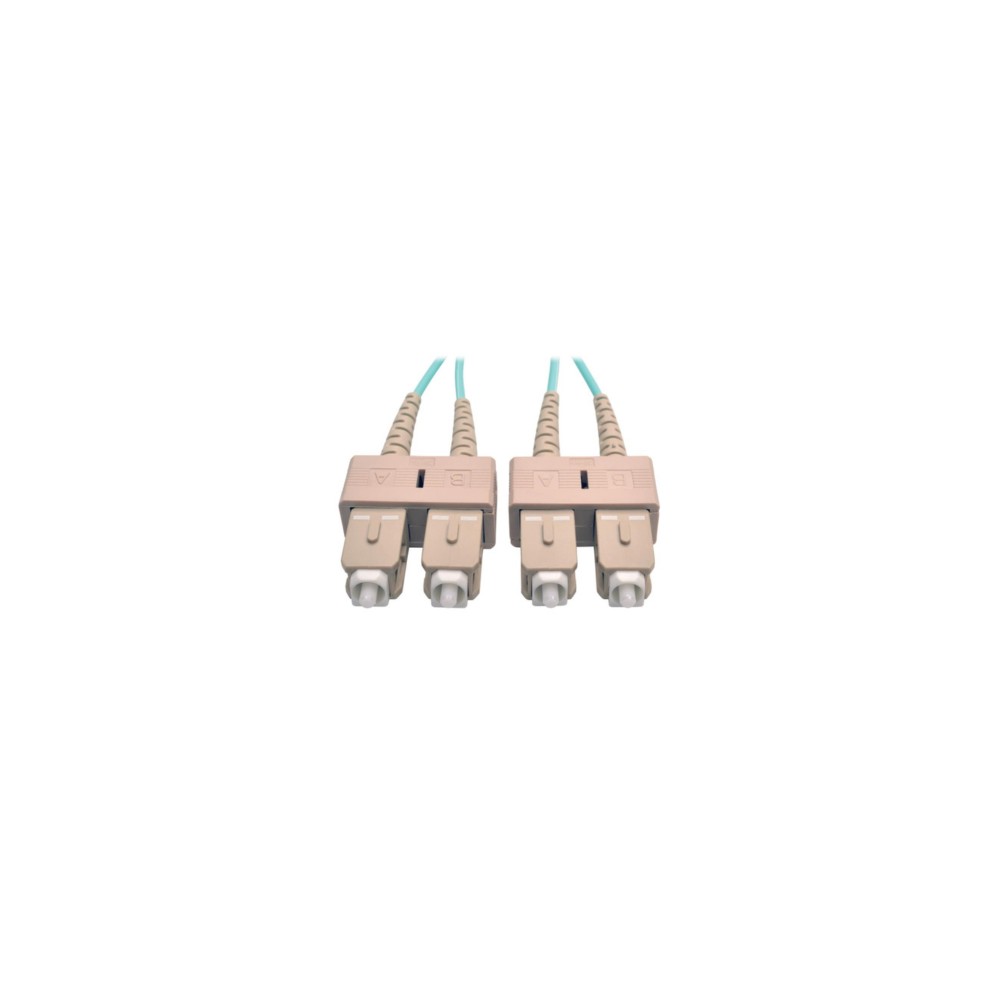

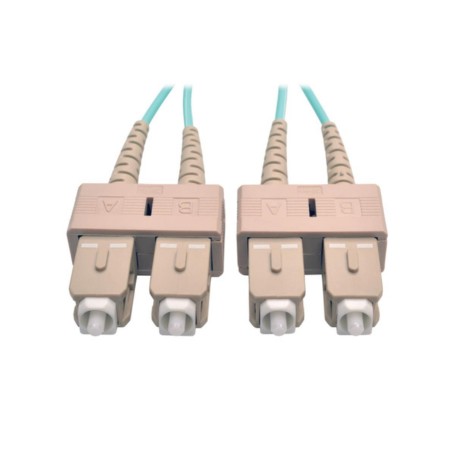

Eaton N806-02M 10Gb Duplex Multimode OM3 Fiber Patch Cable Compatible Tripp Lite
Overview :
The Eaton N806-02M is a 10Gb duplex multimode 50/125 OM3 LSZH fiber patch cable with SC duplex male connectors on both ends and a 2 m (6.6 ft) length. Eaton is the manufacturer/brand, while Tripp Lite is the compatible brand. Eaton's catalog identifies the N806-02M as part of the Tripp Lite Series.
The cable is designed for 10 Gigabit Ethernet applications and supports up to 300 m at 850 nm. It uses 50/125 µm OM3 multimode fiber, an aqua LSZH jacket and is suitable for data centers, server rooms and Fibre Channel/SAN applications.
Key Features :
- 10Gb OM3 multimode fiber patch cable
- 2 m (6.6 ft) length
- Duplex SC-to-SC configuration
- 50/125 µm multimode fiber
- OM3 optical mode
- Aqua LSZH jacket
- Low-smoke, zero-halogen construction
- Supports 10Gb Ethernet
- Up to 300 m at 850 nm
- Backward compatible with existing 50/125 fiber
- Suitable for Fibre Channel/SAN applications
- IEEE 802.3ae and TIA LOMMF compliant
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N806-02M |
| Product Type | Duplex Multimode Fiber Patch Cable |
| Fiber Type | Multimode |
| Optical Mode | OM3 |
| Core/Cladding | 50/125 µm |
| Number of Fibers | 2 |
| Cable Length | 2 m (6.6 ft) |
| Cable Type | Duplex |
| Connector A | 2 × SC Duplex Male |
| Connector B | 2 × SC Duplex Male |
| Cable Jacket Color | Aqua |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Endface Polish | PC |
| Network Speed | 10 Gbps |
| Maximum 10Gb Distance | 300 m @ 850 nm |
| Standards | IEEE 802.3ae, TIA LOMMF |
