Detailed Specifications

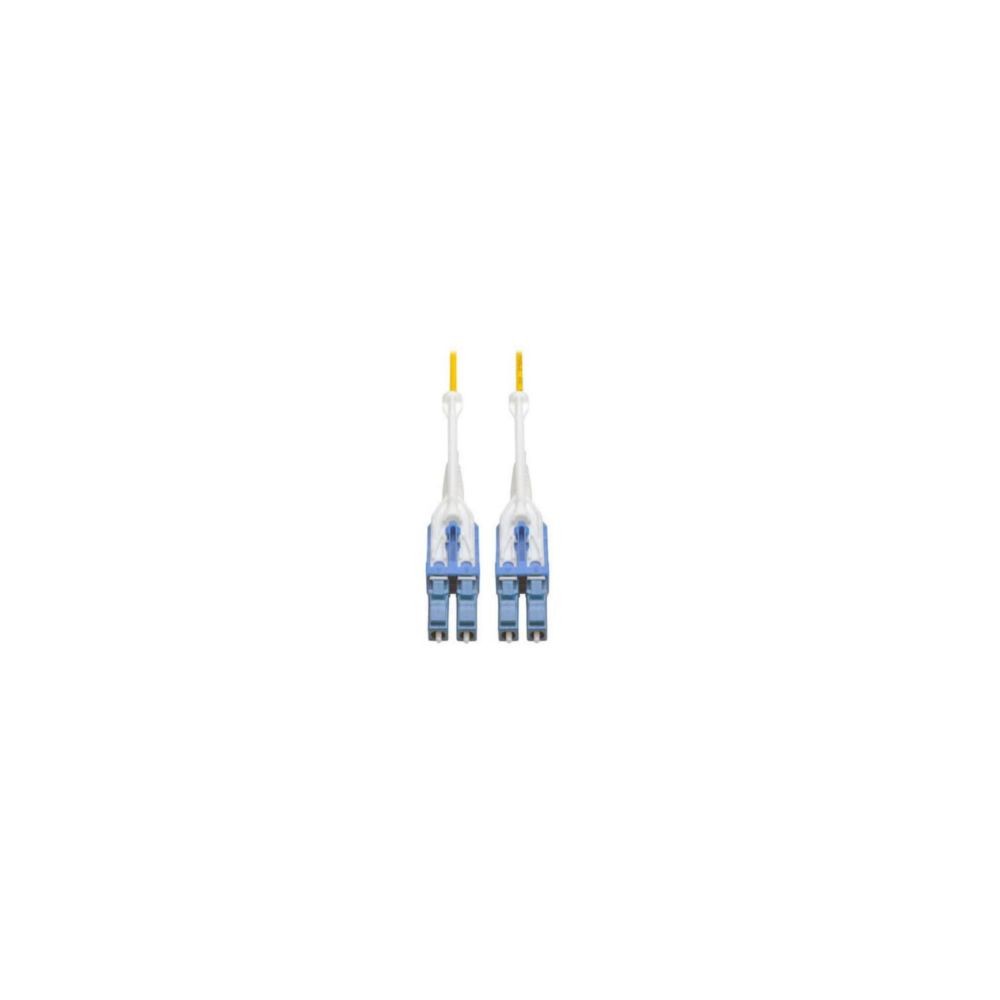

Eaton N370-01M-T Tripp Lite 1 m Duplex Single mode Fiber Patch Cable
Overview
The Eaton N370-01M-T is a Tripp Lite by Eaton duplex singlemode 9/125 fiber optic patch cable with LC duplex male connectors and push/pull tabs. It is designed for connecting compatible fiber-optic network equipment, patch panels, switches, NICs, and other singlemode infrastructure. Eaton identifies the product as a Tripp Lite series preterminated fiber patch cable.
The Tripp Lite N370-01M-T uses duplex 9/125 µm glass fiber with OS2 optical mode and a 1 m (3.3 ft.) cable length. It supports data transmission up to 10 Gbps and uses push/pull LC connectors that are practical for high-density data-center patching.
The cable has a yellow LSZH jacket with an OFNR rating, helping identify the cable as singlemode while supporting appropriate structured-fiber deployments. The manufacturer specifies UPC endface polishing and a maximum insertion loss of ≤0.30 dB.
Key Features
- Tripp Lite by Eaton duplex singlemode 9/125 fiber patch cable
- 1 m (3.3 ft.) length with LC duplex male-to-male connectors
- Supports network data rates up to 10 Gbps
- OS2 9/125 µm glass fiber with UPC-polished endfaces
- Push/pull LC connectors designed for convenient installation in high-density racks
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | N370-01M-T |
| Product Type | Tripp Lite Duplex Singlemode Fiber Patch Cable |
| Fiber Type | Singlemode |
| Optical Mode | OS2 |
| Core / Cladding | 9/125 µm |
| Number of Fibers | 2 |
| Cable Configuration | Duplex Zipcord |
| Connector A | LC Duplex Male |
| Connector B | LC Duplex Male |
| Cable Length | 1 m (3.3 ft.) |
| Maximum Data Rate | 10 Gbps |
| Cable Jacket Color | Yellow |
| Jacket Material | LSZH |
| Jacket Rating | OFNR |
| Endface Polish | UPC |
| Maximum Insertion Loss | ≤0.30 dB |
| Minimum Bend Radius | 20 mm Dynamic / 10 mm Static |
| Attenuation at 1310 nm | 0.36 dB/km |
| Attenuation at 1550 nm | 0.22 dB/km |
| Operating Temperature | -20°C to 60°C |
