Detailed Specifications
Eaton N821-08M-MG-T 10G Duplex Multimode Fiber Optic Cable Compatible Tripp Lite
Overview :

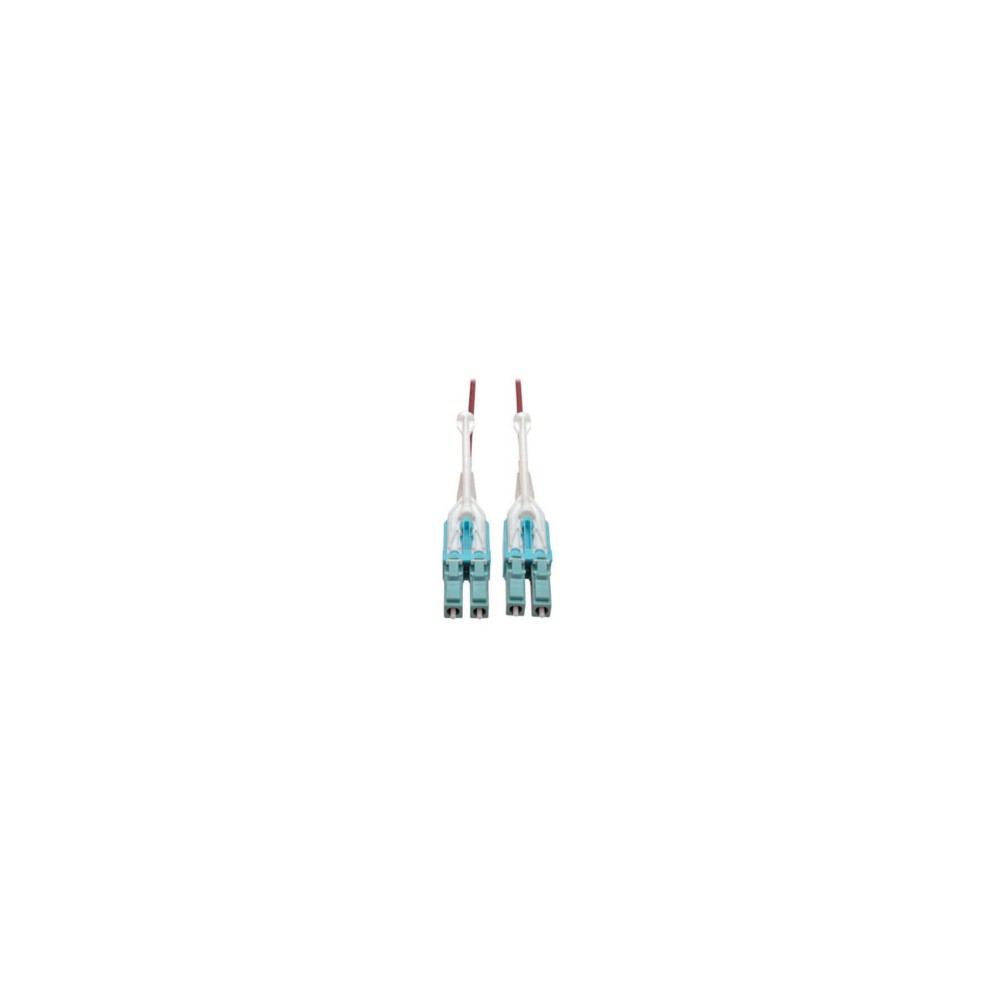

The Eaton N821-08M-MG-T is a 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable with LC/LC connectors and push/pull tabs. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton's catalog identifies the N821 series as Tripp Lite OM4 multimode fiber patch cables.
The cable uses 50/125 µm OM4 multimode fiber and is designed for 10 Gb Ethernet applications up to 400 m at 850 nm. It is suitable for LANs, SANs, network closets, server rooms and data centers.
The N821-08M-MG-T features duplex LC male-to-LC male connectors with push/pull tabs, premium ceramic ferrules and a slim uniboot design. Its magenta jacket provides quick visual identification of OM4 fiber, while the LSZH jacket is suitable for applications where low-smoke, zero-halogen cabling is preferred.
Key Features :
- 8 m (26 ft.) OM4 multimode fiber patch cable
- Duplex 50/125 µm multimode fiber
- LC duplex male-to-LC duplex male connectors
- Push/pull tabs for easy installation and removal
- Supports 10 Gb Ethernet applications up to 400 m at 850 nm
- OM4 laser-optimized multimode fiber
- Premium-grade ceramic ferrules
- Slim, space-saving uniboot design
- LSZH cable jacket
- Magenta jacket for OM4 identification
- Backward compatible with existing 50/125 µm multimode fiber
- Suitable for LAN, SAN and data-center applications
- RoHS compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N821-08M-MG-T |
| Product Type | OM4 Multimode Fiber Patch Cable |
| Cable Length | 8 m (26 ft.) |
| Fiber Type | Multimode |
| Fiber Specification | 50/125 µm |
| Fiber Grade | OM4 |
| Connector A | LC Duplex Male |
| Connector B | LC Duplex Male |
| Connector Configuration | Duplex LC-to-LC |
| Connector Style | Push/Pull Tab |
| Number of Fibers | 2 |
| Cable Jacket | LSZH |
| Cable Jacket Color | Magenta |
| Endface Polish | PC |
| Maximum Application | 10 Gb Ethernet |
| Maximum Distance | Up to 400 m @ 850 nm |
| Ferrule Material | Ceramic |
| Cable Design | Slim Uniboot |
| Compatible Light Sources | VCSEL and LED lasers |
