Detailed Specifications

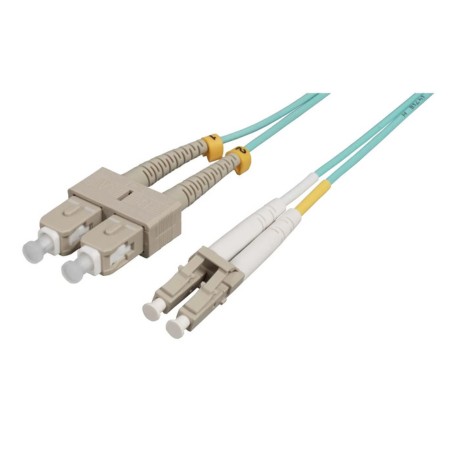

Intellinet 752350 1 m LC to SC UPC OM4 Duplex Fiber Patch Cable
Overview :
Engineered for network administrators and data center procurement teams, this bend-insensitive multimode fiber patch cable resolves signal attenuation bottlenecks in high-density cross-connect and equipment distribution frameworks. It delivers ultra-low-loss data transmission across short-to-medium-range enterprise links.
Constructed with Corning 50/125 micron ultra-pure glass and dual duplex 2.0 mm outer jackets, it supports high-speed data delivery up to 40G Ethernet and beyond.Precision-polished Ultra Physical Contact (UPC) ceramic connectors ensure optimized return loss performance across intense telecommunication runs.
Designed for standard enterprise telecommunications rooms, main distribution frames, data center rack arrays, and high-performance server connections.The riser-rated (OFNR) aqua jacket configuration complies with internal building safety codes while allowing tight radius bends without inducing macrobending loss.
Fully compatible with OM4 and OM3 multimode structured cabling layouts, 850nm/1310nm transceivers, and high-speed switches. Do not use for long-distance single-mode outside plant runs or single-mode transceiver interfaces requiring 9/125 micron core dimensions.
Key Features :
Premium OM4 50/125 micron multimode Corning glass core
LC UPC duplex to SC UPC duplex precision connectors
Bend-insensitive fiber design prevents signal loss
Riser-rated (OFNR) aqua jacket for indoor pathways
Optimized for 10G, 40G, and 100G Ethernet networks
Specifications :
| Specification | Value |
| Brand | Intellinet |
| Part Number | 752350 |
| Product Type | 1m OM4 LC-to-SC Fiber Patch Cable |
| Fiber Mode | Multimode OM4 (50/125 µm) |
| Connector A | LC UPC Duplex |
| Connector B | SC UPC Duplex |
| Cable Length | 3.3 feet (1.0 meter) |
| Outer Diameter | 2.0 mm |
| Jacket Material | Riser Rated OFNR (Aqua) |
| Insertion Loss | $le 0.2 text{ dB}$ |
| Return Loss | $ge 20 text{ dB}$ |
| Minimum Bend Radius | 45 mm |
| Operating Temperature | -20 to 75 °C |
| Compliance | ISO/IEC 11801, TIA-568.3-D, RoHS |
