Detailed Specifications

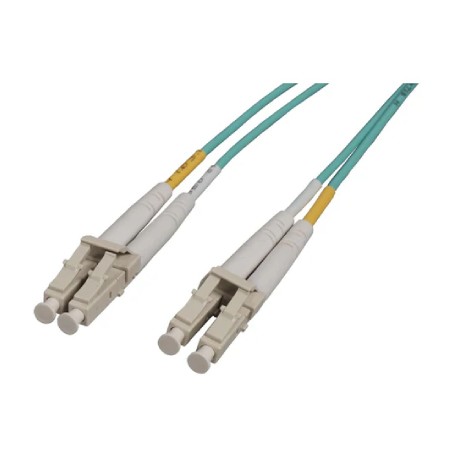

INTELLINET 752305 - Fiber Optic Patch Cable
Overview :
Engineered for high-speed data transmission in enterprise networks and data centers, this OM4 multimode fiber patch cable delivers reliable optical performance across high-bandwidth backbone links. Built for network architects and infrastructure deployment engineers, it resolves signal attenuation and tight-space routing challenges, ensuring stable throughput under demanding loads.
Constructed with bend-insensitive multimode fiber (BIMMF) and high-purity Corning glass, it supports 40G Ethernet applications and beyond while minimizing insertion loss. The violet OFNR-rated riser jacket provides distinct visual separation for structured cabling categorization.
Optimized for cross-connect and interconnect applications in enterprise server racks, distribution frames, and telecommunications rooms. It routes smoothly between high-density switches and patch panels without performance degradation.
Fully compatible with standard LC duplex multimode optical transceivers. Do not deploy in singlemode infrastructure or exceed the 45mm minimum bend radius parameters to prevent physical micro-bending signal loss.
Key Features :
OM4 multimode fiber supports 40G Ethernet links
LC-UPC duplex connectors ensure low insertion loss
Bend-insensitive glass prevents attenuation from tight routing
10-meter length accommodates extended rack layouts
Violet riser-rated jacket satisfies building codes
Specifications :
| Specification | Detail |
| Brand | Intellinet |
| Part Number | 752305 |
| Product Type | Fiber Optic Patch Cable |
| Cable Type | OM4 Multimode Duplex (50/125 µm) |
| Length | 10.0 m (32.8 ft) |
| Connector 1 | LC/UPC Duplex |
| Connector 2 | LC/UPC Duplex |
| Cable Diameter | 2.0 mm |
| Insertion Loss | <= 0.20 dB |
| Return Loss | >= 20 dB |
| Jacket Rating | OFNR / Riser (Violet) |
| Operating Temperature | -20°C to 75°C |
