Detailed Specifications

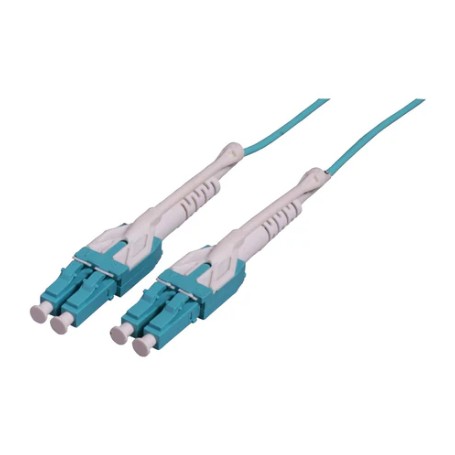

Intellinet 752565 2 m LC to LC UPC OM4 Multimode Fiber Optic Patch Cable
Overview :
Engineered for high-speed enterprise networks and data center backbones, this OM4 multimode fiber optic patch cable provides ultra-low signal loss and high bandwidth capacity between switches, routers, and high-density distribution frames. Network administrators and fiber technicians deploy it for rigorous short-to-medium-range connections supporting 10G, 40G, and 100G Ethernet applications.
The cable features precision LC UPC duplex connectors on both ends attached to 50/125 µm bend-insensitive multimode fiber (BIMMF) manufactured from ultra-pure Corning optical glass. Its flame-retardant OFNR-rated violet jacket ensures safety compliance for vertical riser pathways, while superior optical geometry minimizes attenuation under tight twists or bends.
Designed for indoor data centers, telecommunications rooms, entrance facilities, and workstation desk connections.
Compatibility covers all standard multimode optical transceivers and adapters utilizing LC interfaces. Do not use this OM4 multimode fiber cable with singlemode (OS2) network hardware ports, as core size mismatches will cause severe optical signal attenuation.
Key Features :
Premium 50/125 µm bend-insensitive multimode OM4 Corning glass fiber
LC UPC duplex to LC UPC duplex connector configuration
Flame-retardant OFNR riser-rated violet outer jacket
Supports high-speed 10G, 40G, and 100G Ethernet transmissions
Each cable includes an individual factory optical test report
Specifications :
| Specification | Detail |
| Brand | Intellinet Network Solutions |
| Part Number | 752565 |
| Product Type | LC to LC UPC OM4 Multimode Fiber Patch Cable |
| Capacity / Power | Multimode 50/125 µm OM4 |
| Interfaces / Ports | LC UPC Duplex Male to LC UPC Duplex Male |
| Form Factor | 2.0 Meter (6.6 ft.) Patch Cord (Violet) |
| Compatibility | Standard Multimode Fiber Optic Hardware |
| Environmental | Operating Temp: -20°C to 75°C (-4°F to 167°F) |
| Cable Diameter | 2.0 mm Outer Jacket |
| Jacket Material / Rating | OFNR (Riser Rated) / PVC |
| Certifications | RoHS, REACH, ITU-T G.657 / ISO/IEC 11801 |
