Detailed Specifications

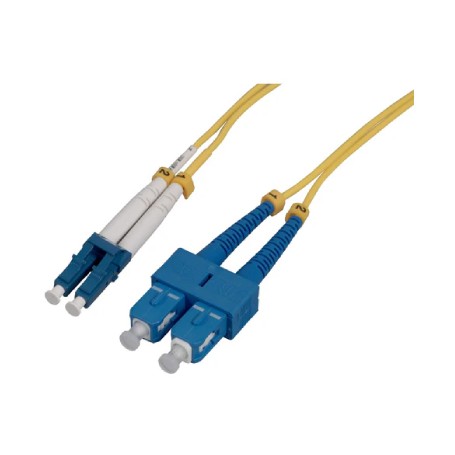

INTELLINET 760775 Fiber Optic Patch Cable
Overview :
The INTELLINET 760775 is an OS2 single-mode duplex fiber optic patch cable engineered for reliable optical network interconnections in enterprise and data center environments. It features LC/UPC to SC/UPC duplex connectors and is designed for high-performance cross-connect and interconnect applications.
Constructed with 9/125 µm G.657.A1 bend-insensitive fiber, the cable delivers low insertion loss and high optical performance for long-distance single-mode links. It supports modern high-bandwidth optical networks, including 40 Gigabit Ethernet deployments where low attenuation and signal integrity are essential.
The cable incorporates a 2.0 mm yellow OFNR-rated riser jacket for indoor structured cabling installations. It is suitable for deployment in telecommunications rooms, equipment racks, campus backbones, and enterprise data centers requiring dependable fiber connectivity.
This patch cable is compatible with equipment using duplex LC/UPC and SC/UPC single-mode interfaces. It is not intended for multimode fiber installations or APC connector applications.
Key Features :
- OS2 9/125 µm single-mode duplex fiber
- LC/UPC to SC/UPC duplex connectors
- G.657.A1 bend-insensitive optical fiber
- OFNR-rated 2.0 mm indoor cable jacket
- Low insertion loss for stable optical links
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 760775 |
| Product Type | Fiber Optic Patch Cable |
| Fiber Type | OS2 Single-Mode, 9/125 µm |
| Connector A | LC/UPC Duplex |
| Connector B | SC/UPC Duplex |
| Cable Length | 7 m (23 ft) |
| Cable Diameter | 2.0 mm |
| Fiber Standard | G.657.A1 Bend-Insensitive |
| Jacket Rating | OFNR (Riser) |
| Cable Color | Yellow |
| Insertion Loss | 0.20 dB Typical, 0.30 dB Maximum |
| Return Loss | 55 dB |
| Typical Applications | Data centers, telecom rooms, enterprise networks |
