Detailed Specifications

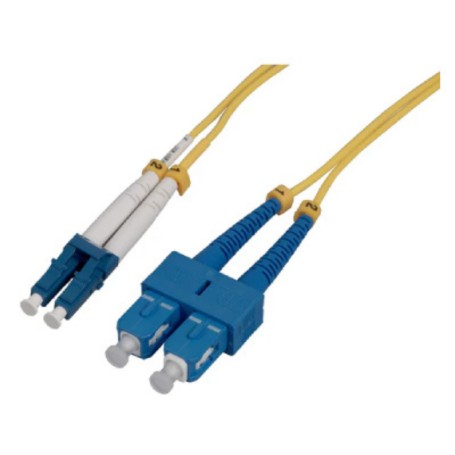

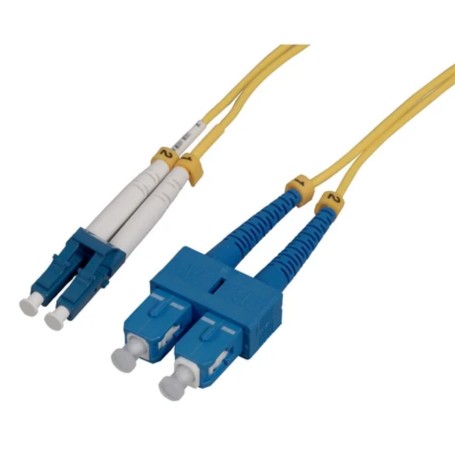

INTELLINET 760782 Fiber Optic Patch Cable
Overview :
The INTELLINET 760782 is an OS2 single-mode duplex fiber optic patch cable designed for high-speed optical network interconnections. It features LC/UPC to SC/UPC duplex connectors and is intended for structured cabling, telecommunications rooms, enterprise networks, and data center cross-connect applications.
Built with 9/125 µm bend-insensitive G.657.A1 fiber, the cable supports low insertion loss, low attenuation, and reliable signal transmission for long-distance optical links. It is suitable for modern optical infrastructures supporting high-bandwidth Ethernet deployments, including 40 Gigabit Ethernet environments.
The OFNR-rated 2.0 mm yellow jacket is intended for indoor riser installations. This cable is commonly deployed in server racks, telecommunications closets, campus networks, and enterprise data centers where LC and SC duplex interfaces are required.
Use this cable only with single-mode OS2 fiber equipment utilizing LC/UPC and SC/UPC duplex interfaces. It is not suitable for multimode fiber systems or connectors with different polishing standards.
Key Features :
- OS2 9/125 µm single-mode duplex fiber
- LC/UPC to SC/UPC duplex connectivity
- Bend-insensitive G.657.A1 optical fiber
- OFNR riser-rated 2.0 mm cable jacket
- Low insertion loss for optical networks
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 760782 |
| Product Type | Fiber Optic Patch Cable |
| Fiber Type | OS2 Single-Mode, 9/125 µm |
| Connector A | LC/UPC Duplex |
| Connector B | SC/UPC Duplex |
| Cable Length | 8 m (26.2 ft) |
| Cable Diameter | 2.0 mm |
| Fiber Standard | G.657.A1 Bend Insensitive |
| Jacket Rating | OFNR (Riser) |
| Cable Color | Yellow |
| Insertion Loss | 0.20 dB Typical, 0.30 dB Maximum |
| Return Loss | 55 dB |
| Operating Temperature | -40°C to 85°C |
| Typical Applications | Data centers, telecom rooms, enterprise optical networks |
