INTELLINET 751452 - OM3 Multimode Fiber Patch Cable

Overview :

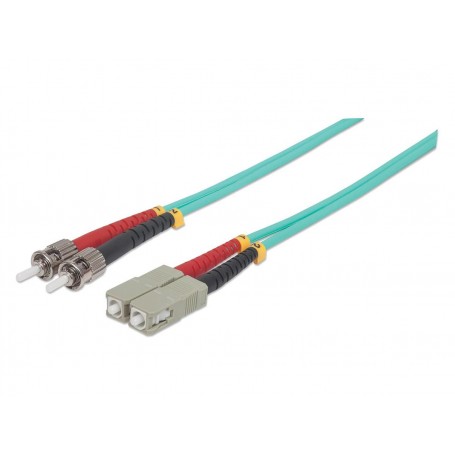

The INTELLINET 751452 is a 5-meter (14 ft) OM3 50/125 micron multimode duplex fiber optic patch cable built for high-speed local area networks and data center backbones. It is utilized by network systems engineers and IT deployment specialists to connect fiber-enabled switches, transceivers, and patch panels. The unit solves the challenge of bridging ST-terminated hardware interfaces with SC-based optical ports over extended medium-range indoor pathways while maximizing bandwidth capacity.

Technically, the cable features ceramic ferrule connectors with Ultra Physical Contact (UPC) polishing to minimize insertion loss ($le 0.25$ dB) and maximize return loss ($ge 35$ dB).It supports 10-Gigabit Ethernet applications and is encased in an aqua-colored Low Smoke Zero Halogen (LSZH) jacket that reduces toxic emissions in the event of fire.

Deployment is optimized for enterprise telecommunication rooms, structured data center racks, and internal network backbones.Compatibility spans standard OM3 laser-optimized multimode transceivers, media converters, and network hardware featuring ST and SC ports.However, this cable is engineered specifically for indoor optical pathways and must not be installed in harsh outdoor environments or subjected to tight bend radii below its 15 mm specification limit.

Key Features :

• OM3 50/125 micron multimode fiber optimized for 10GbE

• ST male to SC male connectors with UPC polishing

• Low Smoke Zero Halogen (LSZH) aqua jacket for safety

• Precision ceramic ferrules ensure minimal insertion loss ($le 0.25$ dB)

• Duplex cable configuration supports simultaneous bidirectional transmission
