Detailed Specifications

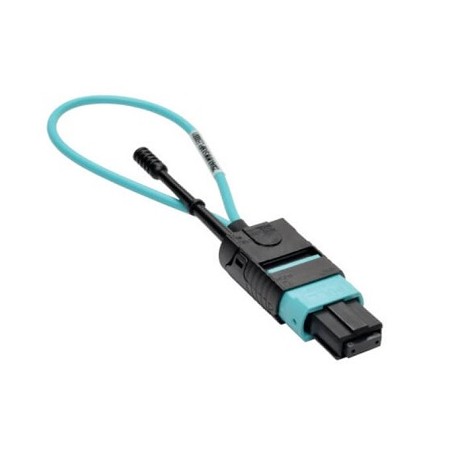

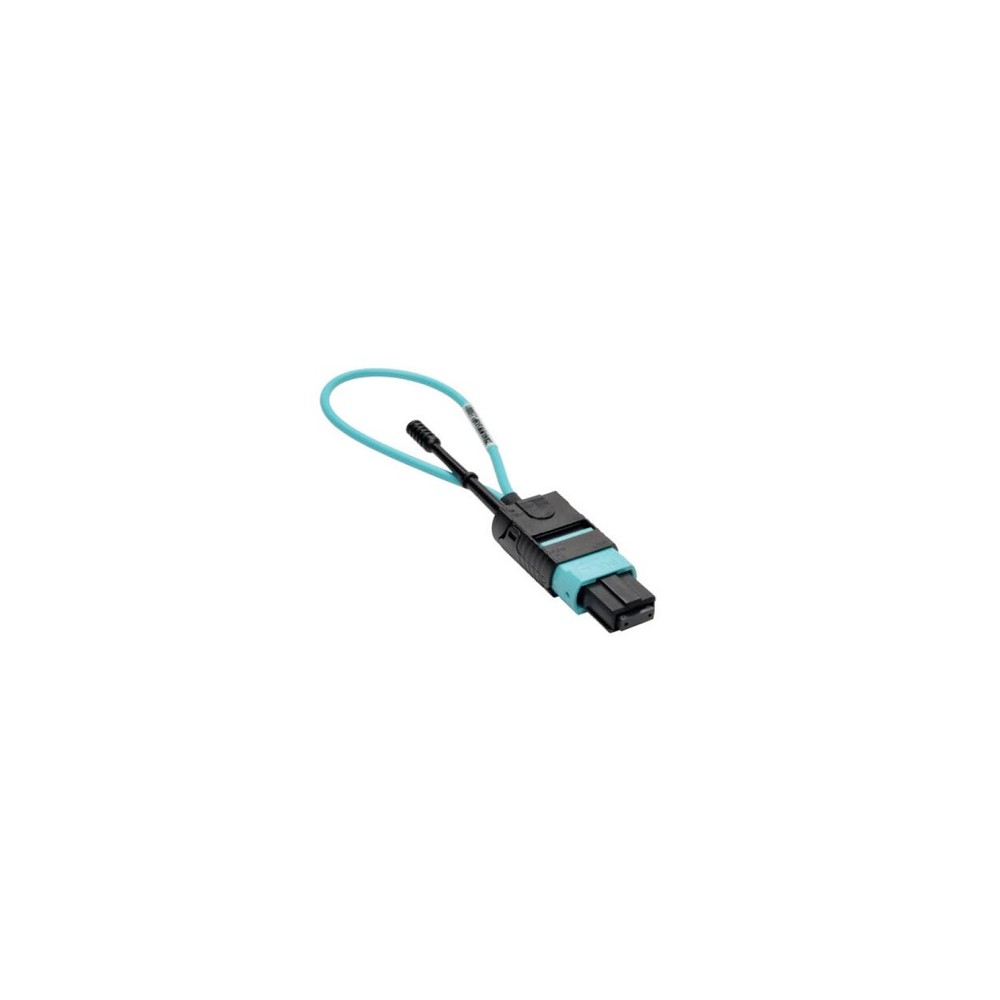

EATON N844-LOOP-12F MTP MPO OM3 Fiber Optic Loopback Tester Compatible Tripp Lite
Overview
The EATON N844-LOOP-12F is a Tripp Lite Series MTP/MPO Fiber Optic Loopback Tester designed for test and measurement procedures in networking environments. It uses 50/125 µm OM3 multimode fiber and provides a 12-fiber MTP/MPO female-to-female loopback connection.
The loopback tester is suitable for networking hardware with MTP/MPO ports and is designed for applications including optical testing of 40GbE QSFP+ connections. It features push-pull tabs for quick disconnection and includes a protective dust cover for storage.
Key Features
- MTP/MPO OM3 fiber optic loopback tester
- 50/125 µm multimode fiber
- 12-fiber configuration
- Female MTP/MPO connectors
- Designed for 40GbE QSFP+ optical testing
- 4-inch overall length
- Push-pull tabs for quick disconnect
- Protective dust cover included
- Aqua cable/jacket color
- Pin configuration: 1-12, 2-11, 3-10, 4-9, 5-8, 6-7
- Lifetime limited worldwide warranty
Specifications
| Specification | Details |
|---|
| Manufacturer | EATON |
| Compatible Brand | Tripp Lite |
| Part Number | N844-LOOP-12F |
| Product Type | MTP/MPO Fiber Optic Loopback Tester |
| Technology | Multimode |
| Optical Mode | OM3 |
| Fiber Count | 12 |
| Fiber Type | 50/125 µm Multimode |
| Connector A | 12-fiber MTP/MPO Female |
| Connector B | 12-fiber MTP/MPO Female |
| Endface Polish | PC |
| Cable Length | 4 in / 0.1 m |
| Wavelength | 850 nm / 1300 nm |
| Attenuation @ 850 nm | 2.5 dB/km |
| Attenuation @ 1300 nm | 0.7 dB/km |
| Pin Configuration | 1-12, 2-11, 3-10, 4-9, 5-8, 6-7 |
| Push-Pull Tabs | Yes |
| Jacket Color | Aqua |
| Core Diameter | 50 µm |
| Clad Diameter | 125 µm |
